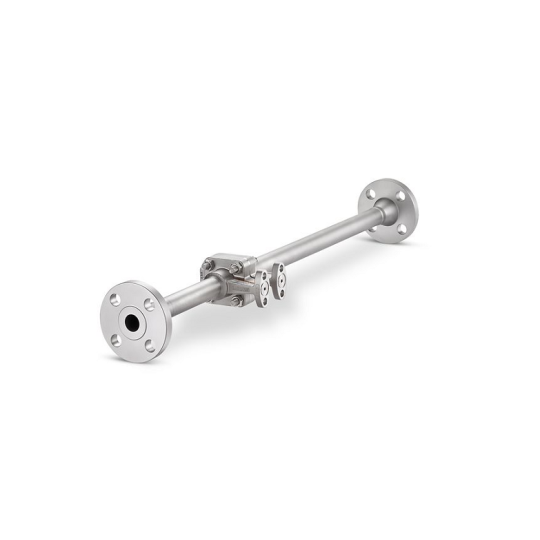

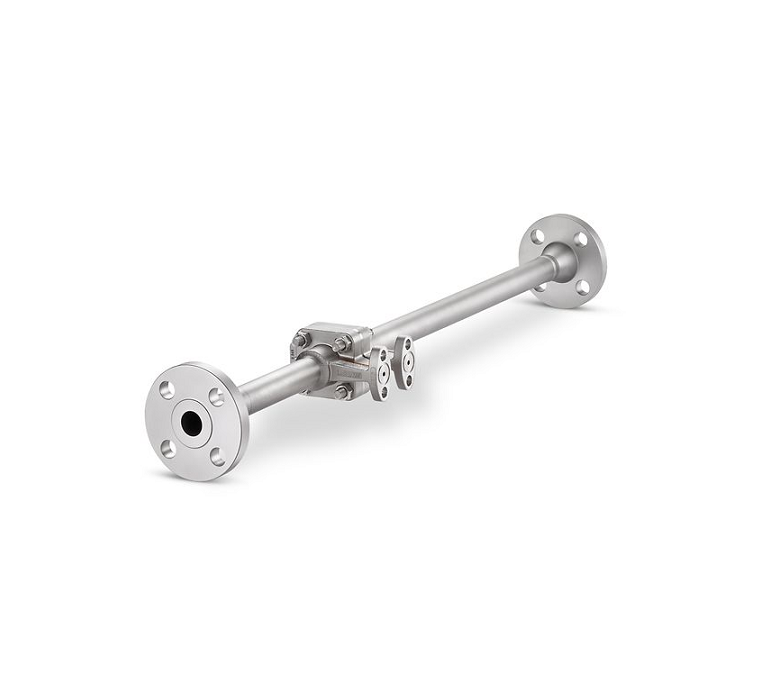

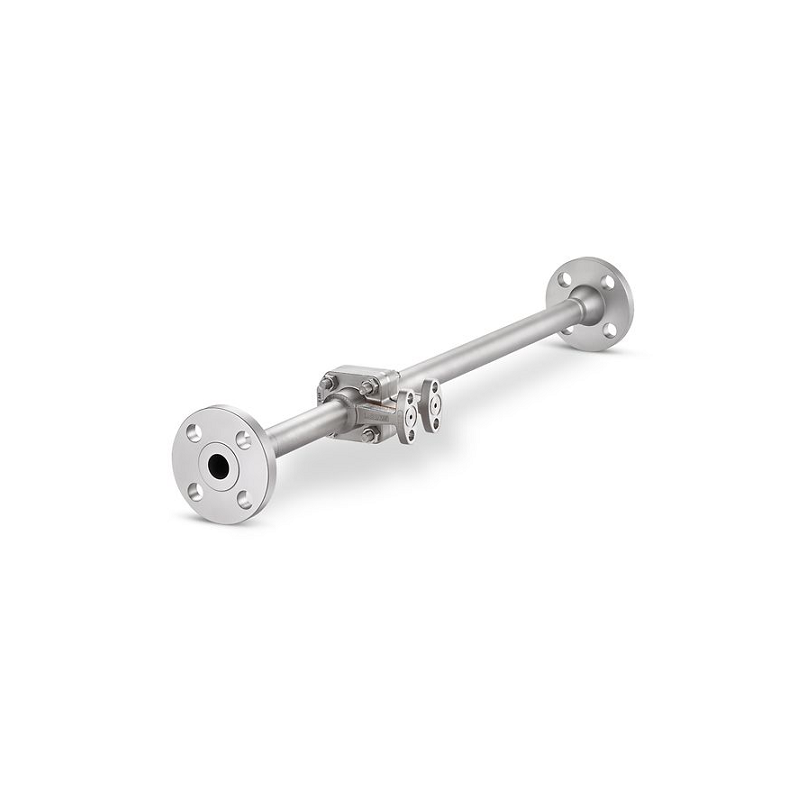

Rosemount 1195 Integral Orifice Primary Element

Product Description

The Rosemount 1195 Integral Orifice Primary Element is engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). The primary element is provided in a meter run for easy installation and is suitable for flow measurements of gas, liquid or steam. This product utilizes a self-centering orifice plate to prevent installation error and it can be ordered as a completely assembled flowmeter or as an assembled-to product.

Specifications

* Max. Operating Pressure: ANSI B16.5 900#

* Process Temperature Range: -112 to 850 °F (-80 to 454 °C)

* Fluid Type: Liquid, gas, steam

* Process Wetted Material: 316 SST

* Warranty: Up to 5-year limited warranty

Features

• Primary element integrated in a meter run for ease of installation

• Available to order pre-assembled with a transmitter for a complete flow assembly

• Suitable for small line sizes 0.5 - 1.5 in. (15 - 40 mm) for optimal flow measurement accuracy and repeatability

• Self-centering orifice plate prevents installation error to ensure best-possible performance

• Directly mounts to any Rosemount DP transmitter and offers a range of process connections for application flexibility
