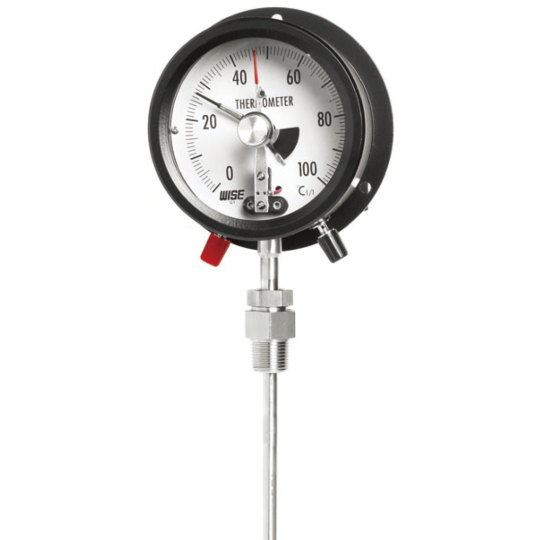

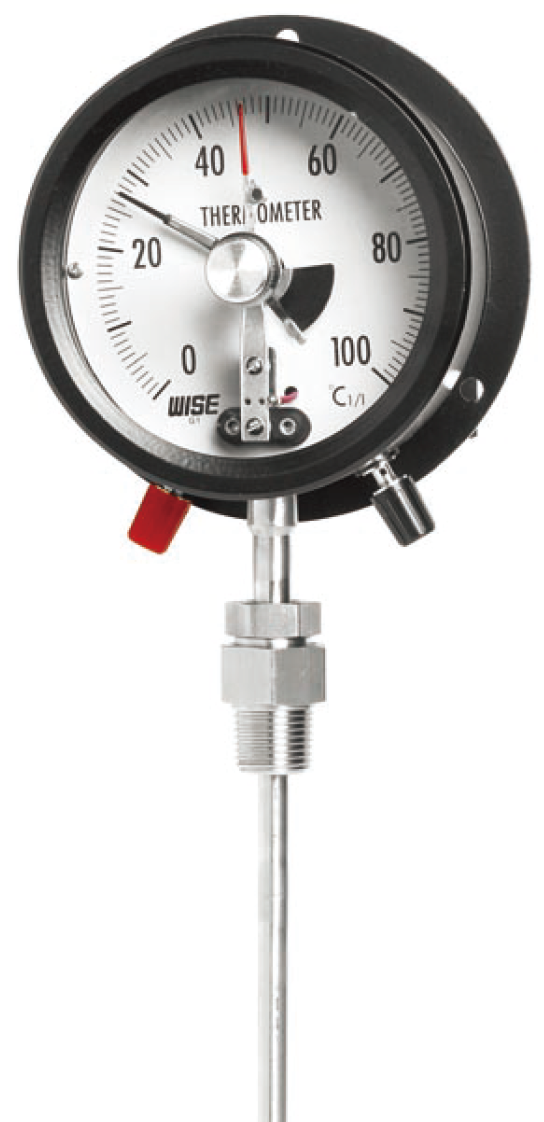

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T721, T722, T723, T724

Nominal diameter: 100 mm
Accuracy: ±2.0% of full scale
Measuring system (SAMA class ⅢB):
     Organic gas : 0 ~ 200°C
     Inert gas : -200 ~ 700°C
Working range: Maximum scale value
Location of stem:
     Bottom connection, surface, case mounting
     Lower back connection, direct
Case: Black finished aluminium
Cover: Black finished aluminium
Capillary: 1.6/0.2 mm, 316SS
Armored tube: 7.5/5.5 mm, 304SS
Window: Acrylic
Dial: White aluminium with black graduation
Contacts:
     Maximum voltage : 250 V AC
     Contact rating : AC 220 V, 0.25 A
     DC 100 V, 0.5 A
     With max. no of contact : 2 sets per gauge
Pointer: Black finished aluminium
Stem: 8.0, 10.0 and 12.0 mm
     316SS and 316L SS
Stem, process connection: 3/8", 1/2", 3/4" PT, NPT and PF
Optional: ±1.0% of full scale
