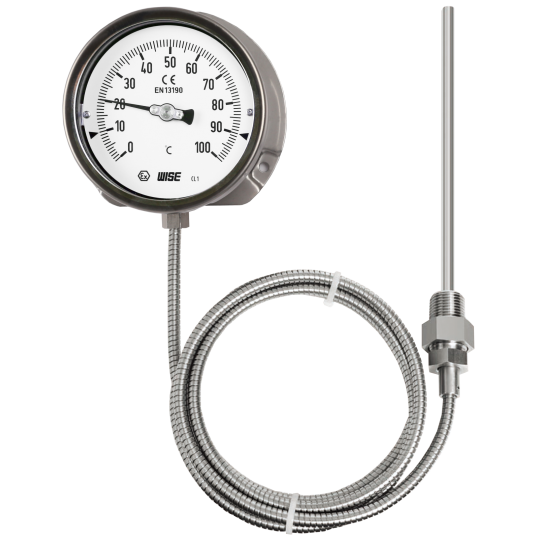

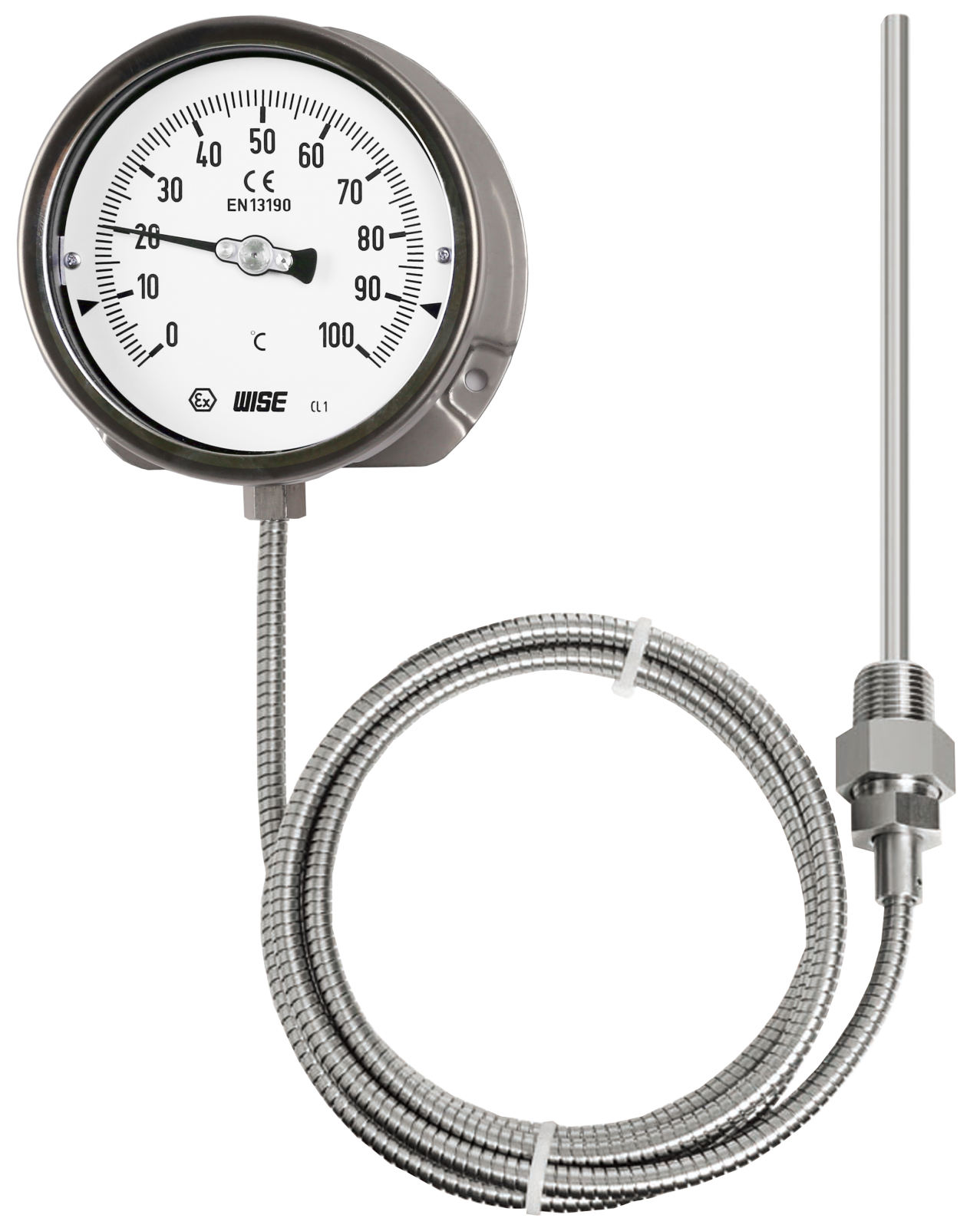

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T210

Nominal diameter: 100 and 150 mm
Accuracy: ±2.0% of full scale
Measuring system (SAMA class ⅢB):
      Organic gas : 0 ~ 200°C
      Inert gas : -200 ~ 700°C
Measuring system (SAMA class ⅢB):
      Organic gas : 0 ~ 200°C
      Inert gas : -200 ~ 700°C
Location of stem and mounting:
      Bottom connection, surface, case mounting
      Lower back connection, flush, case center mounting
Case: 304SS
Cover: 304SS
Capillary: 1.6/0.2 mm, 316SS
Armored tube: 7.5/5.5 mm, 304SS
Window: Tempered safety glass
Dial: White aluminium with black graduation
Pointer: 304SS, Black painted
Stem: 8.0, 10.0 and 12.0 mm
     316SS and 316L SS
Zero adjustment: Internal
Stem, process connection: 3/8", 1/2", 3/4" PT, NPT and PF
Option: ±1.0% of full scale
