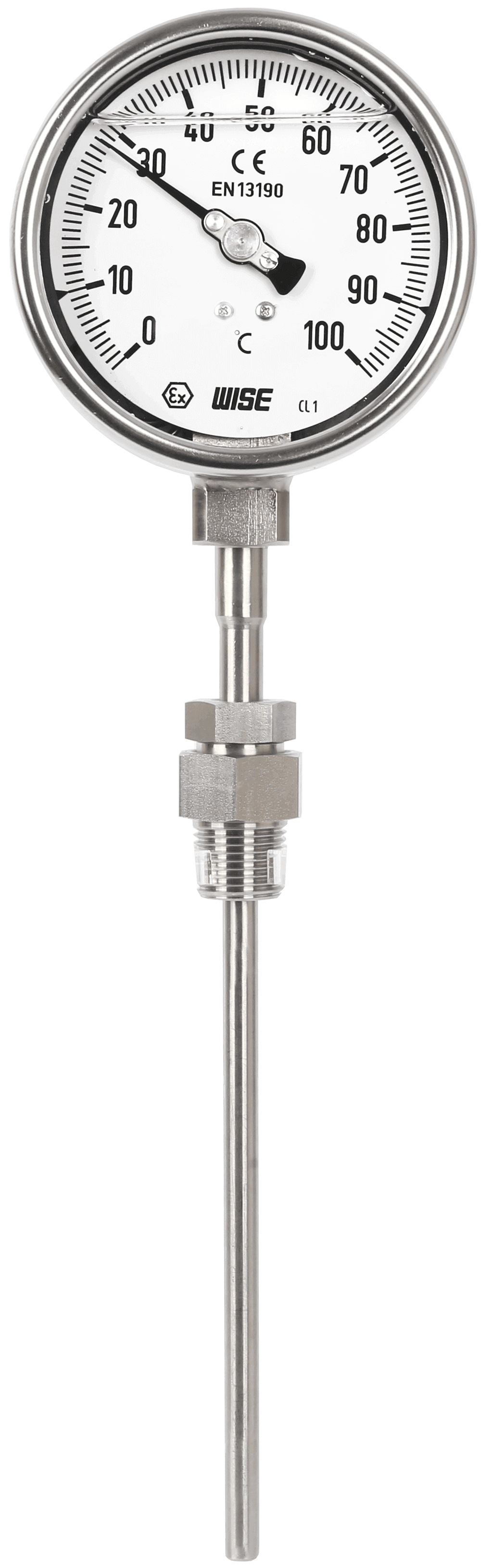

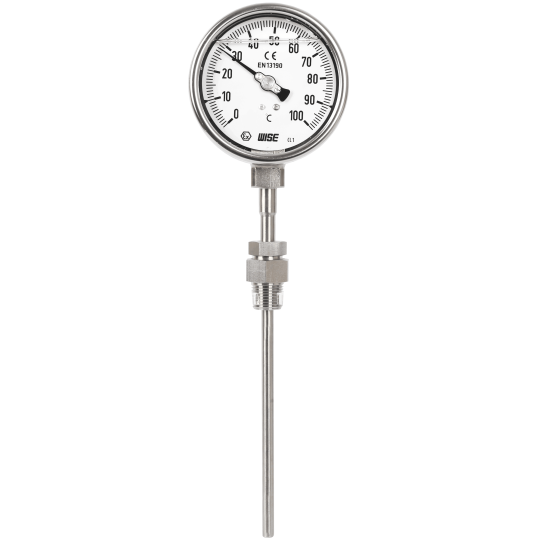

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T259

Nominal diameter: 100 and 160 mm
Accuracy: ±2.0% of full scale
Measuring system (SAMA class ⅢB):
      Organic gas : 0 ~ 200°C
      Inert gas : -200 ~ 700°C
Working range: Maximum scale value
Location of stem:
      Bottom connection, direct
      Lower back connection, direct
Case: 304SS
Cover: 304SS
Window: Tempered safety glass
Dial: White aluminium with black graduation
Pointer: Black painted aluminium alloy
Stem: 8.0, 10.0 and 12.0 mm
      316SS and 316L SS
Filling liquid: Glycerin or silicone
Stem, process connection: 3/8", 1/2", 3/4" PT, NPT and PF
Option: Special accuracy, ±1.0% of full scale
