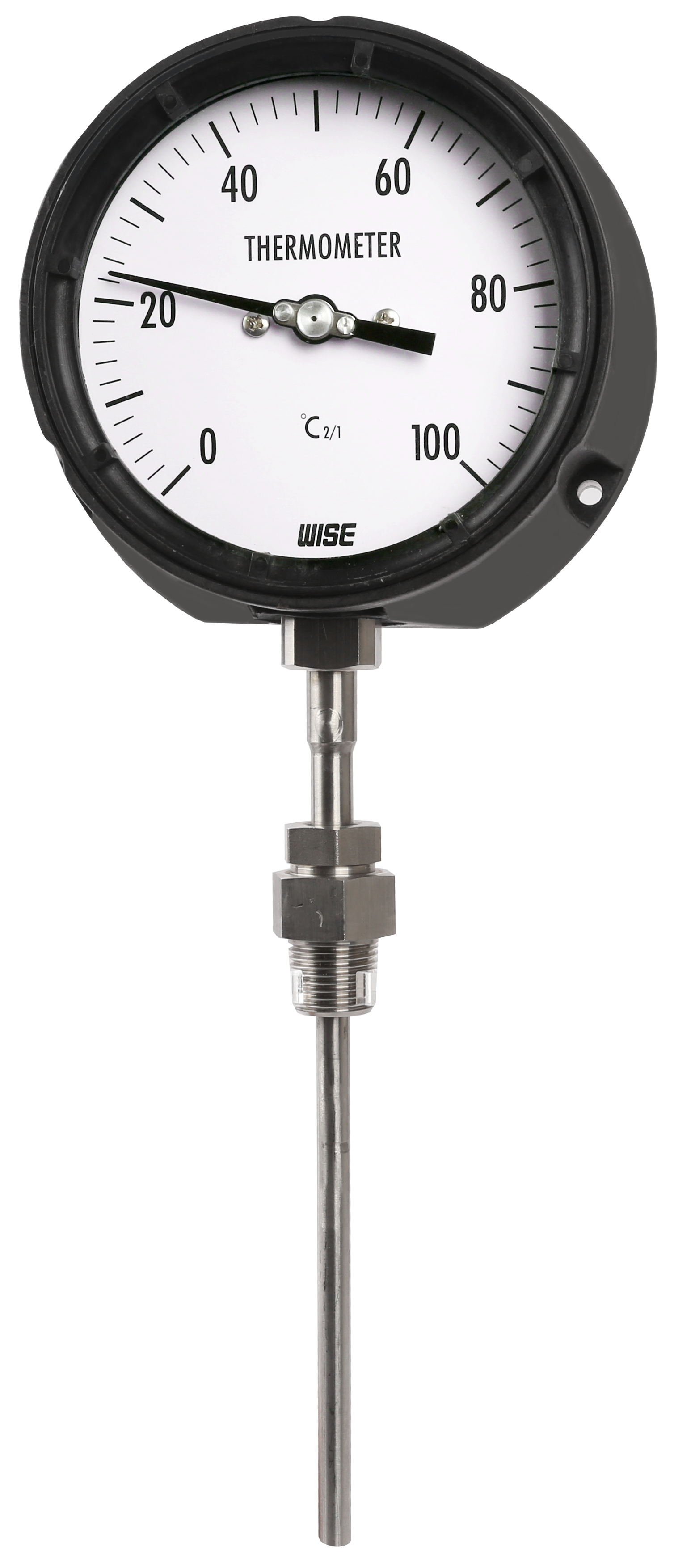

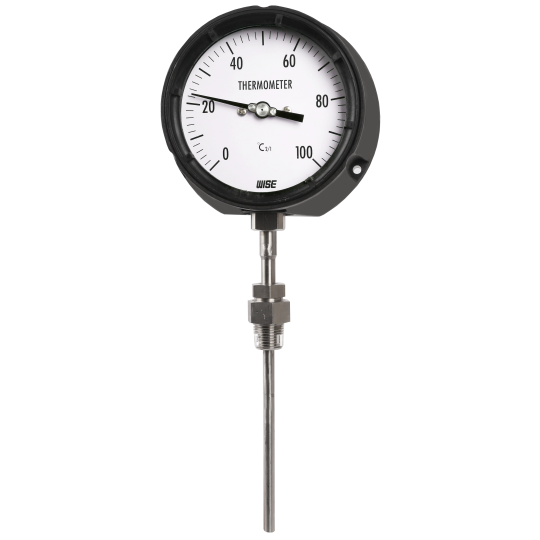

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T359

Nominal diameter
125 mm

Accuracy
±2.0% of full scale

Measuring system (SAMA class ⅢB)
Organic gas : 0 ~ 200°C
Inert gas : -200 ~ 700°C

Working range
Maximum scale value

Location of stem
Bottom connection, direct
Lower back connection, direct

Case and cover
Black glass reinforced thermoplastic (PBTB)
Solid front, blow-out back
Turret style case with built in rear flange lugs

Window
Polycarbonate

Dial
White aluminium with black graduation

Pointer
Black painted aluminium alloy

Stem
6.4, 8.0, 10.0 and 12.0 mm
316SS and 316L SS

Zero adjustment
Internal

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
Special accuracy, ±1.0% of full scale

Certificates
ATEX Ex II GD c IIB TX
