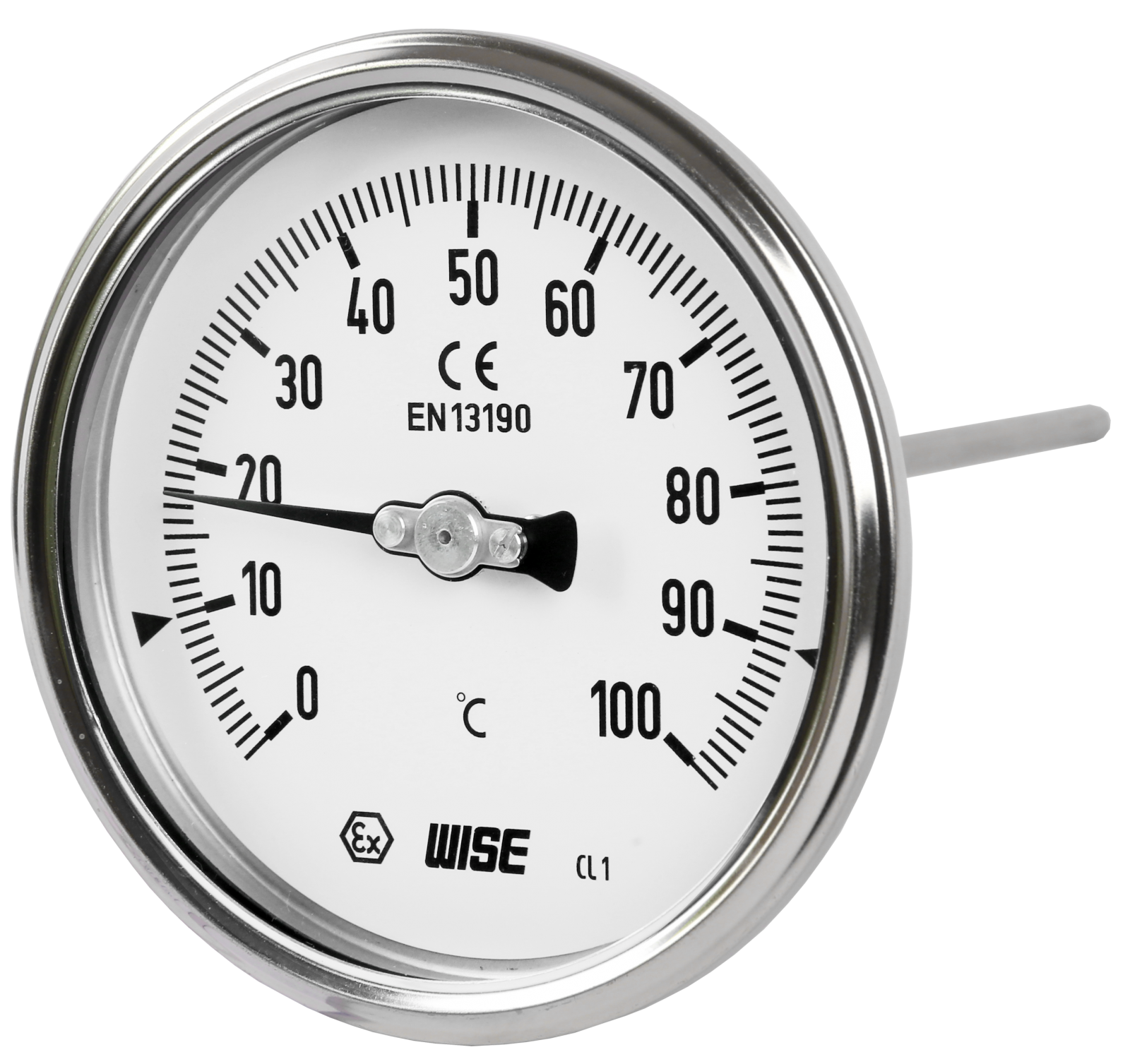

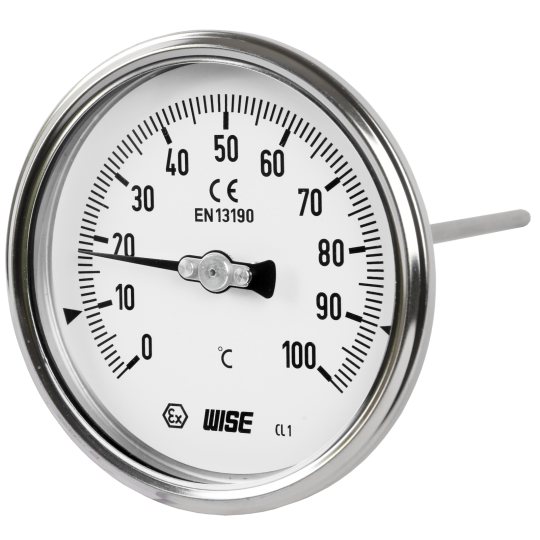

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T112

Nominal diameter
65, 75, 100, 125 and 150 mm

Accuracy
±2.0% of full scale

Temperature element
Coiled bimetal

Working range
Maximum scale value

Location of stem
Center back connection, direct

Case
Hermetically sealed, 316L SS

Cover
Hermetically sealed, 316L SS

Window
Glass

Dial
White aluminium with black graduations

Pointer
Black painted aluminium alloy

Stem
6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm

Zero adjustment

External

Stem, process connection
¼", ⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
