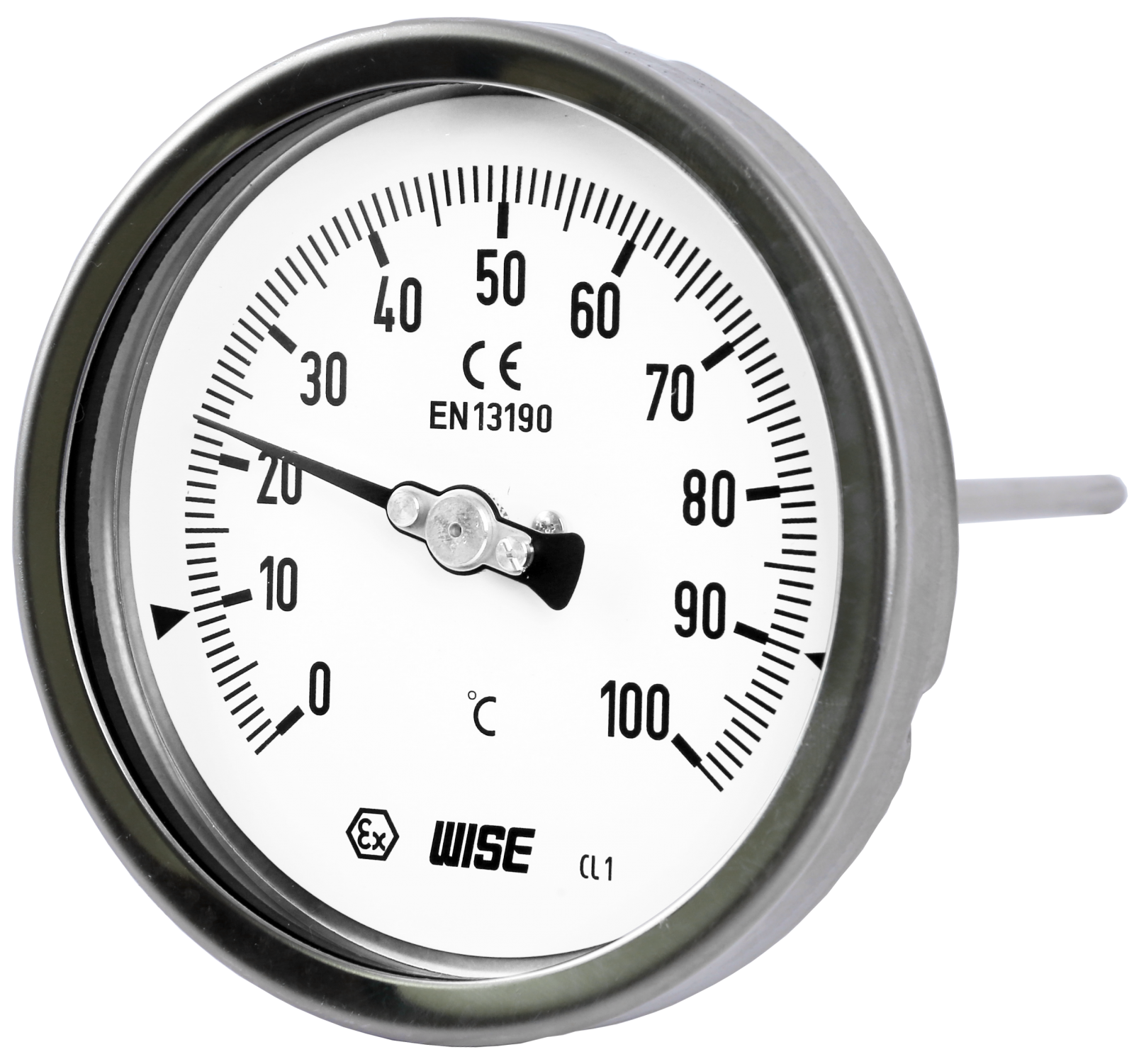

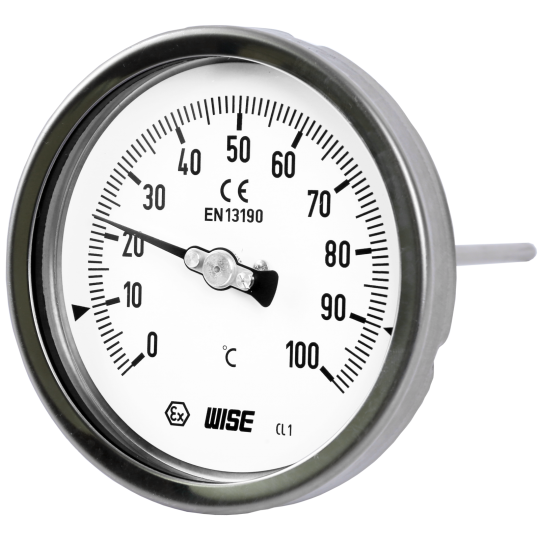

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T110

Nominal diameter
50, 65, 75, 100, 125 and 150 mm

Accuracy
±2.0% of full scale

Temperature element
Coiled bimetal
Working range
Maximum scale value

Location of stem
Center back connection, direct

Case
304SS

Cover
304SS

Window
Glass

Dial
White aluminium with black graduations

Pointer
Black painted aluminium alloy

Stem
6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm

Zero adjustment

External
Stem, process connection
¼", ⅜", ½", ¾" PT, NPT and PF
Option
±1.0% of full scale
Certificates
ATEX Ex II GD c IIC TX
