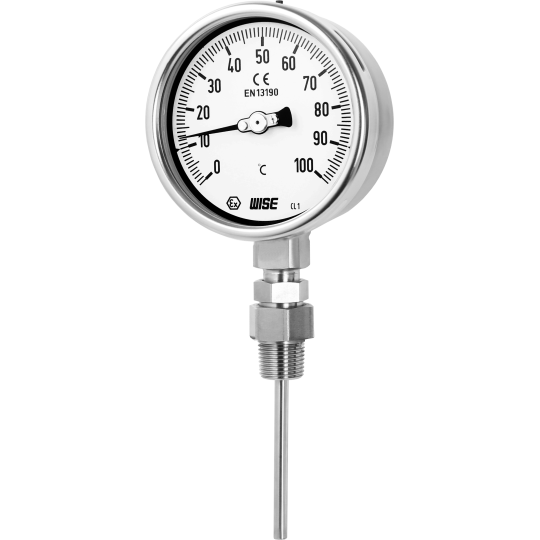

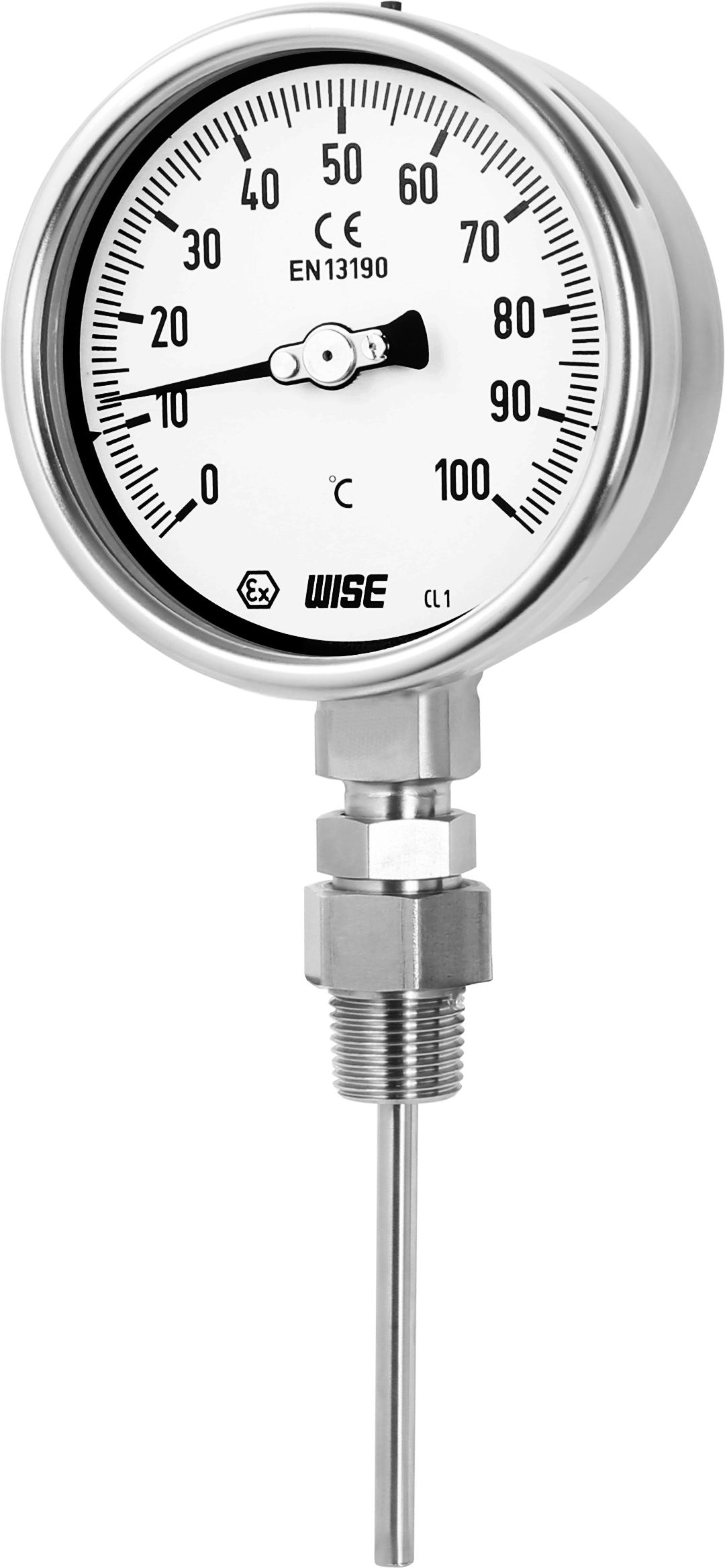

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T150

Nominal diameter
80, 100 and 160 mm

Accuracy
±2.0% of full scale

Temperature element
Coiled bimetal

Working range
Normal (1 year) : Measuring range
Short time (24 hours) : Scale range

Ambient temperature
-20 ~ 60°C

Degree of protection
EN60529/IEC529/IP65

Location of stem
Center back with adjustable stem
Center back
Bottom

Case
304SS
Bayonet type

Cover
304SS

Window
Glass

Dial
White aluminium with black graduations

Pointer
Micro adjustable aluminium pointer

Stem
6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm
Stem, process connection
¼", ⅜", ½", ¾" PT, NPT and PF
G½B, G¾B

Option
Special accuracy : ±1.0% of full scale
