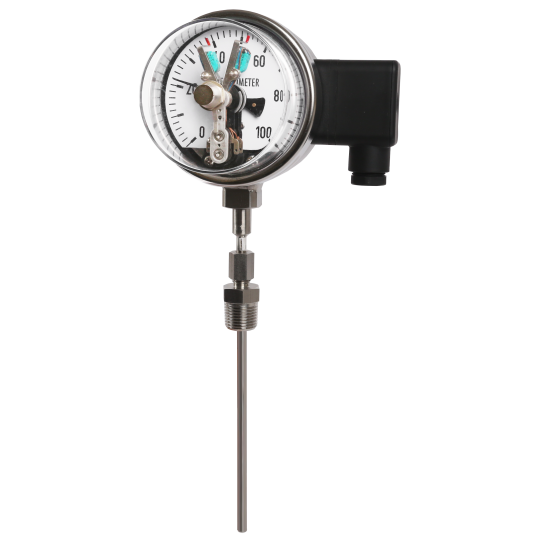

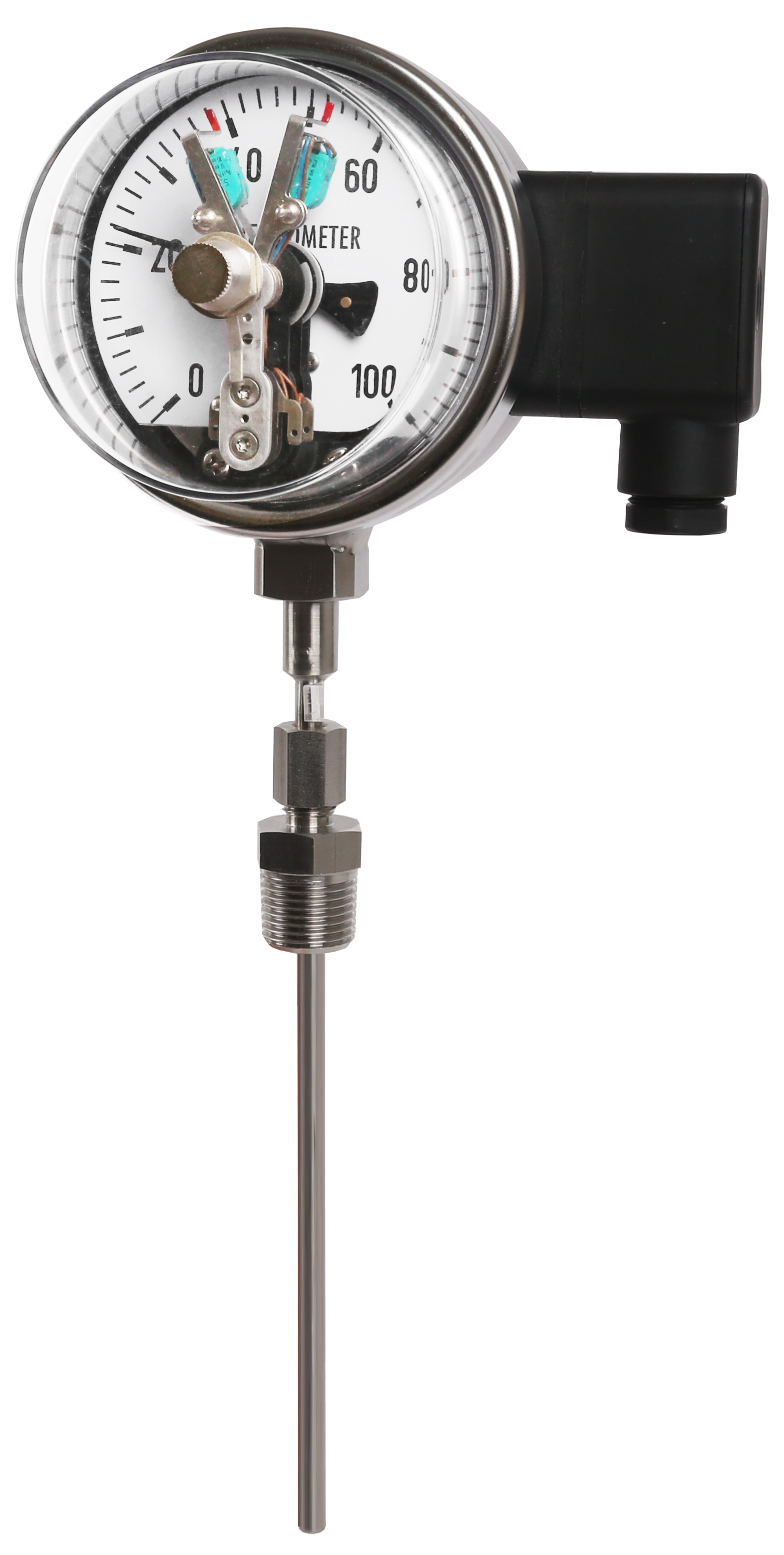

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T511, T512, T513, T514, T515

Nominal diameter
100 and 160 mm

Accuracy
±2.0% of full scale

Temperature element
Coiled bimetal

Working range
Maximum scale value

Location of stem
Bottom connection, surface, case mounting

Case
Stainless steel (304SS)

Cover
304SS
Bayonet type

Window
Safety glass : Only available with diameter 100 mm
Polycarbonate : 100 and 160 mm

Dial
White aluminium with black graduation

Contacts
Maximum voltage : 250 V AC
Contact rating : AC 220 V, 0.25 A
DC 100 V, 0.5 A
With max. no of contact : 2 sets per gauge

Pointer
Black painted aluminium alloy

Stem out diameter
6.0, 6.4, 8.0 and 10.0 mm diameter
304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm

Stem, process connection
⅜", ½", ¾" PT or NPT
G1/2B, G3/4B

Option
Special accuracy, ±1.0% of full scale
