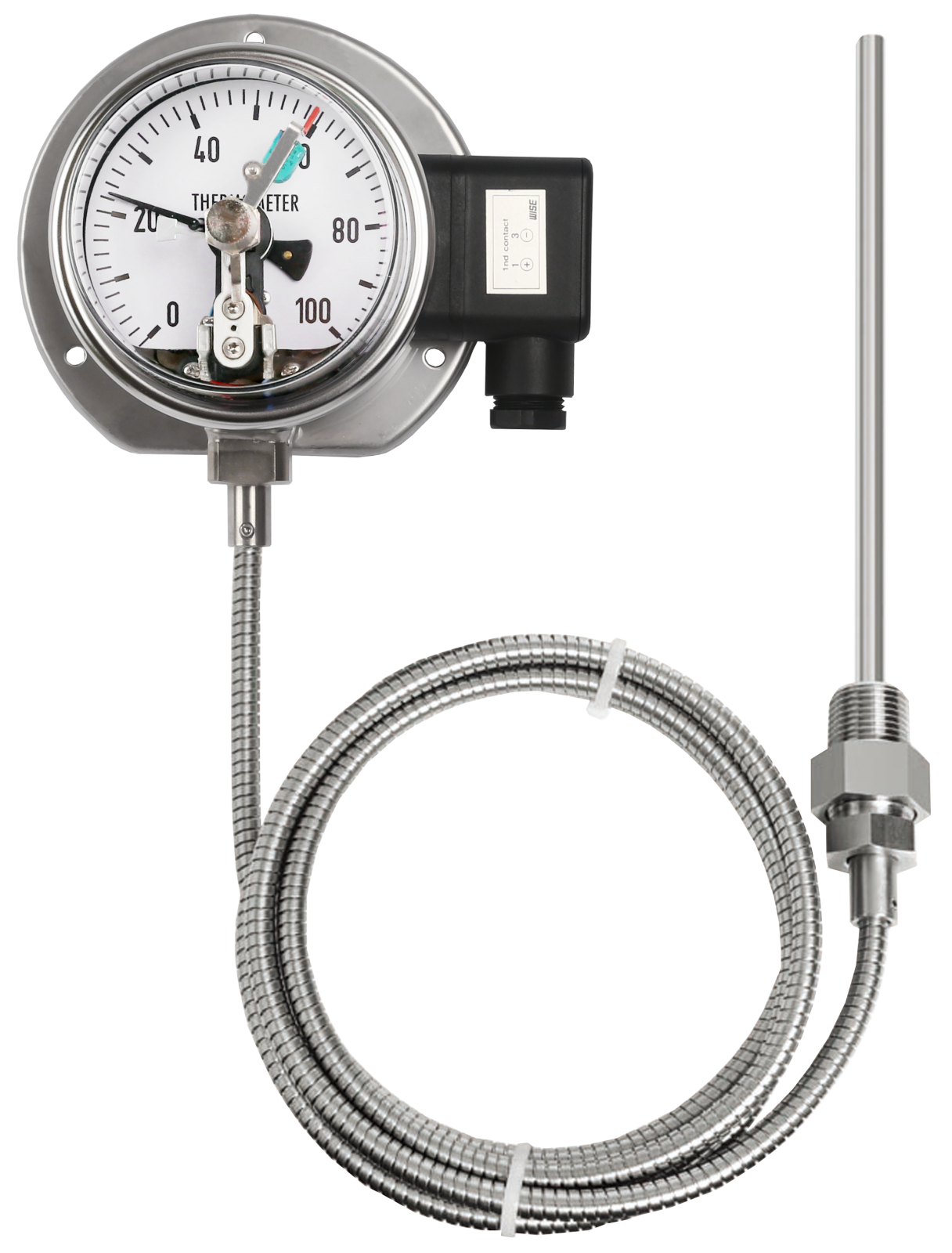

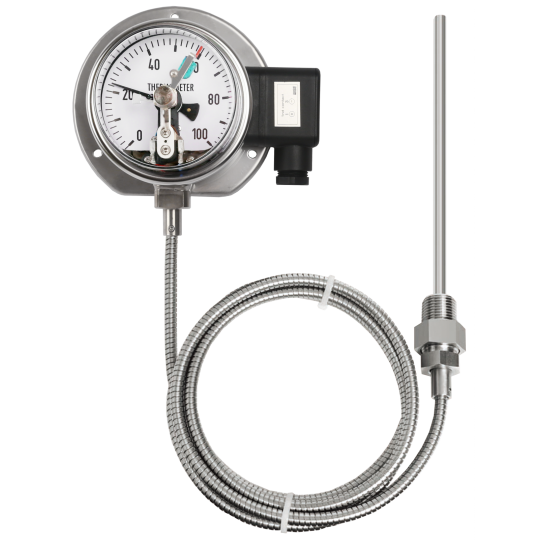

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T501, T502, T503, T504, T505

Nominal diameter
100 and 160 mm

Accuracy
±2.0% of full scale

Measuring system (SAMA class ⅢB)
Organic gas : 0 ~ 200°C
Inert gas : -200 ~ 700°C

Working range
Maximum scale value

Location of stem and mounting
Bottom connection, surface, case mounting

Case
304SS

Cover
Stainless steel (304SS)
Bayonet type

Capillary
Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS

Window
Safety glass : Only available with diameter 100 mm
Polycarbonate : 100 and 160 mm

Dial
White aluminium with black graduation

Contacts
Maximum voltage : 250 V AC
Contact rating : AC 220 V, 0.25 A
DC 100 V, 0.5 A
With max. no of contact : 2 sets per gauge

Pointer
Black painted aluminium alloy

Stem
8.0, 10.0 and 12.0 mm
316SS and 316L SS

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
Special accuracy, ±1.0% of full scale

Certificates
NEPSI Ex ia IIC T6 Ga
Tamb = -20 ~ 56ºC
