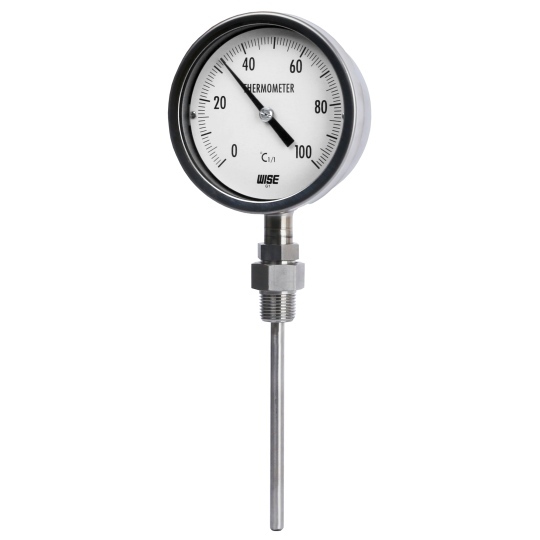

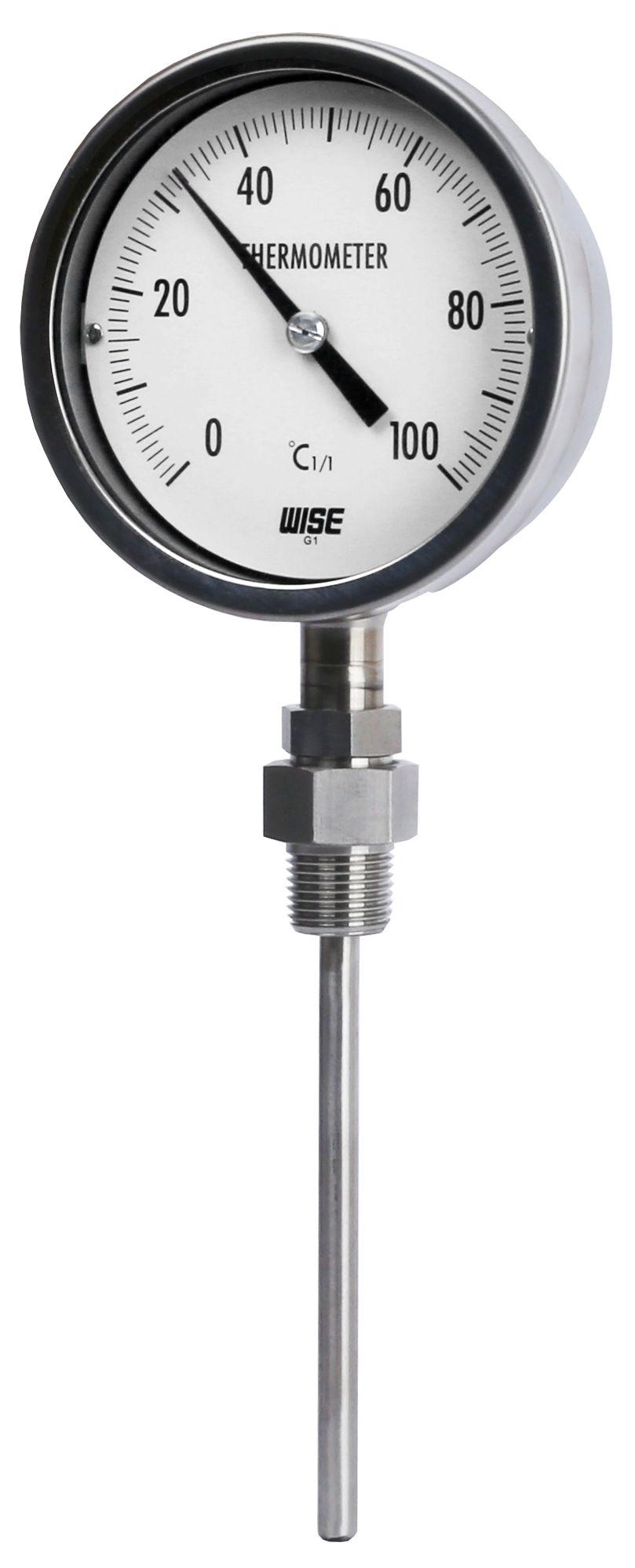

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T220

Nominal diameter
100 and 150 mm

Accuracy
±2.0% of full scale

Measuring system (SAMA class II B)
Organic gas : 0 ~ 200°C
Inert gas : -200 ~ 700°C

Working range
Maximum scale value

Location of stem
Bottom connection, direct
Lower back connection, direct

Case
304SS

Cover
304SS

Window
Tempered safety glass

Dial
White aluminium with black graduation

Pointer
304SS, Black painted

Stem
8.0, 10.0 and 12.0 mm
316SS and 316L SS

Zero adjustment
Internal

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
