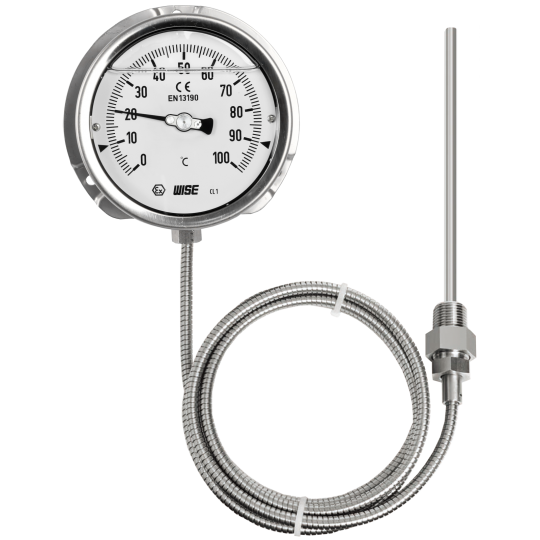

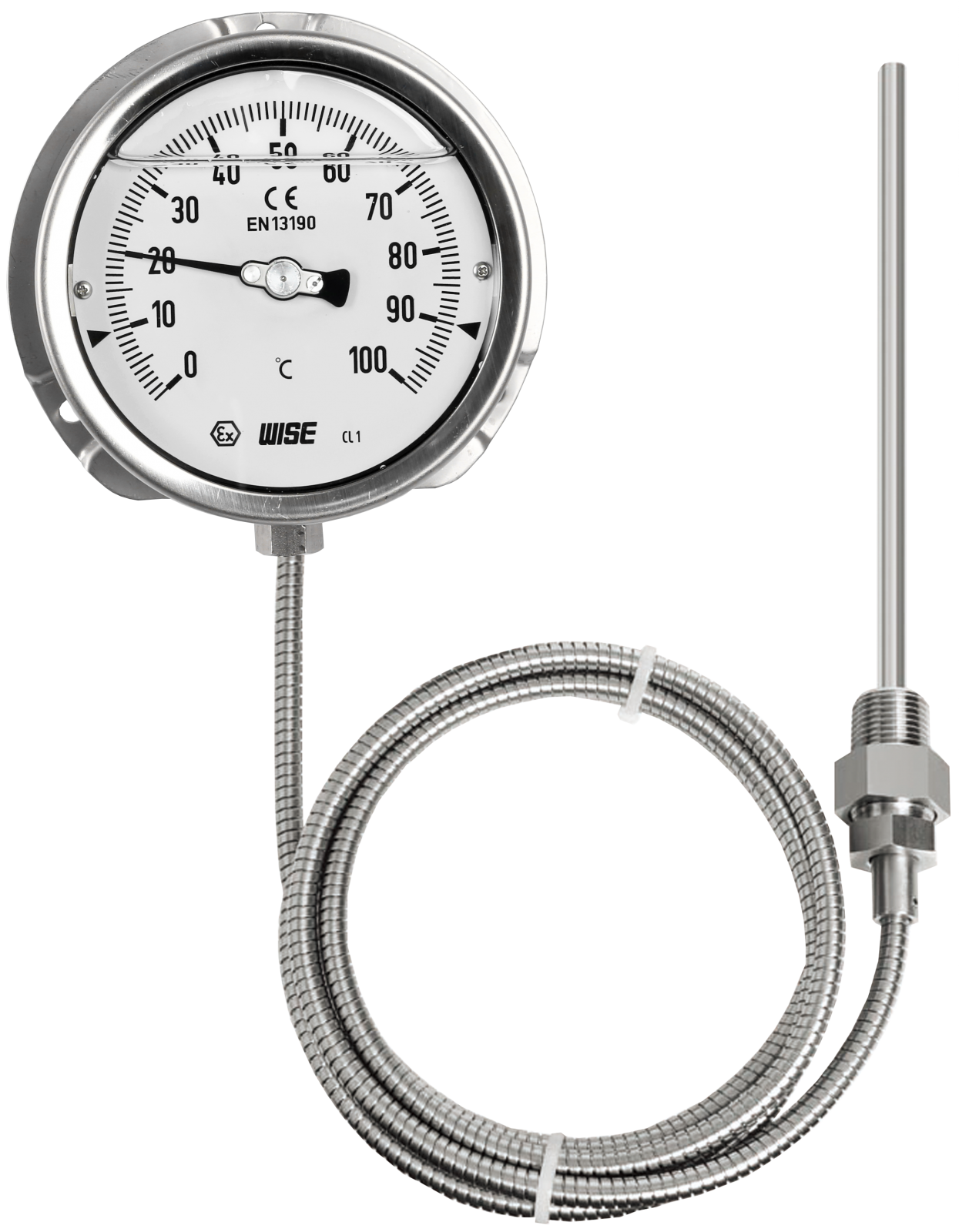

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T219

Nominal diameter
100 and 150 mm

Accuracy
±2.0% of full scale

Measuring system (SAMA class ⅢB)
Organic gas : 0 ~ 200°C
Inert gas : -200 ~ 700°C

Working range
Maximum scale value

Location of stem and mounting
Bottom connection, surface, case mounting
lower back connection, flush,
case center mounting bracket

Case
304SS

Cover
304SS

Capillary
Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS

Window
Tempered safety glass

Dial
White aluminium with black graduation

Pointer
304SS, Black painted

Stem
8.0, 10.0 and 12.0 mm
316SS and 316L SS

Filling liquid
Glycerin or silicone

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
