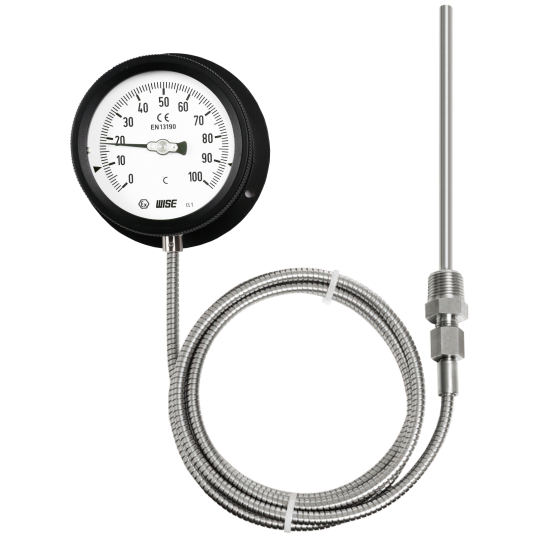

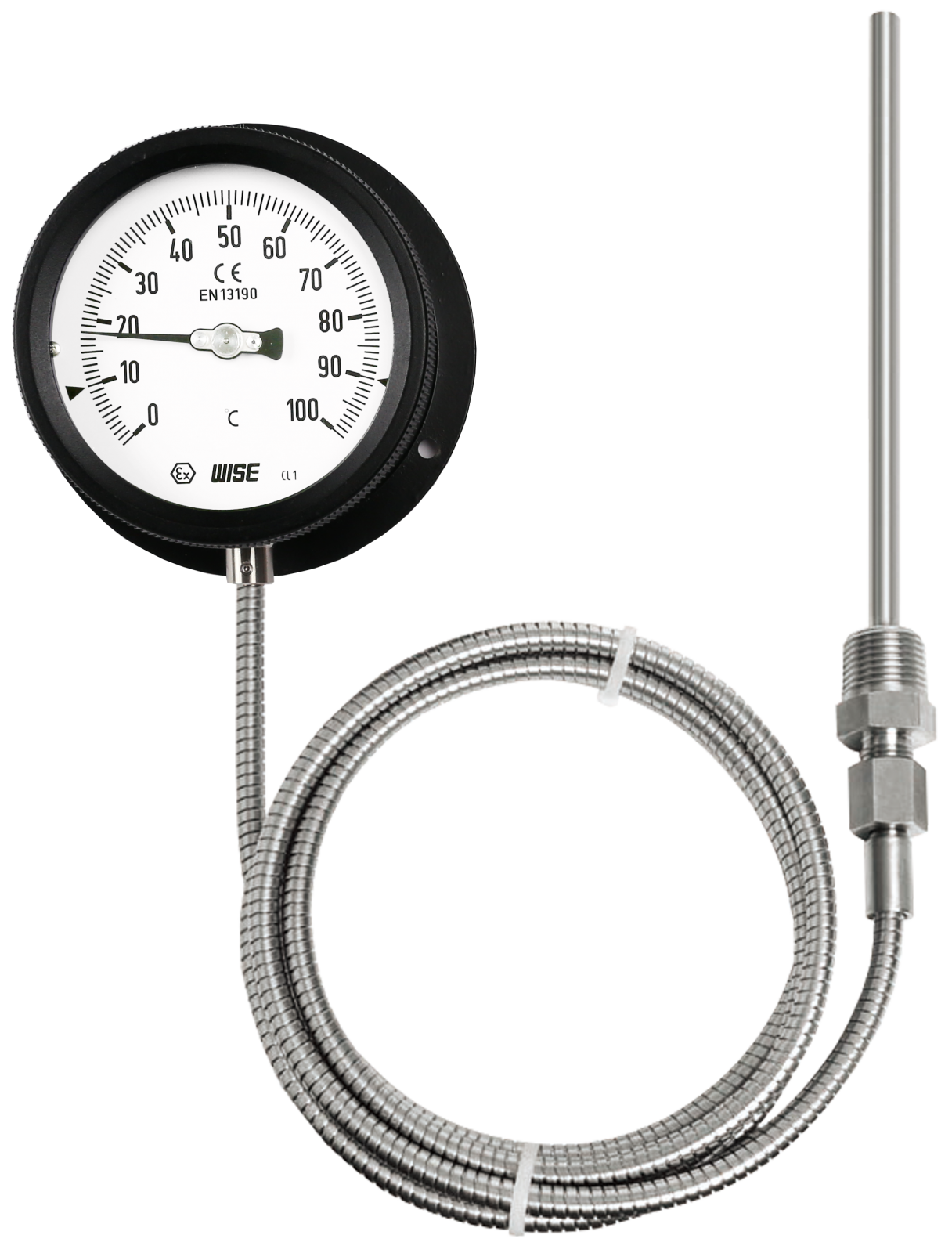

ĐỒNG HỒ ĐO NHIỆT ĐỘ WISE T212

Nominal diameter
75, 100 and 150 mm

Accuracy
±2.0% of full scale

Measuring system (SAMA class ⅢB)
Organic gas : 0 ~ 200°C
Inert gas : -200 ~ 700°C

Working range
Maximum scale value

Location of stem and mounting
Bottom connection, surface, case mounting
Lower back connection, flush, case lower mounting
Lower back connection, flush, case center mounting

Case
Black finished aluminium

Cover
Black finished aluminium

Capillary
Capillary : 1.6/0.2 mm, 316SS
Armored tube : 7.5/5.5 mm, 304SS

Window
Tempered safety glass

Dial
White aluminium with black graduation

Pointer
Black painted aluminium alloy

Stem
8.0, 10.0 and 12.0 mm
316SS and 316L SS

Zero adjustment
Internal

Stem, process connection
⅜", ½", ¾" PT, NPT and PF

Option
±1.0% of full scale
