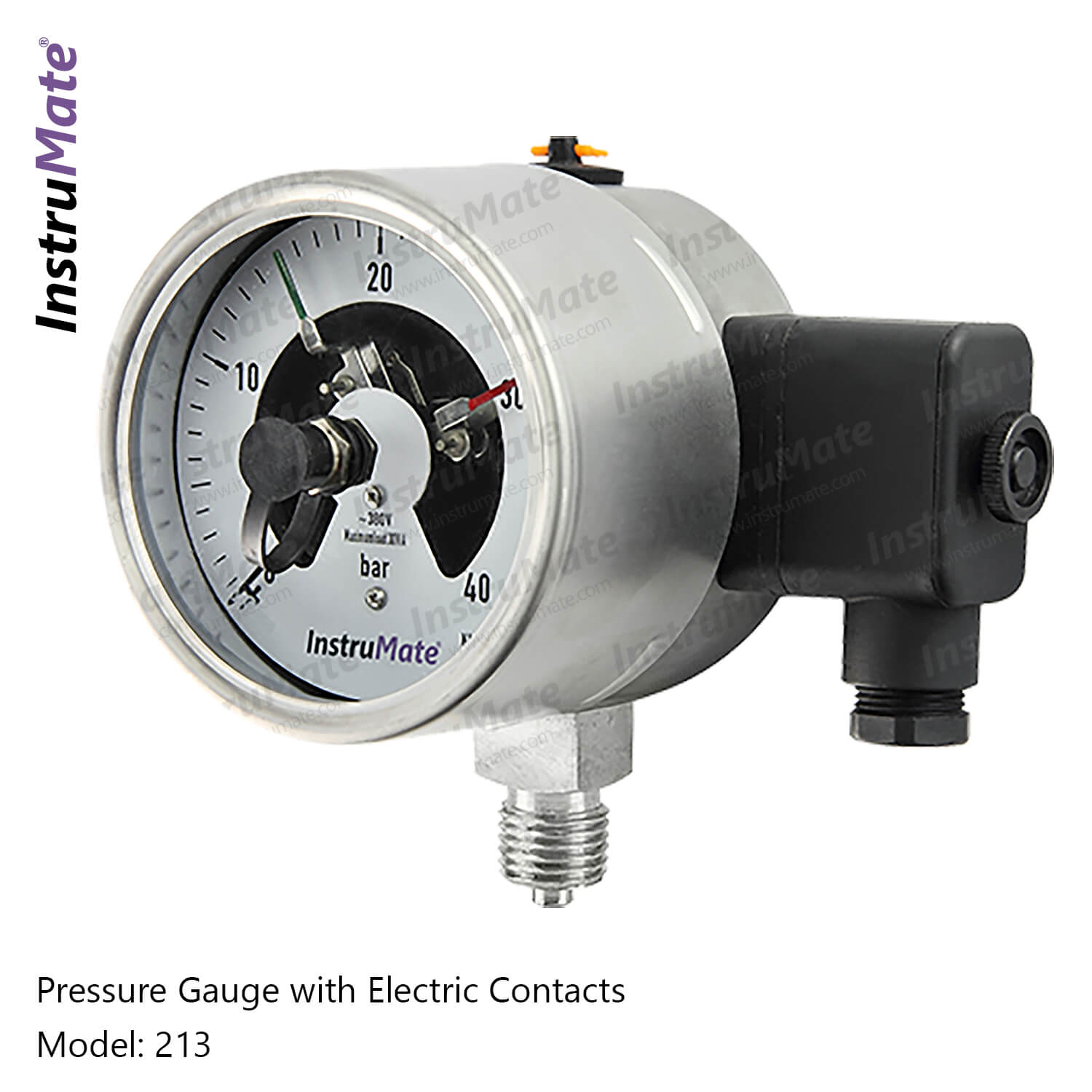

ĐỒNG HỒ ĐO ÁP SUẤT CÓ TIẾP ĐIỂM ĐIỆN INSTRUMATE MODEL 213

In industrial processes, there are times when you need to read the pressure values and at the same time have the ability to alter electric circuits (open/close) at desired set values. In case the media demands a stainless steel instrument, then InstruMate model 213 electric contact pressure gauges are the right choice. Contact-Mate 213 is a heavy duty pressure gauge with switch contacts of snap-action type.

InstruMate electric contact gauges open or close electric circuits depending on the position of the indicating pointer. So if pressure value monitoring and switching application are needed at the same time, InstruMate Electric switch gauges come in handy.

Having them put into correct application, InstruMate Electric Contact Gauges with their robust design are a reliable choice fo switching  functions (normally closed, normally open, and change-over contacts).

Setpoint for contacts are adjusted easily by the use of a key supplied with the product and free movement of the value-pointer is guaranteed regardless of the setpoints.

Application

Circuit switching and plant monitoring

Controlling industrial processes

Making or breaking electric circuits in a plant

Power plants, chemical, petrochemical and machine building

Use as electric alarm contacts

Do not use for medias that are viscous, crystallizing.

Do not use in hazardous or explosion prone areas. Check Model 214 instead

Special Features

Easily adjustable contacts

Reliable reading and switching

Long lifespan and possibility of filling the instrument

Various switch contact options

Full stainless steel construction with heavy duty tube

Specification

Nominal Sizes in mm: 100, 160

Scale Ranges: 0…1 bar to 0…600 bar

Vacuum & compound ranges

Safety Version: S1 per EN837

Contact & Contact

Material: EC1 snap-action contacts,

70% silver & 30% nickel, Gold plated

Pressure Limitations:

(Heavy duty) Steady: 100% of full scale

Fluctuating: 90% of full scale

Short time over pressure: 130% of full scale

Pressure Element: SS316L

Permissible Temperature: Ambient: -20…+60 °C

Medium: +190 °C Maximum for dry version

95 °C Maximum for oil filled version

Accuracy: Gauge Accuracy: 1%

Switching Accuracy: 3%

Window: Safety Glass

Case: Stainless Steel (S1) according to EN 837-1

Movement: Stainless Steel
