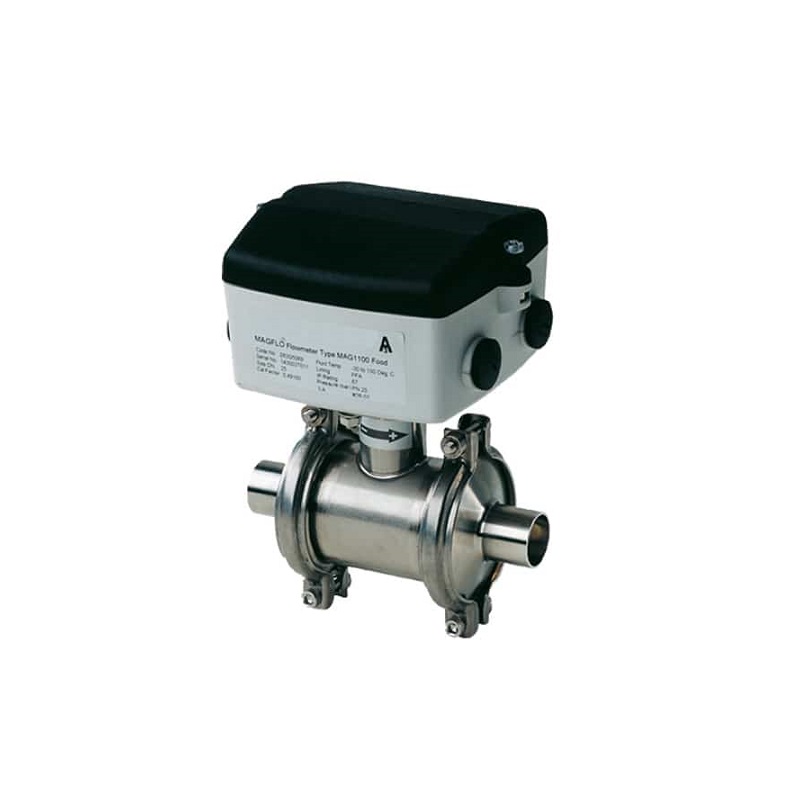

SIEMENS SITRANS FM MAG 1100 F

The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections. It meets all sanitary requirements and is 3A certified and EHEDG approved.

Detail

Meassuring range: 0 to 10 m/s

Nominal size: From DN 10 to DN 100 (3/8" to 4")

Accuracy: 0.2 % ± 1 mm/s

                0.4 % ± 1 mm/s (PFA)

Operating Pressure: Max. 40 bar (Max. 580 psi)

Ambient temperature: From -40 to 100°C (-40 to 212°F)

Medium temperature: From -30 to 150 °C (-20 to 300 °F)

Liners: Ceramics

            PFA

            Electrodes Platinum

            Hastelloy

Material: Stainless steel AISI 316L (1.4404)

Approvals: ATEX - 2 GD Zone 1, FM Class 1 div 2 EHEDG 3A

Benefits

• Flexible and unique process connections

• Standard liner options that fully cover the food and beverage applications

• Short delivery time on standard process connections

• IP67/NEMA 4x rating that is upgradable to IP68/NEMA 6P

• Sanitary design for CIP/SIP cleaning
