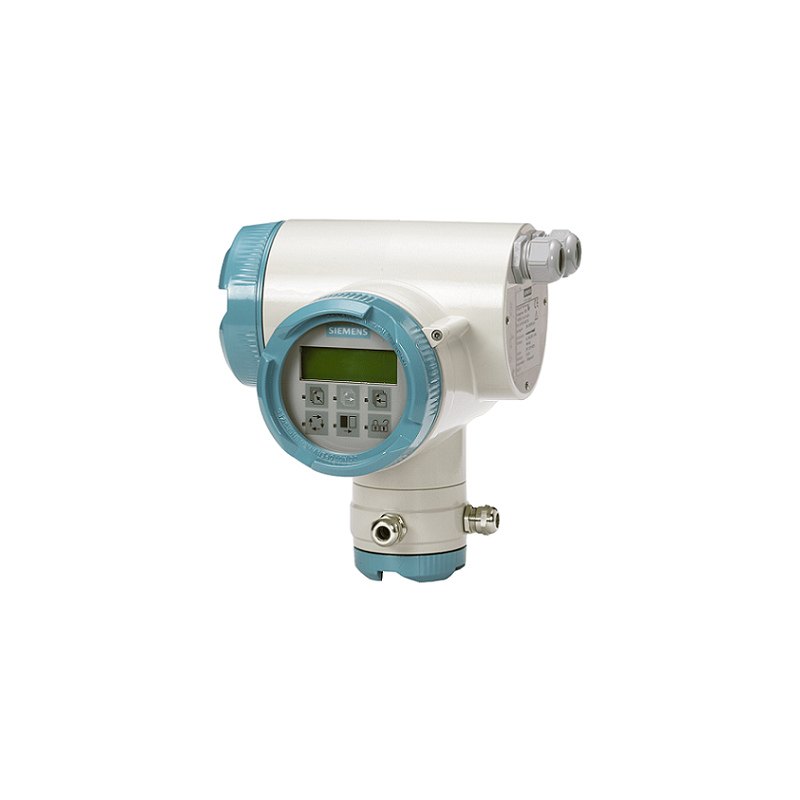

SIEMENS Electromagnetic flow transmitter MAG6000 I/MAG6000 I Ex

The SITRANS FM MAG 6000 I and the SITRANS FM MAG 6000 I Ex de are microprocessor-based transmitters which can be used in the harshest industrial environments.

Detail

Accuracy: 0.2 % ±1 mm/s

Input / output: 1 current

                       1 pulse/frequency

                       1 relay

Communication: HART

                           MODBUS RTU

                           Profibus PA/DP

                           DeviceNet

                           Foundation Fieldbus

Display: Background illumination with alphanumeric text, 3 x 20 characters

Enclosure: IP67 (NEMA 4x)

Power supply: 24 V d.c.

                       115-230 V a.c.

                       18-30 V d.c.

Ambient temperature: From -20 to 60°C (-4 to 140 °F)

Approvals: CE

                  C-tick

                  FM class 1, div 2

                  FM class 1, zone 2

                  CSA class 1, div 2

                  CSA class 1, zone 2

Ex-approvals: IEC Ex de [ia] [ib] ia IIC T6 Gb Ex tDa 21 IP67

                       ATEX II 2(1)(2) GD EEx de [ia] ia [ib] IIC T6

                       NAMUR NE21, NE32, NE43, NE53, NE70, NE131

Benefits

• Built-in advanced batch control
• Robust aluminum two-chamber die-cast housing suitable for potentially explosive applications
• Built-in dosing function
• Added communication module for easy integration with your application, providing a fully integrated solution throughout the plant
• EMC requirements as well as high functional safety and system availability due to uniform operating concept according to NAMUR guidelines are fulfilled
• Error behavior according to NE43 for 4 ... 20mA output selectable
• Improved troubleshooting and testing of the instrument through comprehensive diagnostics and service menu
• SENSORPROM technology allows transmitter replacement and automatic reprogramming of a new transmitter without loss of data or accuracy
• Keypad and alphanumeric display are intrinsically safe and programmable directly in the hazardous area – ATEX and FM certified
