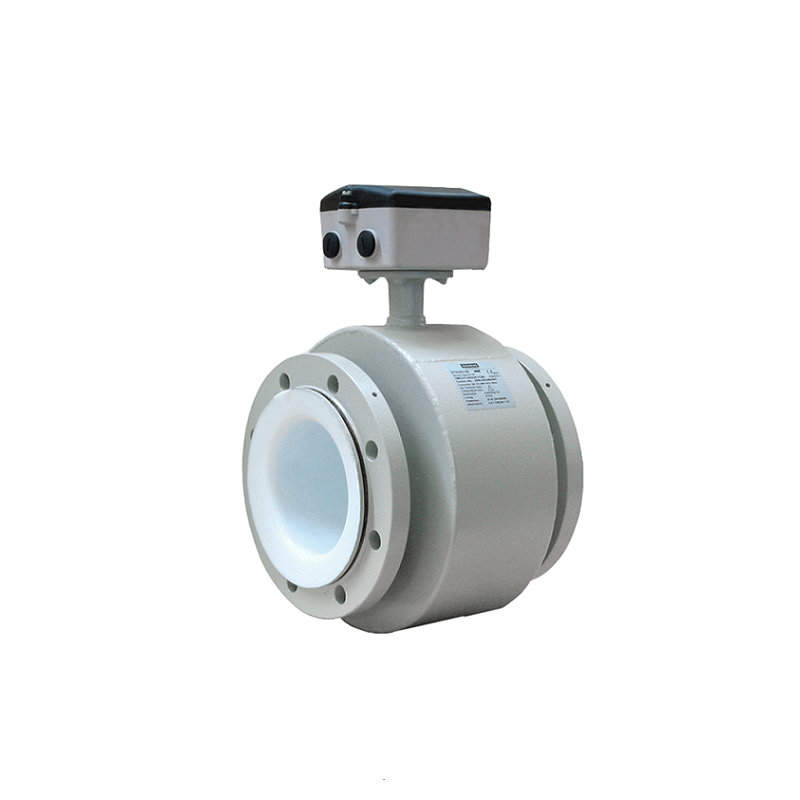

SIEMENS Electromagnetic flow sensor TRANSMAG 2 with sensor 911/E

The SITRANS FM TRANSMAG 2 transmitter with the sensor SITRANS FM TRANSMAG 911/E is a high-powered magnetic flowmeter where the magnetic field strength is much higher than conventional magnetic flowmeters.

Detail

Meassuring range: 0 to 10 m/s

Nominal Sizes: From DN 15 to DN 1000 (½" to 40")

Accuracy: ± 0.5 % of flow rate

Operating pressure: Max. 40 bar (Max. 580 psi)

Ambient temperature: From -20 to 60 °C (-4 to 140 °F)

Medium temperature: From -20 to 150 °C (-4 to 300 °F)

Liners: Neoprene

            PTFE

            Hardrubber

            Linatex

            Novolak

Electrodes: AISI 316 Ti (mat. No. 1.4571/316 Ti)

                   Hastelloy C4 (mat. No. 2.4610)

                   Platinum head with shaft (mat. No. 1.4571/316Ti)

                   Titanium

                   Tantalum

Enclosure sensor: IP67 (NEMA 4x)

                              IP68 (NEMA 6) - optional

Material: Carbon steel

Benefits

• Sensor design – provides a sturdy construction with robust and reliable design and optional IP68 sensor protection
• Stable zero point – ensuring accurate, repeatable, fast-responding and stable flow signal
• SmartPLUG concept – true Plug & Play with automatic sensor recognition
• Pulsed alternating field - provides excellent signal strength and zero point stability
• Liners – broad variety available to fit every application
• Electrodes - wide range of materials available
