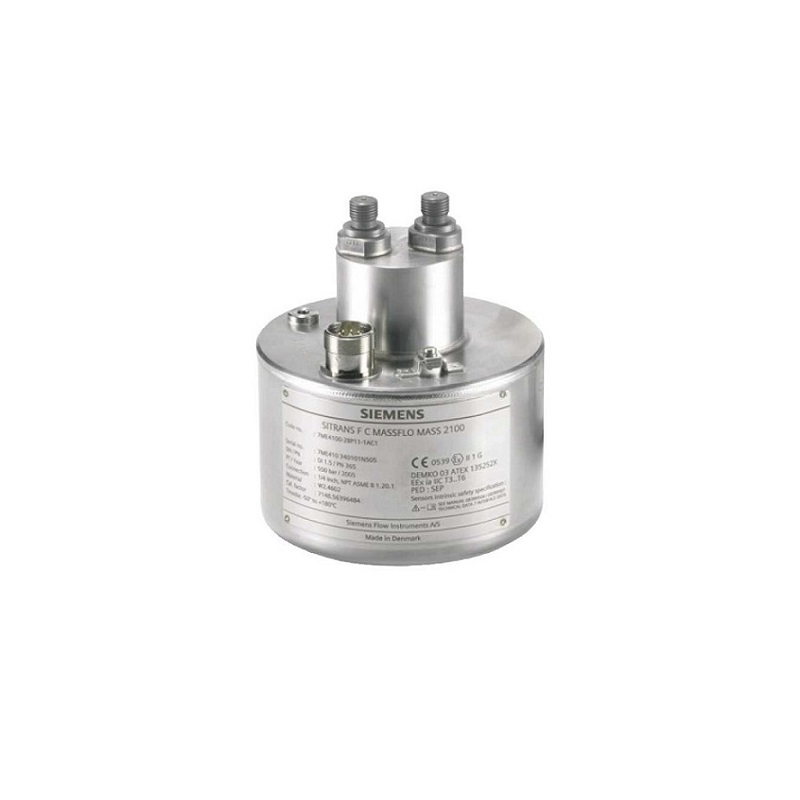

SIEMENS Single tube Coriolis flow sensor SITRANS FC MASS 2100 DI 1,5 with Electromagnetic flow meter SITRANS FCT010, FCT030 and SIFLOW FC070

The SITRANS FC MASS 2100 DI 1.5 has demonstrated superior performance in numerous applications and field trials relating to mass flow- and density accuracy and turn down ratio. The single continuous tube design without internal welds, reductions or flow splitters, offers optimal hygiene, safety and CIP cleanability for food & beverage and pharmaceutical applications. This makes the SITRANS FC MASS…

Detail

Measuring range: From 0 to 30 kg/h (0 to 66 lb/h)

Nominal size: DI 1.5 (1/16")

Accuracy: ≤ 0.1 % of rate

Nominal pressure: Liquid pressure max 365 bar / max 5294 psi (Hastelloy)

                              Liquid pressure max 230 bar / max 3330 psi (Stainless steel)

Medium temperature: From -50 to 180 °C (-58 to 356 °F)

Sensor design: One tube bended

Enclosure: IP65 (NEMA 4)

Approvals: EEx (ia) IIC T3-T6

Benefits

• Markets smallest and most stable zero point - Dual-drive pick-up and driver construction facilitate ultra low-weight pipe construction
•  Optimal lifetime - Markets biggest wall thickness,corrosion resistent and high pressure durability
•  Plug & Play - Multiplug electrical connector and SENSORPROM facilitate cost efficient installation and commissioning
•  Enhanced safety - standard intrinsically safe EEx ia design
• Outstanding accuracy - 4-wire Pt1000 temperature measurement for reliability in mass flow, density and % fraction
