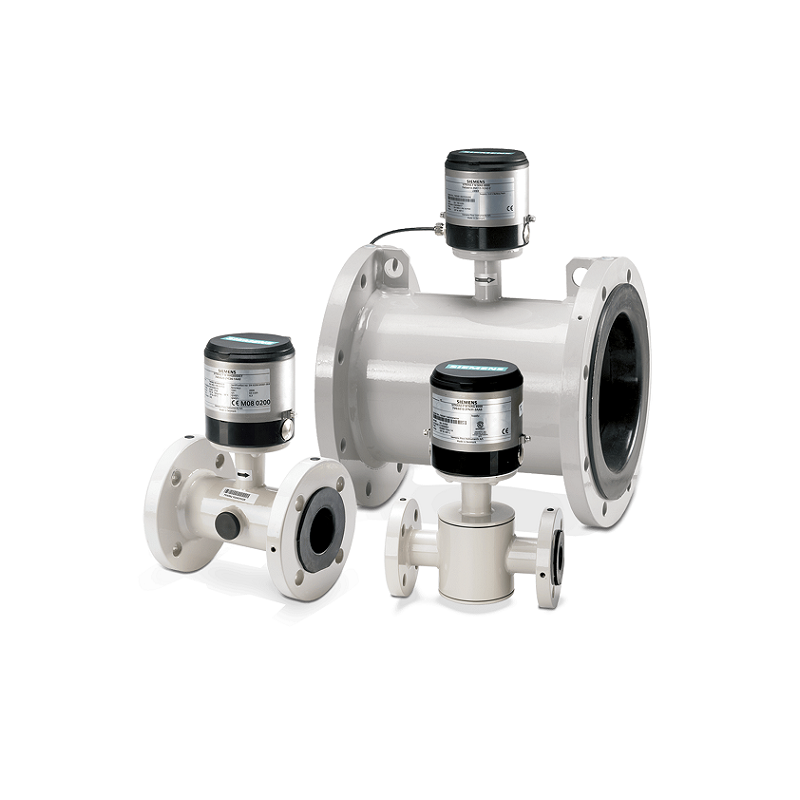

SIEMENS SITRANS FM MAG 8000 / MAG 8000 CT

The SITRANS FM MAG 8000 portfolio of battery-operated flowmeters gives you the flexibility to install a reliable water flowmeter virtually anywhere without sacrificing accuracy or performance.

Detail

Nominal size:

      From DN 25 – 1200 (1" to 48")

      From DN 50 – 600 (1” – 24”) for CT version under the MI001 and OIML R49 Class I & II

Accuracy: 0.2% ± 2mm/s and 0.4% ± 2mm/s

Input / output: 2 passive outputs

Communication: Local Modbus RTU IrDA (Infrared comm.), Modbus RS 232/485, Radio Encoder (Sensus Protocol), 4G LTE M/NB IoT, LoRaWAN

Power supply: Internal or external battery pack 12-24 V AC/DC and 115-230 V AC

Operating pressure: Max. 40 bar (Max. 580 psi)

Ambient temperature: From -20 to 60 °C (-4 to 140 °F)

Medium temperature:

      From 0 to 70 °C (32 to 158 °F)

      From 0.1 to 50 °C (32 to 122 °F) (SITRANS F M MAG 8000 CT)

Liner:

      EPDM

      Electrodes

      Hastelloy C 276

Enclosure: IP68 (NEMA 6P)

Material

Transmitter: Stainless steel top housing (AISI 316) and coated brass bottom.

Sensor: Carbon steel

Approvals:

      WRAS

      KTW

      DVGW 270

      ACS

      Belgaqua

      NSF/ANSI Standard 61

      MID (EU)

      OIML R49

      MCERTS Sira Certificate No. MC080137/00

      NMI 10
