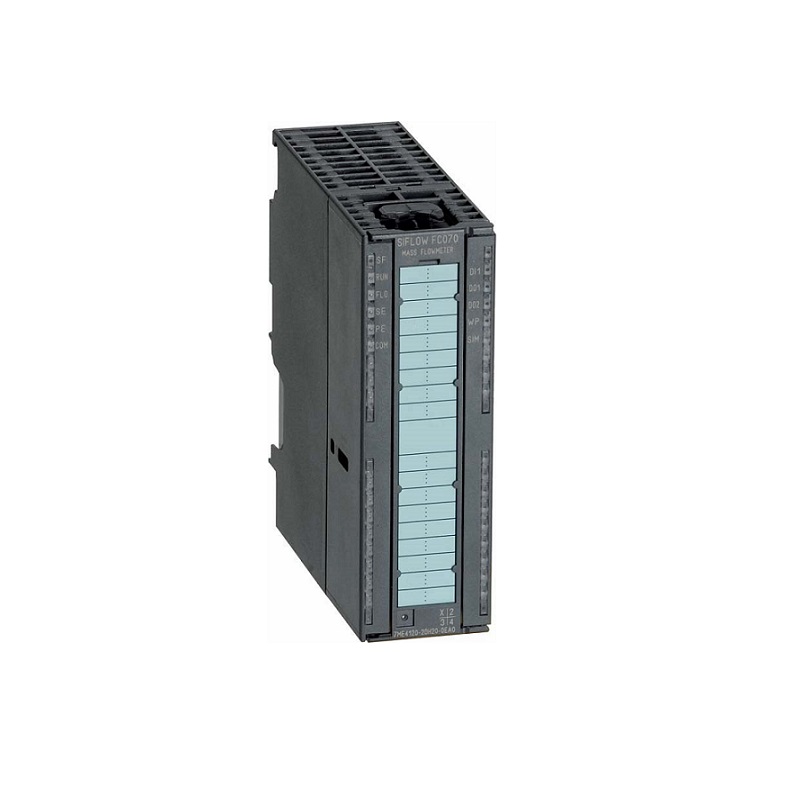

SIEMENS Electromagnetic flow meter SIFLOW FC070

The SITRANS FCT070 technology module is a Coriolis flowmeter technology module for the distributed SIMATIC ET 200SP for direct integration of flowmeters into the SIEMENS TIA Portal and SIMATIC PCS 7.

Detail

Technology Modul: SIMATIC ET 200SP Profinet

Base unit ET 200SP: BU 20 type B1

Supported control: SIMATIC PCS7 V9.0 SP2

                               TIA Portal V16

                               SIMATIC STEP 7 V5.6 SP3 or higher

Outputs: 2 individual programmable outputs

Inputs: 2 individual programmable inputs

Communication: Profinet via SIMATIC ET 200SP

Protection class: IP 20

Environmental temperature: -13° F…122 °F Vertical (140°F)

Power: 24V, Class 2, max. 0.5 A

Approvals (Ex version): ATEX II 3 G Ex ec IIC T.. Gc

Benefits

• Fast setup and combination with additional SIMATIC ET200SP modules
• Simple module selection and integration via Siemens TIA Selector
• Direct integration with drivers and user interfaces for the SIMATIC TIA Portal and SIMATIC PCS 7
• Real-time exchange between controller and flow meter
• For universal use with all Siemens Coriolis flowmeters via digital sensor link
