CẢM BIẾN NHIỆT ĐỘ APLISENS MODEL GI-22-2, GIX-22-2

Application and function

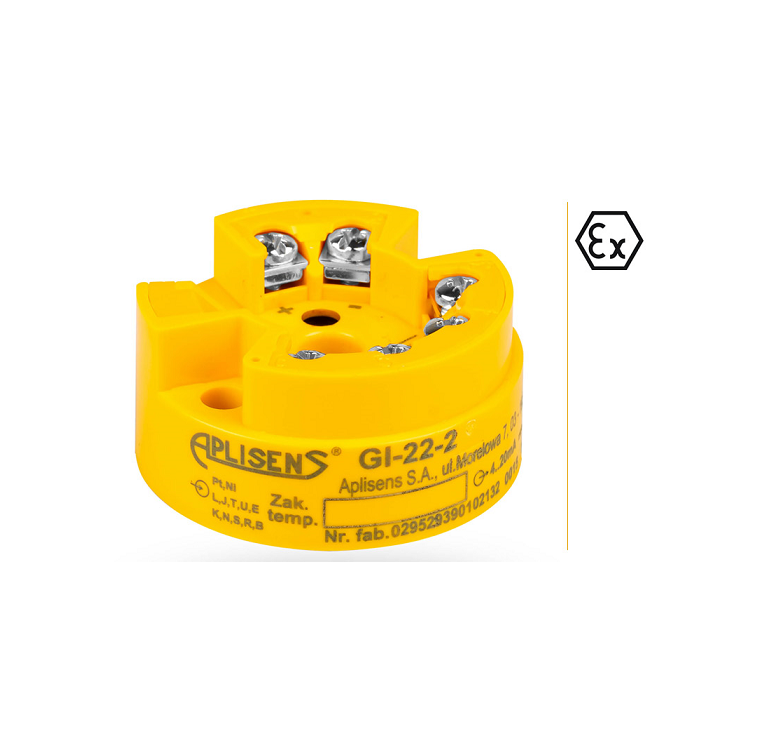

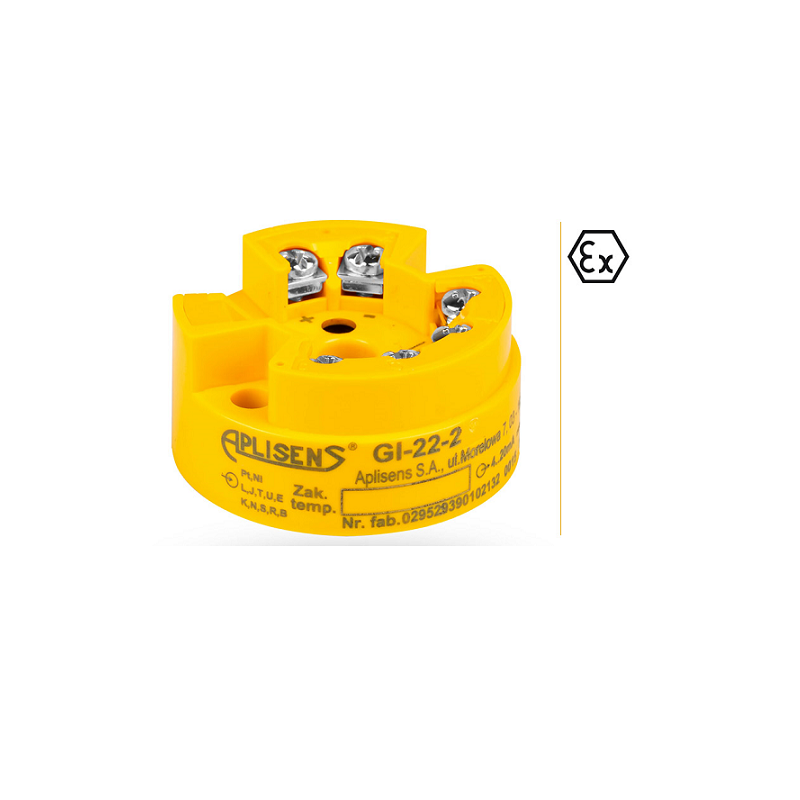

GI-22-3 temperature transmitter is designed to convert the voltages of thermoelectric

sensors of K, J, E, N, T, R, S types into a unified current signal of 4...20 mA. It has compensation for sensor signal nonlinearity.

The transmitter housing allows installation with sensors equipped with heads. The electrical connection can be made with a wire of up to 1.75 mm2. To comply with electromagnetic compatibility (EMC) requirements, the input wires must be shorter than 3 meters.

If the user specifies the type of sensor and the measurement range in the order, APLISENS will deliver the transmitter configured according to the order. Changes in the configuration of the transmitter can be commissioned by the user to APLISENS or

can be made by a PC using a USB-AT-3 converter and special software.

In addition to the ability to change the measurement range, the software allows configuration of the transmitter's behaviour when the sensor circuit is interrupted.

Thermal compensation -40…+85°C, accuracy ±0,5°C

Min. range width 25°C

Output signal 4 _ 20 mA two-wires

Response time 1 s

Sampling each 500 ms

Power supply (USUP) 10…30 V DC

Start-up time 4 s

Load resistance (RO) RO [k_] _ (UZ – 10 V) / 20mA

Alarm signal (configurable) 3,9 mA or 21,5 mA

factory setting 21,5 mA

Thermal error ±0,05°C/°C (for 20°C)

Voltage error ±0,2 μA/V

Ambient temperature -40…+85°C
