Application and function

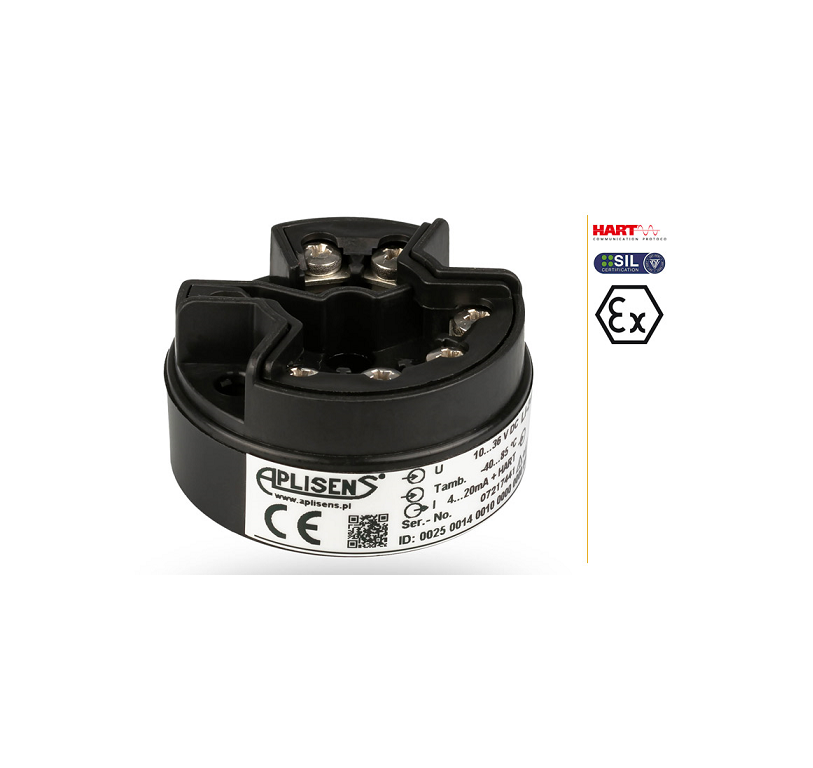

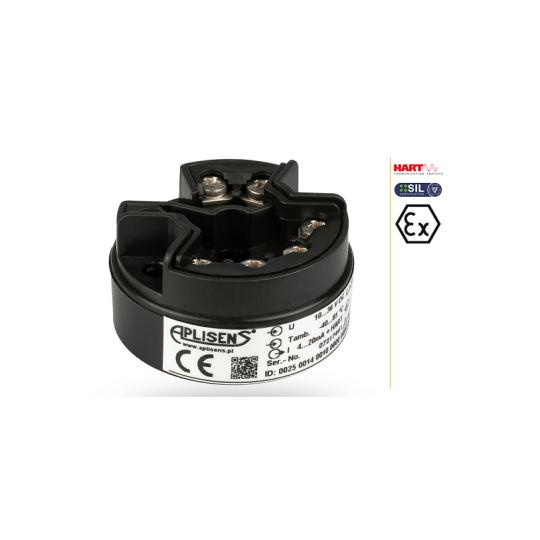

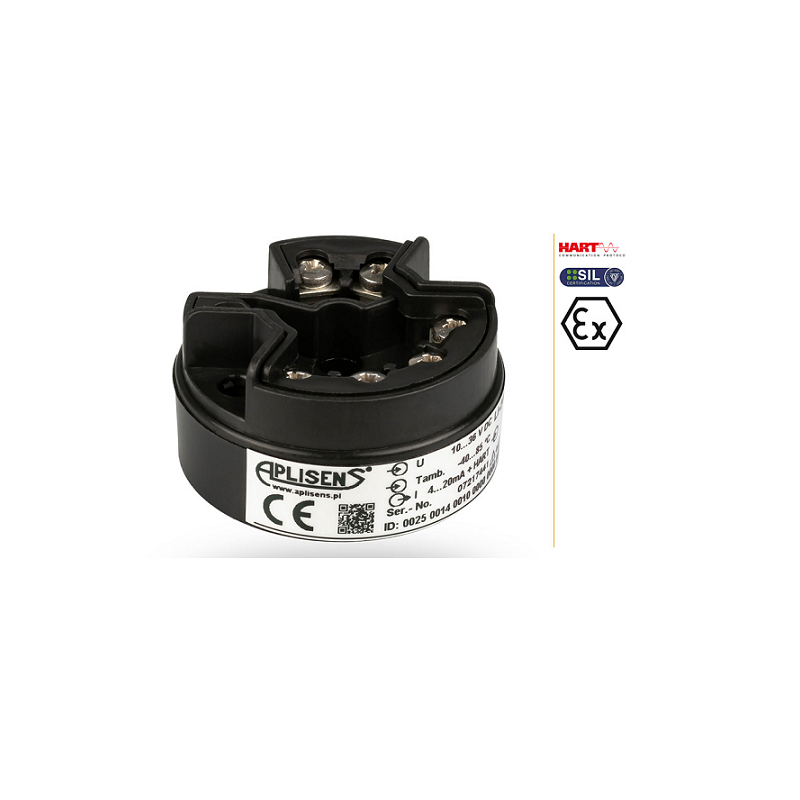

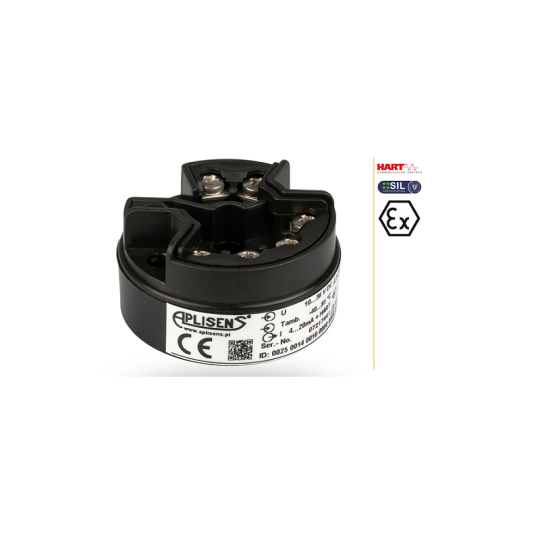

The temperature transmitter LI-24G is applicable to converting resistance of temperature or voltage of thermocouple sensor to standard current signal 4-20mA. The transmitter has two separate measuring channels enabling measurement of temperature difference, averange, averange with redundancy, max or min temperature. Transmitter has compensation of ambient temparature influence and compensation of thermocouple cold junction using internal/external (Pt100) sensor or constant temperature. Most of parameters such as: sensor type, measuring range, current alarm signal when electric circuit is broken, output characteristic correction, user characteristic (60 points) are programmed using PC with HART/USB converter and Raport 2 configuration software. For request Aplisens can set temperature transmitter parameters like measuring range, type of sensor. Their values are printed on label.
Technical data
Input signal L, K, J, S, B, N, T, R, E voltage
Pt10, Pt50, Pt98, Pt100, Pt200, Pt500, Pt1000,
Ni100, Cu50, Cu100, resistance
Limit process
- 10mV< E<100mV
or -100mV< E<1000mV
0W
Min. measuring range 10mV or 10W
Output signal 4...20mA + HART
Power supply 10...36V DC
Safety 10...36V DC
Ex, Safety Ex: 10...30V DC
Accuracy ± 0,1%
Ambient temperature -40...85°C
Ex, Safety Ex: -40...70°C
