CẢM BIẾN NHIỆT ĐỘ APLISENS MODEL CT-25

Application and construction

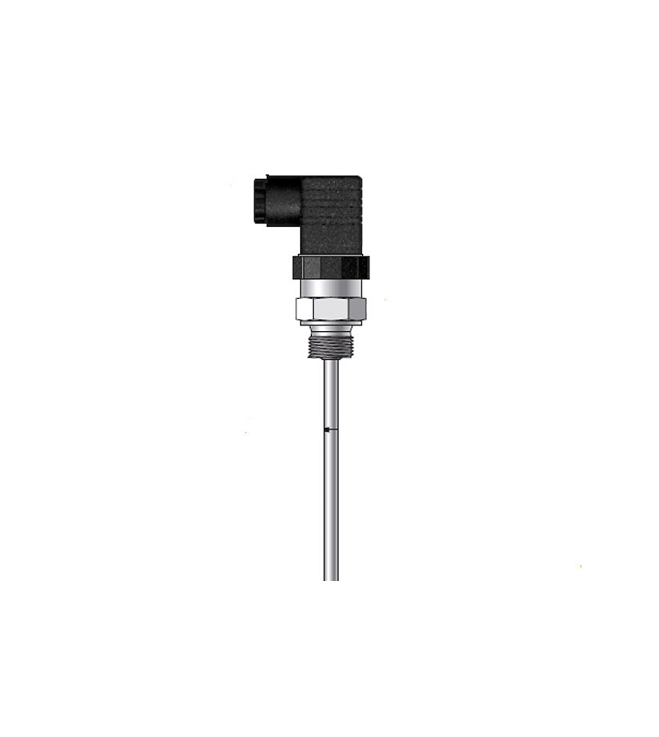

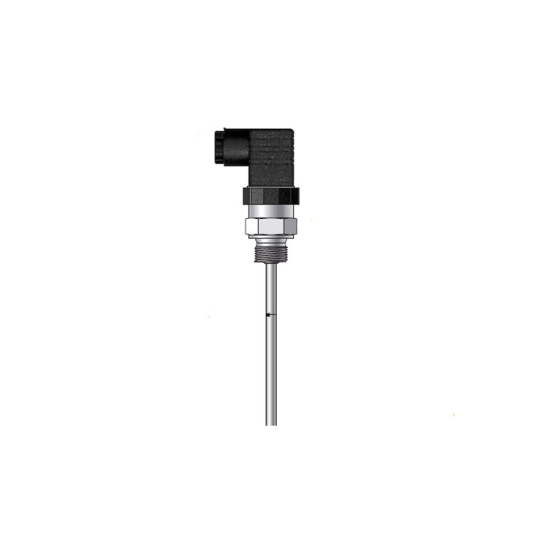

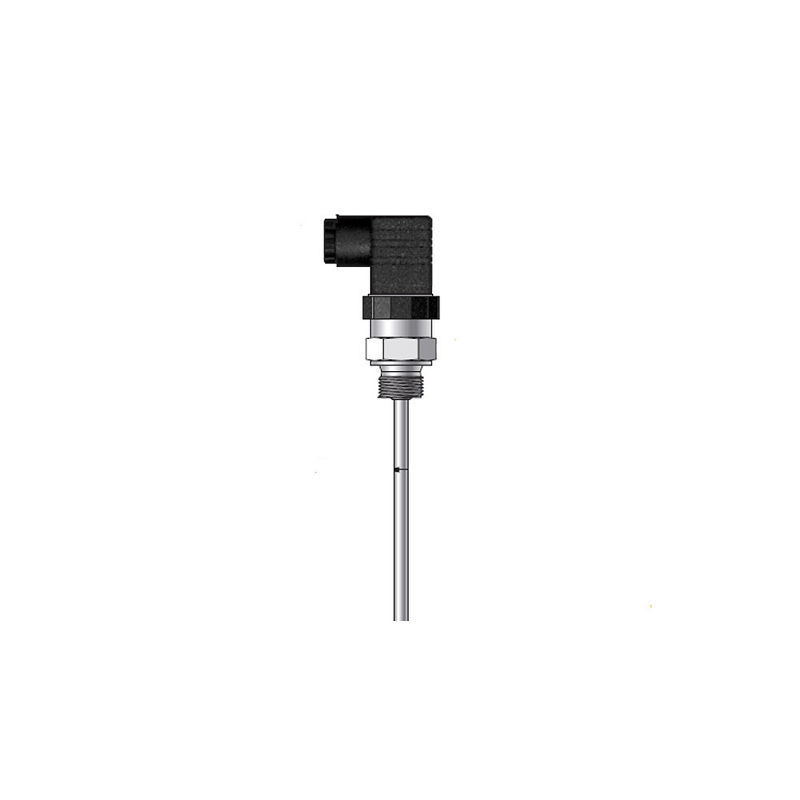

Temperature sensor type CT-25 is designed for temperature measurement of liquid and gaseous media in range from -40 to +100°C. Casing of sensor and wetted parts are made in stainless steel. Available electrical connections are angular connector DIN EN 175301-803 or connector M12x1.
Technical data
Measuring range: -40...100°C
Accuracy: ±(0,3+0,005|t|)°C (class B per IEC 60751)
Process connection: G1/2", other on request
Immersion length: 50...1000mm
Wetted parts material: 316SS
Extension neck: on request
Sensor diameter: 4, 6, 8mm
Ingress protection: PD - IP65, PM12 - IP67
