CẢM BIẾN NHIỆT ĐỘ APLISENS MODEL PT-25

Application and construction

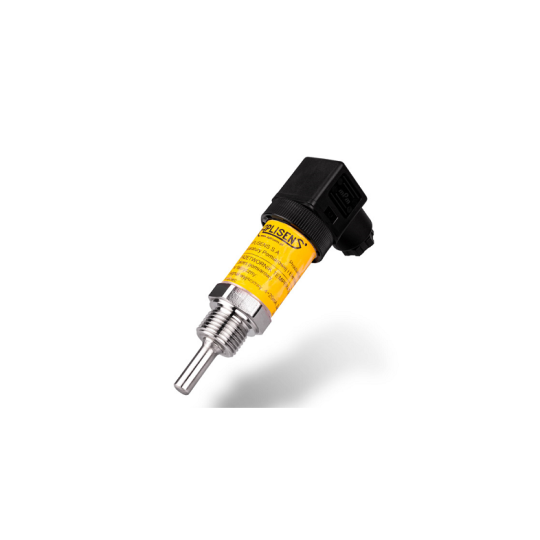

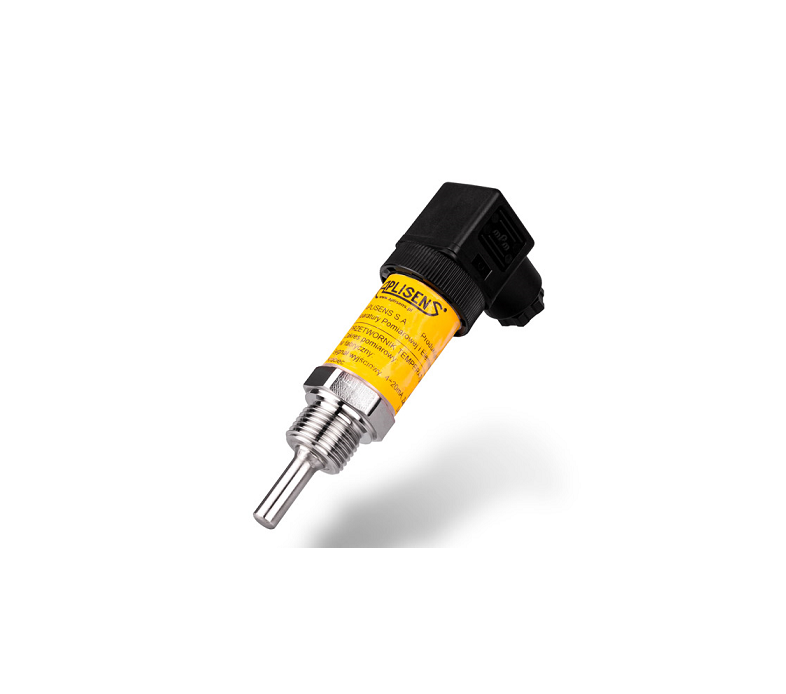

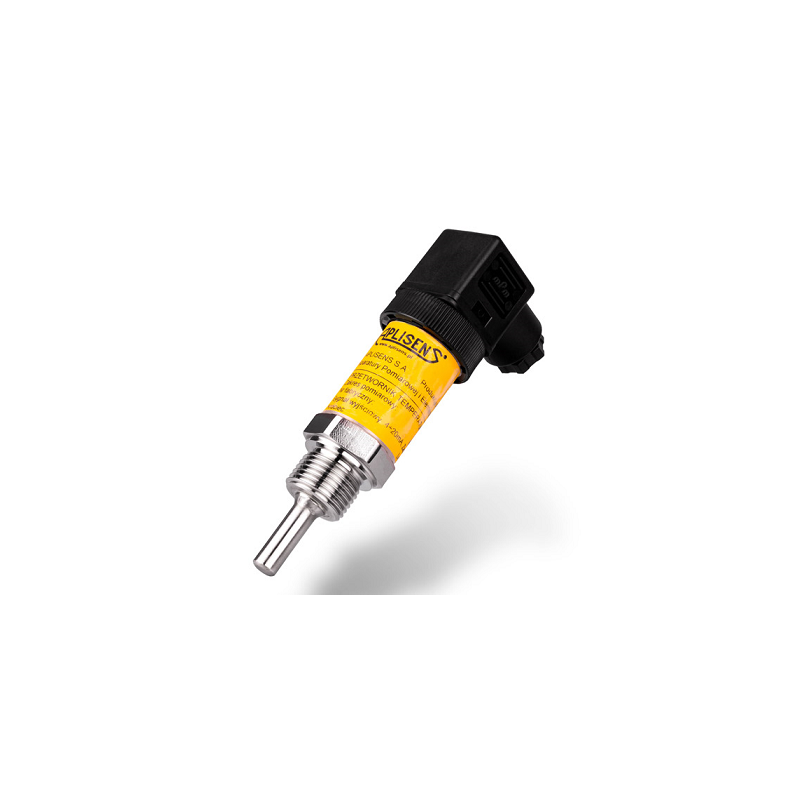

Temperature transmitter type PT-25 is designed for temperature measurement of liquid and gaseous media in range from -50 to +100°C. Resistance signal from RTD element is converted to standard 4…20mA output signal. Casing of transmitter and wetted parts are made in stainless steel. Available electrical connections are angular connector DIN EN 175301-803 or connector M12x1.
Technical data
Output signal: 4...20mA
Measuring range: -50...50°C, -50...100°C,
Minimum span: 25K
Accuracy: ± 1%
Power supply: 8...35 V DC
Alarm signal: <3,1mA or >26,1mA
Process connection: G1/2", other on request
Immersion length: on request
Wetted parts material: SS316
Extension neck: on request
Sensor diameter: 4, 6, 8mm
Ingress protection: PD - IP65, PM12 - IP67
