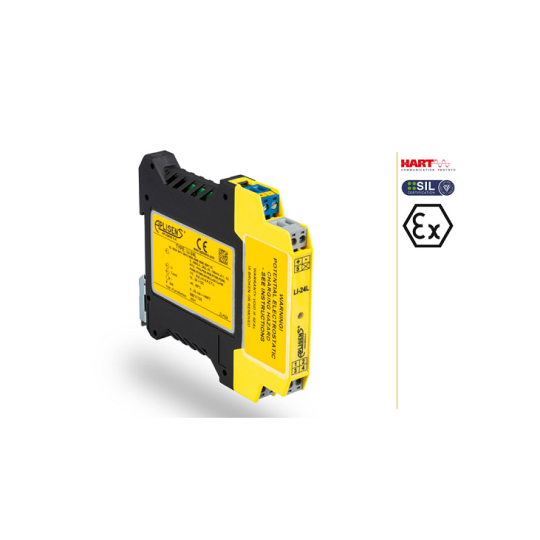

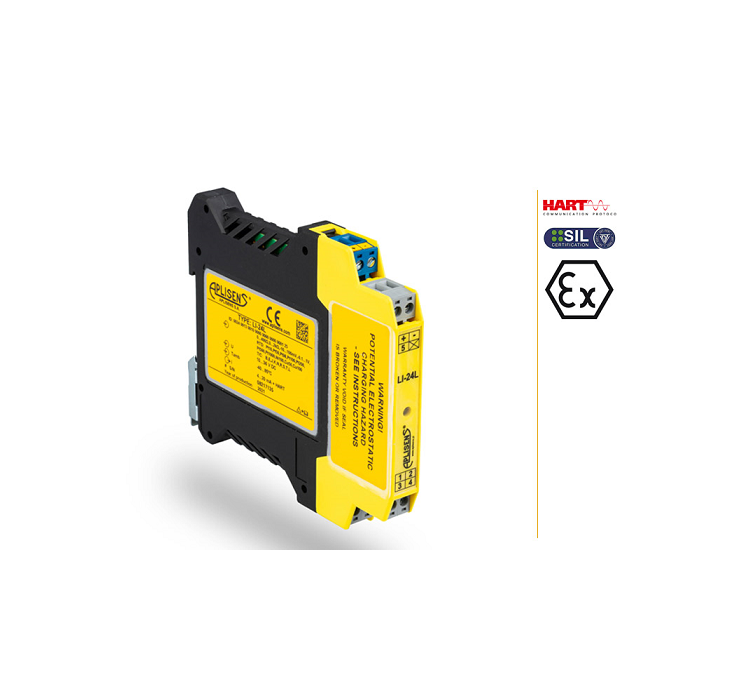

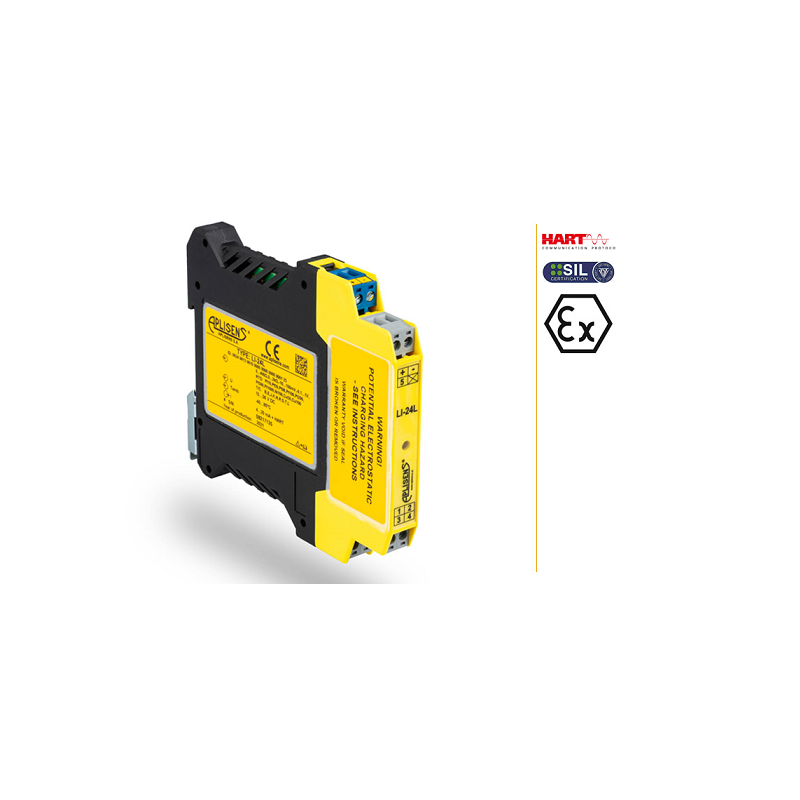

CẢM BIẾN NHIỆT ĐỘ APLISENS MODEL LI-24L and LI-24/Ex

Nhà sản xuất: APLISENS

  • Liên hệ
  • 375

Application and function

The temperature transmitter LI-24L is applicable to converting resistance of temperature or voltage of thermocouple sensor to standard current signal 4-20mA. The transmitters have two separate measuring channels enabling measurement of temperature difference, averange, averange with redundancy, max or min temperature. Transmitter has compensation of ambient temparature influence and compensation of thermocouple cold junction using internal/external (Pt100) sensor or

constant temperature. Most of parameters such as: sensor type, measuring range,

current alarm signal when electric circuit is broken, output characteristic correction, user characteristic (60 points) are programmed using PC with HART/USB converter and Raport 2 configuration software. For request Aplisens can set temperature transmitter parameters like measuring range, type of sensor. Their values are printed on label. Transmitter for rail mounting (TS-35).

Technical data

Input signal K, J, S, B, N, T, R, E voltage

Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000,

Ni100, Cu100, resistance

Min. measuring range

10mV or 10W

Output signal 4...20mA + HART

Power supply 10…36V DC

Safety: 10...36V DC

Ex, Safety Ex: 10...30V DC

Max. Wires resistance: 500W

Alarm signal 21,6mA or 3,75 mA o r setting by user

Sensor current 0,25mA

Accuracy ± 0,1%

Additional electronic damping 0...30s

Ambient temperature -40…+85°C

Time constant 0,2...1s

Dimensions (WxHxD): 12,5mmx99mmx114,5mm
