Application and function

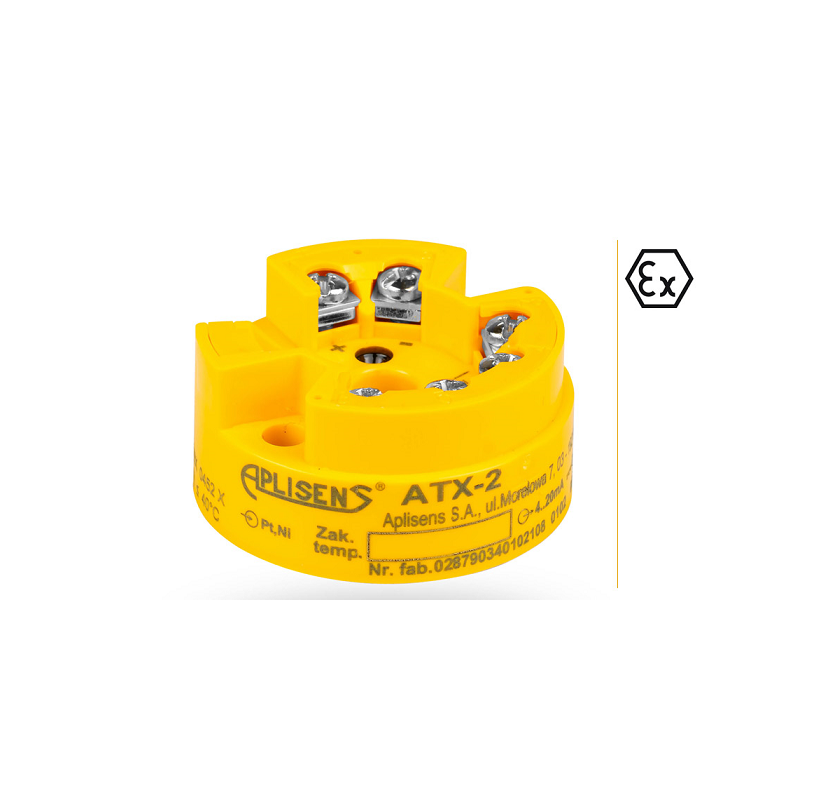

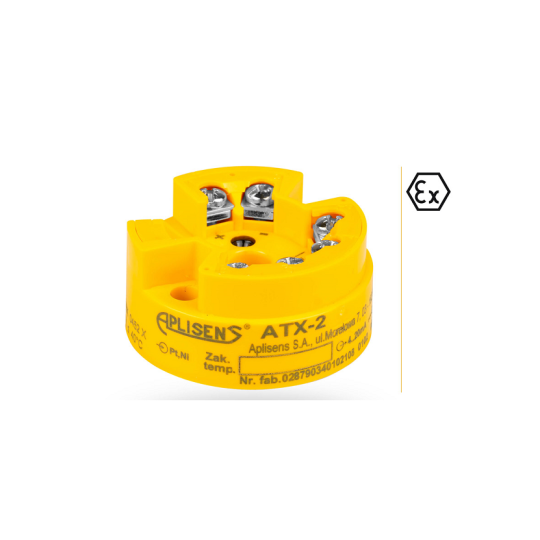

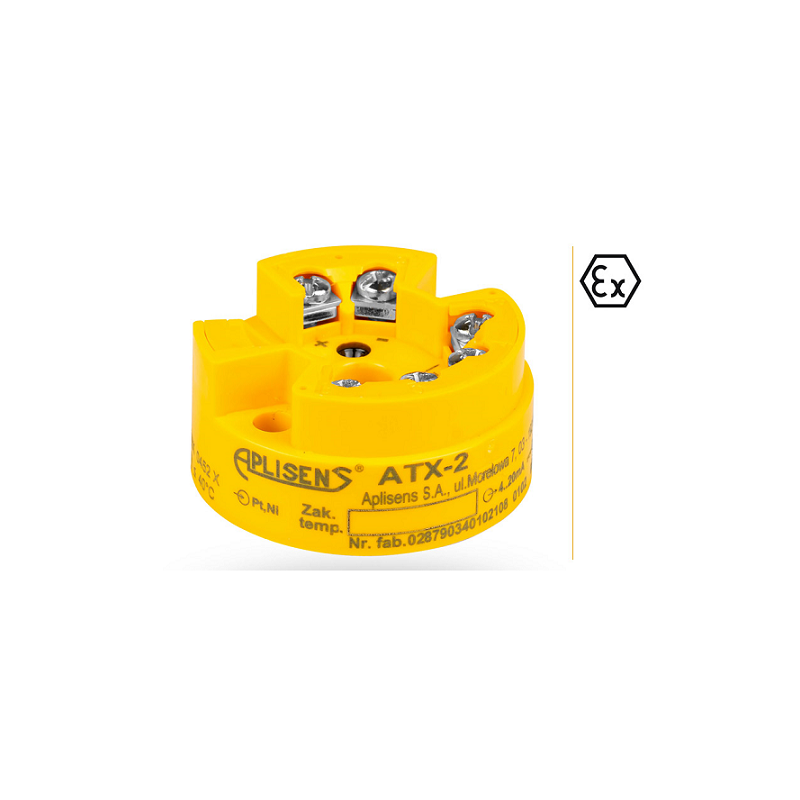

The temperature transmitters are applicable to converting resistance of temperature sensor to standard current signal 4…20mA. Most of parameters such as: sensor type, input signal, measuring range, may be adapted by user for specific requirements of his measuring system. User define type of sensor, measuring range in the order, the transmitter are programmed with required parameters and their values are printed on serial number label. Transmitter for head mounting.
Technical data
Input signal Pt,Ni
Min.measuring range 10°C
Output signal 4–20mA
Power supply 8…30VDC
Load resistance Ro[kΏ]<(U z –8V)/22mA
Alarm signal 21mAor3,5mA
Accuracy for ΔR>20Ώ ±0,2%
Thermal error ±0,05%/10°C
Ambient temperature -40…+85°C
