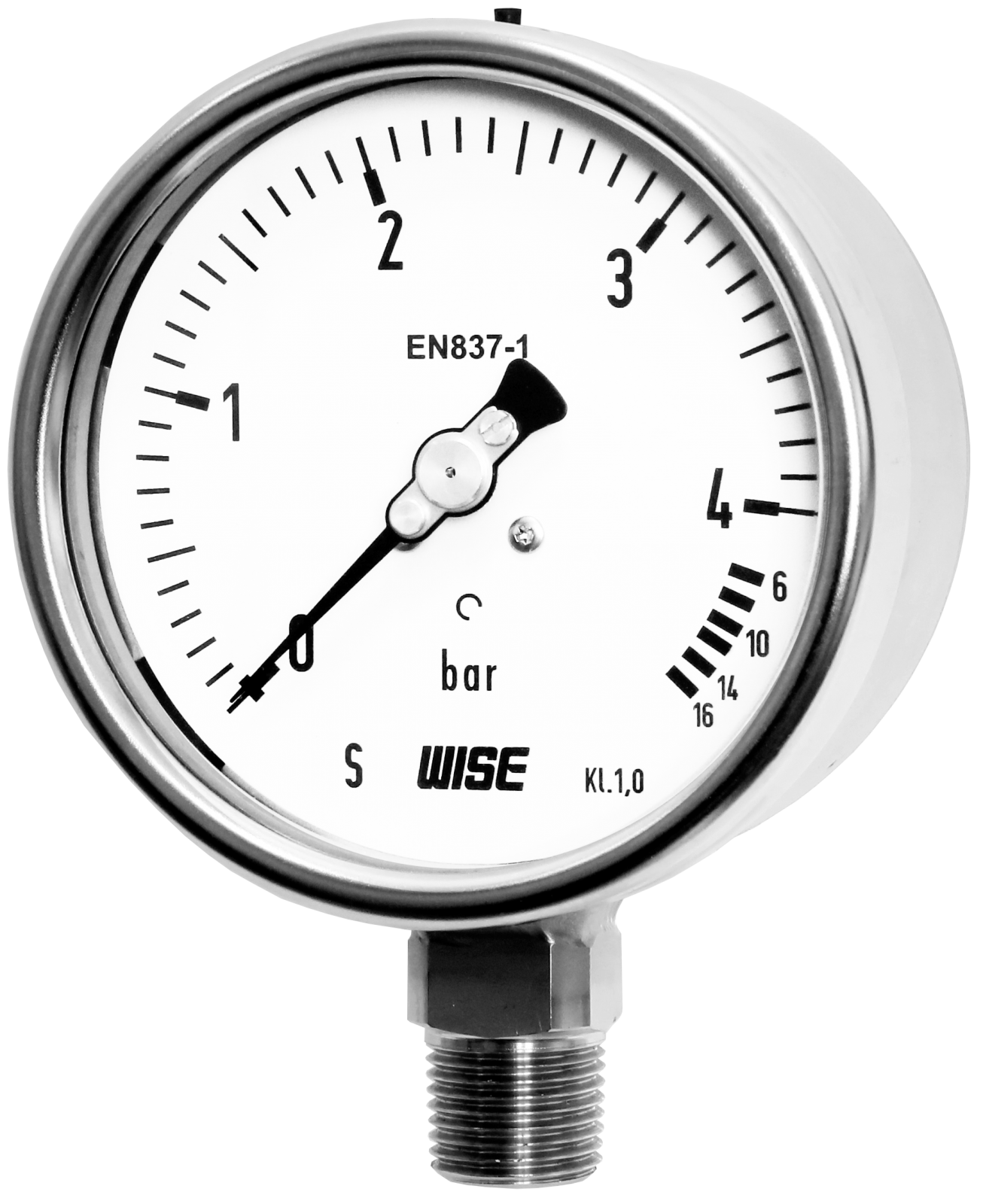

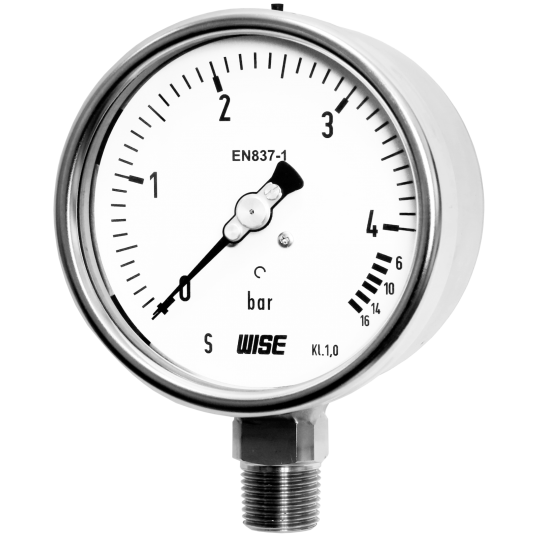

ĐỒNG HỒ ĐO ÁP SUẤT WISE P256

Nominal diameter: 100 and 160 mm
Accuracy: ±1.0% of measuring range
Scale range (MPa, kPa, bar): -0.1 ~ 0 to 0 ~ 4 MPa
Working pressure:
      Steady: 100% of full scale
      Over range protection: 4 times the measuring range
Working temperature:
      Ambient: -40 ~ 65℃
      -20 ~ 65℃ (With glycerin filling)
      -40 ~ 65℃ (With silicone filling)
Fluid:
      Max. 200℃
      Max. 100°C (With glycerin filling)
      Max. 100℃ (With silicone filling)
Degree of protection: EN60529/IEC529/IP67
Temperature effect: Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale
Pressure connection: Stainless steel (316SS)
Element: Stainless steel (316SS)
Case: Stainless steel (304SS)
Cover: Stainless steel (304SS), Bayonet type
Blowout protection:
      Solid front
      Blow-out back
Window: Laminated safety glass
Movement: Stainless steel
Dial: White aluminium with black graduations overpressure range indicated by a black sector
Pointer: Black painted aluminium alloy
Process connection: 3/8", 1/2" PT, NPT and PF
Option:
* Zero adjustable pointer
* Pressure connection and element: Monel
* Case and cover material: 316SS
