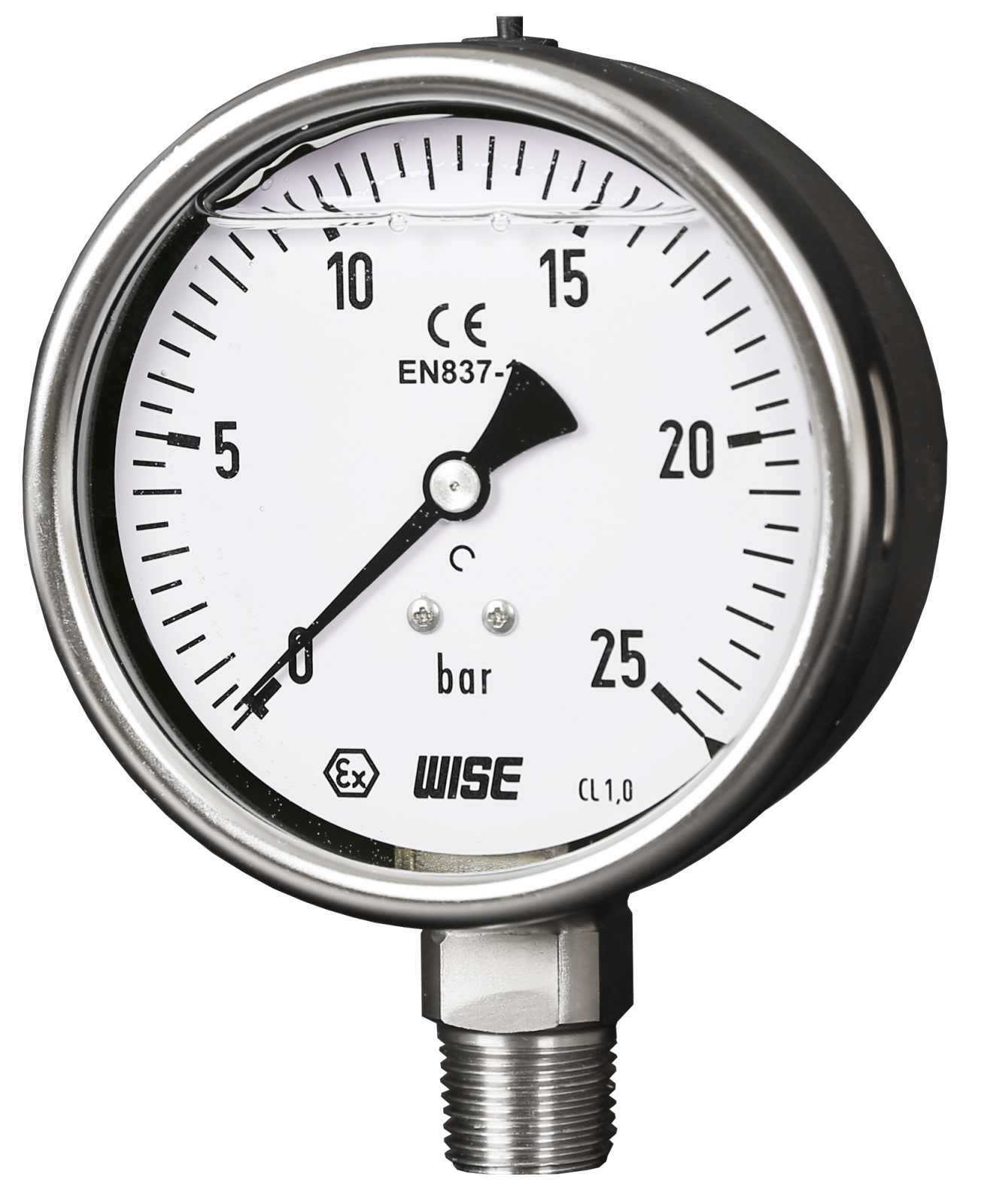

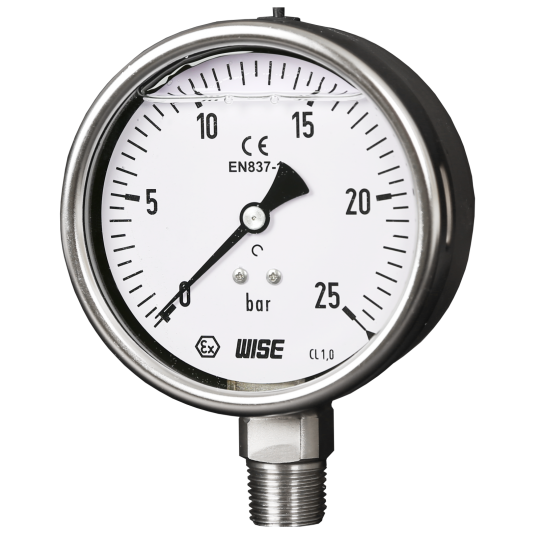

ĐỒNG HỒ ĐO ÁP SUẤT WISE P258

Nominal diameter: 63, 80, 100 and 160 mm
Accuracy:
      P2582 (63 mm) and P2583 (80 mm): ±1.6% of full scale
      P2584 (100 mm) and P2586 (160 mm):
            ±0.5% of full scale
            ±1.0% of full scale
Scale range (MPa, kPa, bar):
      63 and 80 mm: 0.1 ~ 0 to 0 ~ 100 MPa
      100 and 160 mm: 0.1 ~ 0 to 0 ~ 200 Mpa
Filling liquid: Glycerin
Working temperature
      Ambient: -20 ~ 65℃ (With glycerin filling)
      -40 ~ 65℃ (With silicone filling)
Fluid:
      Max. 100℃ (With glycerin filling)
      Max. 100℃ (With silicone filling)
Degree of protection: EN60529/IEC529/IP67
Temperature effect: Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale
Pressure connection: Stainless steel (316SS)
Element: Stainless steel (316SS)
Model: P2584 (100 mm) and P2586 (160 mm)
      <10 MPa: C type bourdon tube
      ≥10 MPa: Helical type bourdon tube
Model: P2582 (63 mm) and P2583 (80 mm)
      <6 MP : C type bourdon tube
      ≥6 MPa: Helical type bourdon tube
Blowout protection:
      Back, Rubber disc for 80, 100 and 160 mm
      Top, Rubber disc for 63 mm
Case: Stainless steel (304SS)
Cover: Stainless steel (304SS), Bayonet type
Window: Laminated safety glass
Movement: Stainless steel
Dial: White aluminium with black graduations
Pointer: Black painted aluminium alloy
Process connection:
      63 mm: ⅛", ¼" PT, NPT and PF
      80 mm: ¼", ⅜" PT, NPT and PF
      100 and 160 mm: ¼", ⅜", ½" PT, NPT and PF
Certificates:
* ATEX Ex II GD c IIc TX
* Pressure equipment directive (97/23/EC) - Annex III Module H
Option
* Zero adjustable pointer (Only available with diameter 100 and 160 mm)
* Zero adjustment (External) : 100 and 160 mm
* Pressure connection and element : Monel (Only available with diameter 100 and 160 mm)
* Silicone filling
