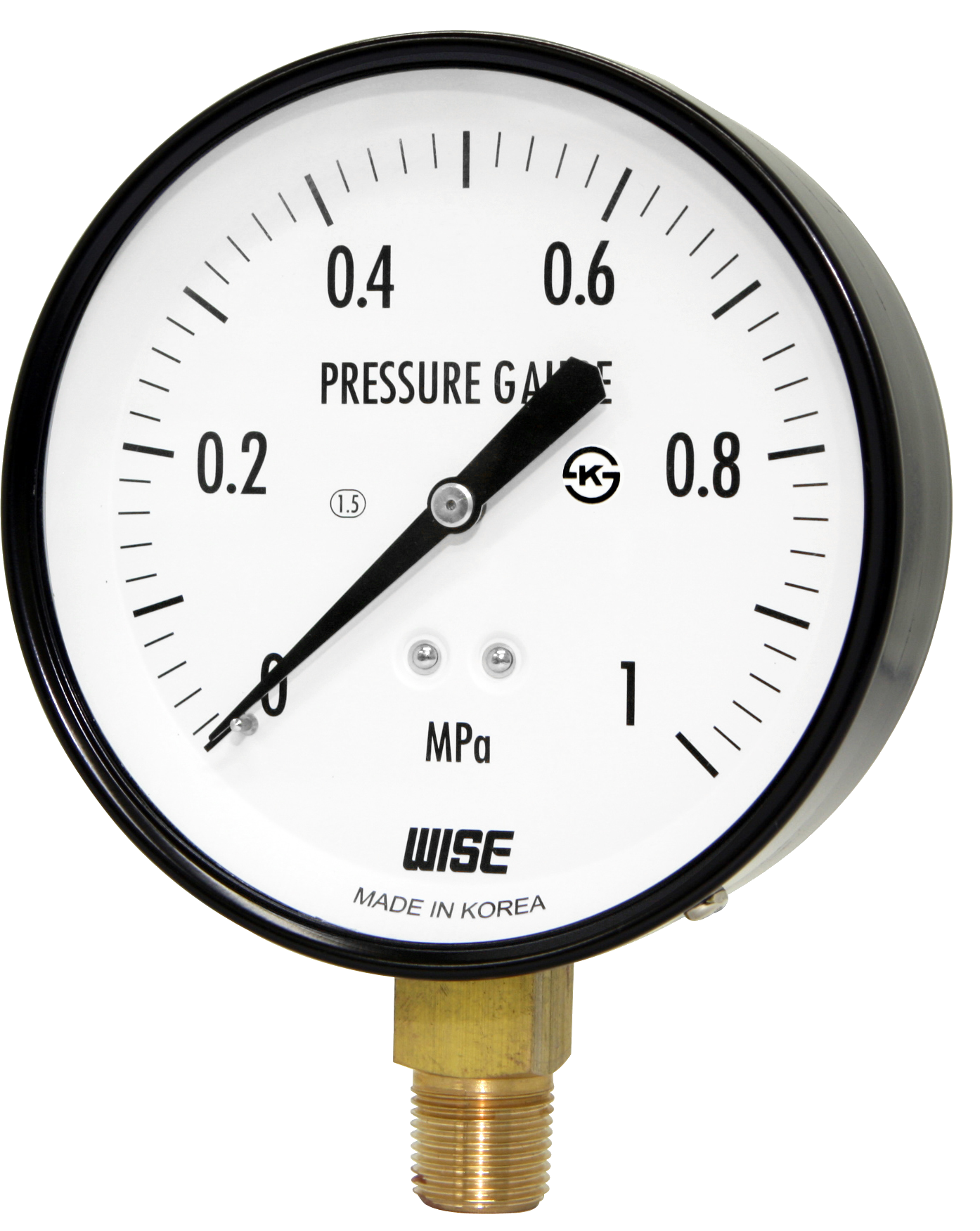

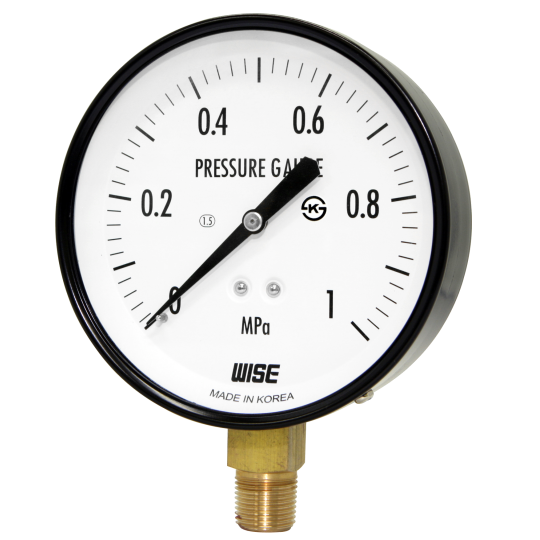

ĐỒNG HỒ ĐO ÁP SUẤT WISE P110

Nominal diameter: 40, 50, 60, 75, 100, 150 and 200 mm
Accuracy:
      40mm: ±3.0% of full scale
      50, 60, 75, 100, 150 and 200 mm: ±1.5% of full scale
Scale range (MPa, kPa, bar):
      40 mm: 0 ~ 0.2 to 0 ~ 3.5 MPa
      50 mm: 0 ~ 0.2 to 0 ~ 10 MPa
      60 and 75 mm: -0.1 ~ 0 to 0 ~ 25 MPa
      100 mm (New): -0.1 ~ 0 to 0 ~ 35 MPa
      100 and 150 mm: -0.1 ~ 0 to 0 ~ 100 MPa
      200 mm: -0.1 ~ 0 to 0 ~ 35 MPa
Working temperature
Ambient: -20 ~ 60℃
Fluid: Max. 60℃
Temperature effect: Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale
Pressure connection: Brass
Element:
      40 and 50 mm: Brass
      60, 75 and 100 mm (New):
            ≤10 MPa: Brass
            >10 MPa: 316SS
      100, 150 and 200 mm :
            ≤7 MPa: Brass
            >7 MPa: 316SS
            C type bourdon tube or helical bourdon tube
Case:
      Black finished steel
      Black finished aluminium (Diameter 200 mm)
Cover: Black finished steel
Window: Glass
Movement: Brass
Dial: White aluminium with black graduations
Pointer: Black painted aluminium alloy
Process connection:
      40 mm: 1/8" PT, NPT and PF
      50 mm: 1/8", 1/4" PT, NPT and PF
      60 mm: 1/4" PT, NPT and PF
      75 and 100 mm (New): 3/8" PT, NPT and PF
      100, 150 and 200 mm: 1/2", 3/8" PT
