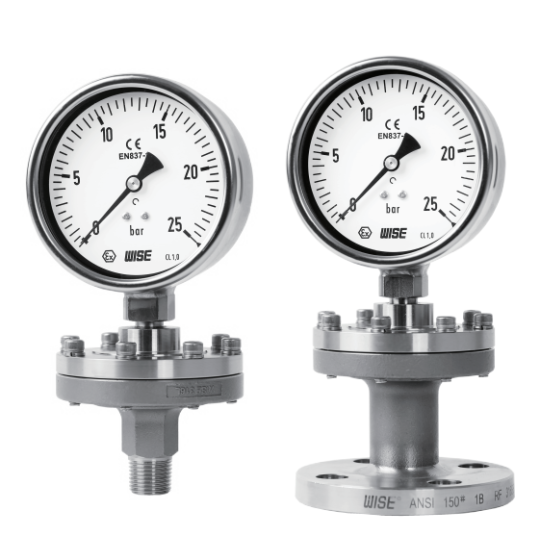

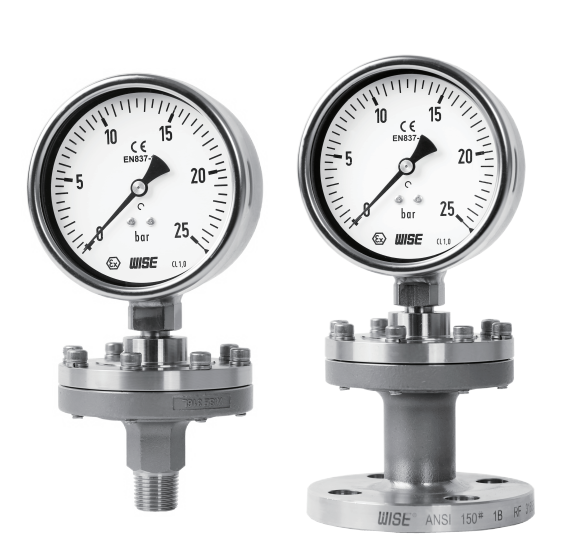

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG MÀNG WISE P730

Design: Internal diaphragm
Accuracy: Refer to gauge model
Suitable pressure range (MPa, kPa, bar):
      -0.1 ~ 0 to -0.1 ~ 2.5 MPa
      0 ~ 0.1 to 0 ~ 35 Mpa
Filling liquid: Silicone oil
Working temperature:
      Ambient: -20 ~ 65 °C (With Glycerin filling)
      -40 ~ 65 °C (With Silicone filling)
Fluid: Max. 100 °C
Diaphragm material: Diaphragms are available in many corrosion resistant materials. Compatibility of selected material and process fluid is the responsibility of user.
Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale
Process connection:
      Model P710: PT, NPT and others feasible
      Model P720, P730: Flanges to ANSI, JIS or other standard
Upper flange (Gauge side): Stainless steel (304SS, 316SS, Titanium))
Diaphragm:
      316L SS, Monel, Hastelloy-C
      Titanium, Tantalum, Nickel, Alloy20
Under flange (Process side):
      Stainless steel (304SS, 304L SS, 316SS, 316L SS)
      Monel, Hastelloy-C, Titanium, Nickel
Certificates: ATEX Ex II GD c IIC TX
Option:
* Diaphragm and under flange are available in PTFE coating or PTFE lining (★See note)
* Under flange (Process side) are available in purging plug or heating/cooling jacket
