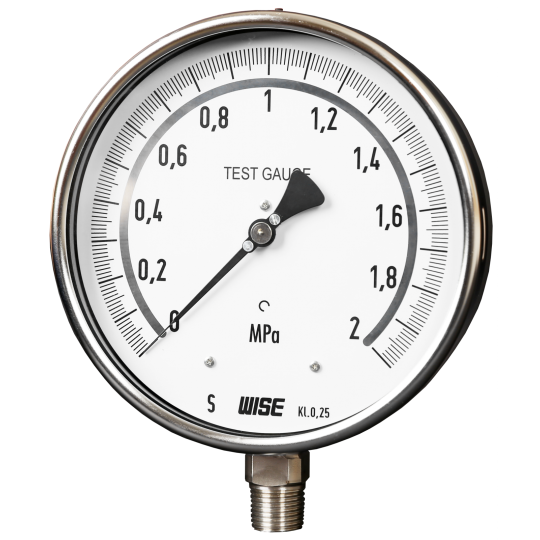

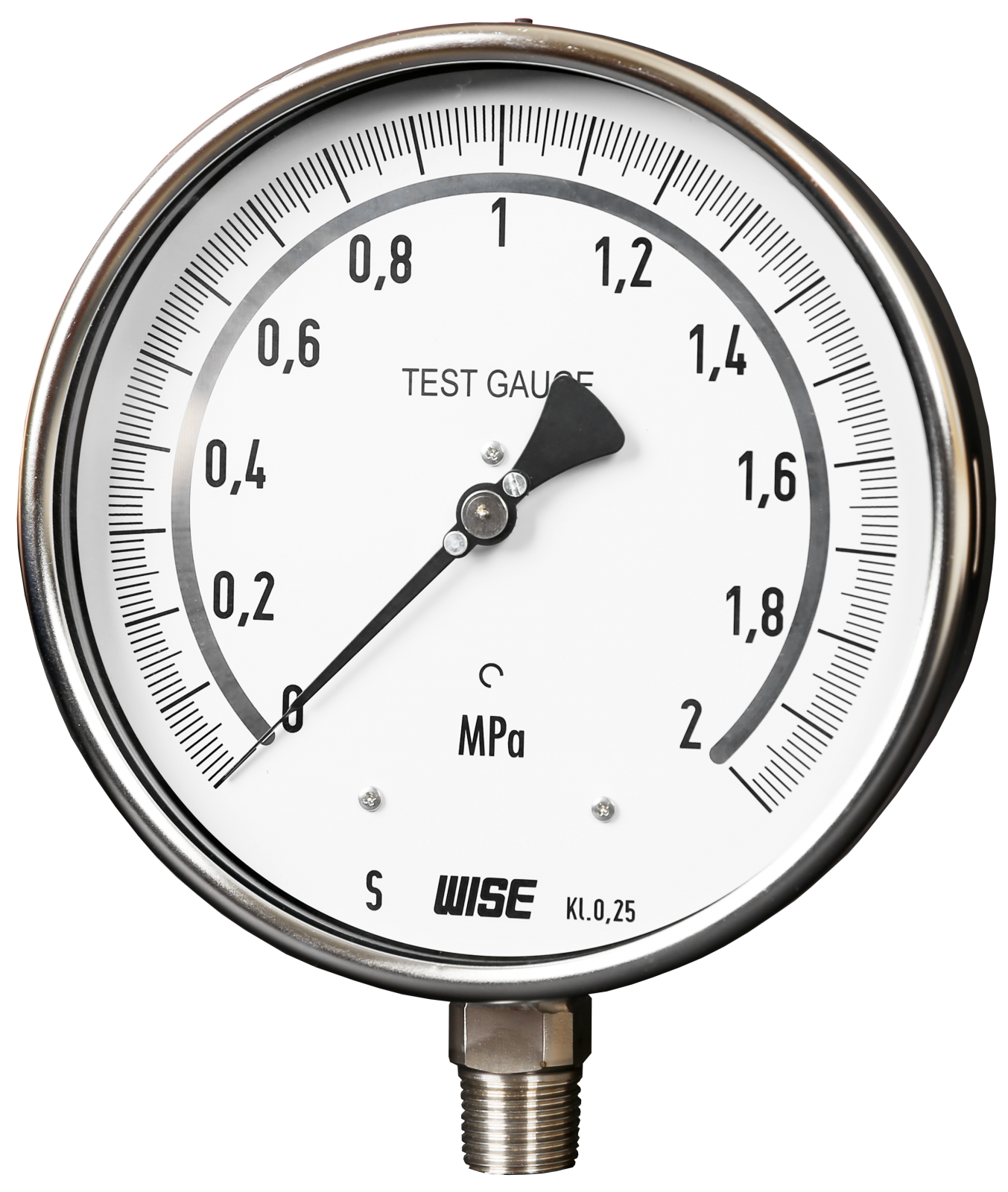

ĐỒNG HỒ ĐO ÁP SUẤT WISE P239

 P239 test pressure gauges are designed to check the accuracy of pressure instruments. Its use expands to a laboratory instruments for research shops and test labs. External adjustable dial and zero adjustable pointers are available for some models. It is an excellent choice for the process applications where high accuracy is a must.

Nominal diameter: 160 and 250 mm

Accuracy: ±0.25 % of full scale

Scale range (MPa, kPa, bar): 0 ~ 60 kPa to 0 ~ 100 MPa

Working pressure

Steady : Full scale value

Working temperature

Ambient : -40 ~ 65 ℃

Medium : Max. 100 ℃

Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately

±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection: Stainless steel (316SS)

Elemen: Stainless steel (316SS)

<100 bar : C type bourdon tube

≥100 bar : Helical type bourdon tube

Case:

160 mm - Stainless steel (304SS)

250 mm - Black painted aluminium, Solid front

Cover:

160 mm - Stainless steel (304SS), Bayonet type

250 mm - Black painted aluminium

Window: Safety glass

Movement: Brass

Dial: 270° mirror band scale

White aluminium with black graduations

Pointer: Black painted aluminium alloy

Zero adjustment

Internal (160 mm)

External (250 mm)

Process connection: ⅜", ½" PT, NPT and PF
