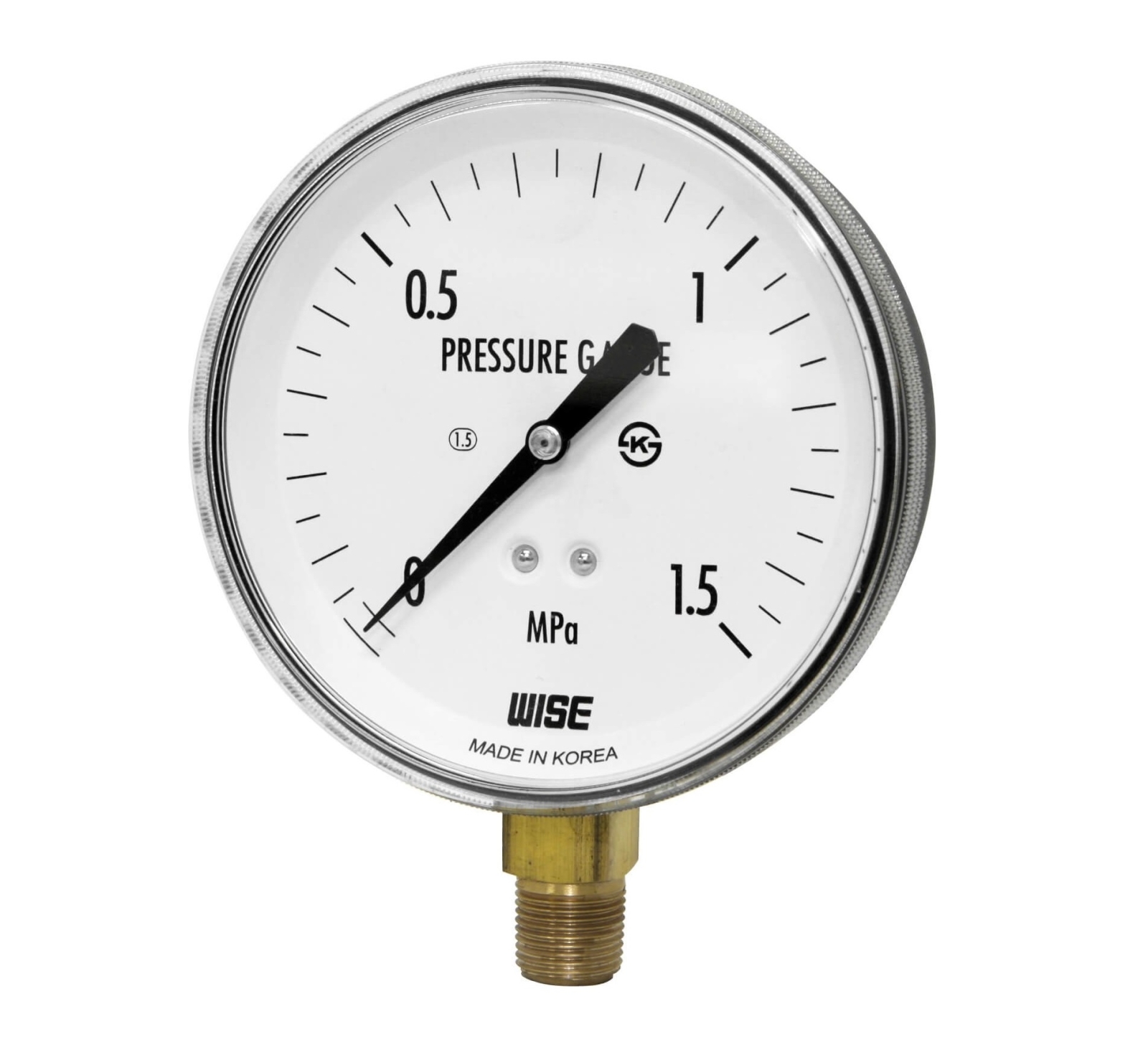

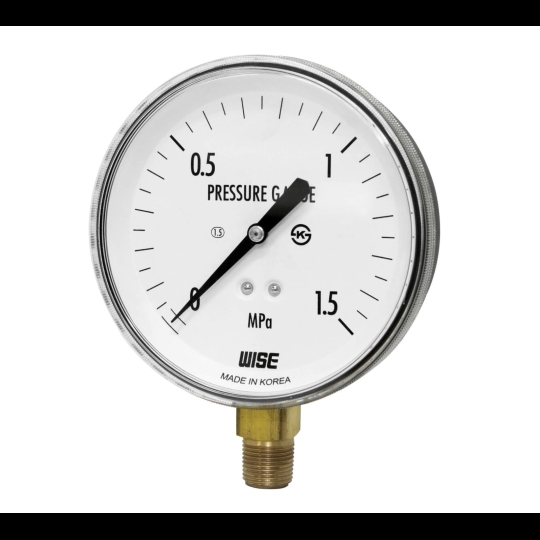

ĐỒNG HỒ ĐO ÁP SUẤT WISE P140

Nhà sản xuất: WISE/Korea

  • Liên hệ
  • 880

Nominal diameter
60 and 100 mm

Accuracy
60 and 100 mm: ±1.5% of full scale
Scale range (MPa, kPa, bar)
60 mm: -0.1 ~ 0 to 0 ~ 25 MPa
100 mm: -0.1 ~ 0 to 0 - 35 MPa
Working temperature
Ambient: -20 ~ 60℃
Fluid: Max. 60°C
Working pressure
Steady: 75% of full scale
Over range protection: 130% of full scale
Temperature effect
Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale

Pressure connection
Brass

Element
C type bourdon tube
60 and 100 mm :

≤10 MPa: Brass
>10 MPa: 316SS

Case
Polycarbonate

Cover
Polycarbonate

Movement
Brass

Dial
White aluminium with black graduations

Pointer
Black painted aluminium alloy

Process connection
60 mm: ¼" PT, NPT and PF
100 mm: ⅜" PT, NPT and PF
