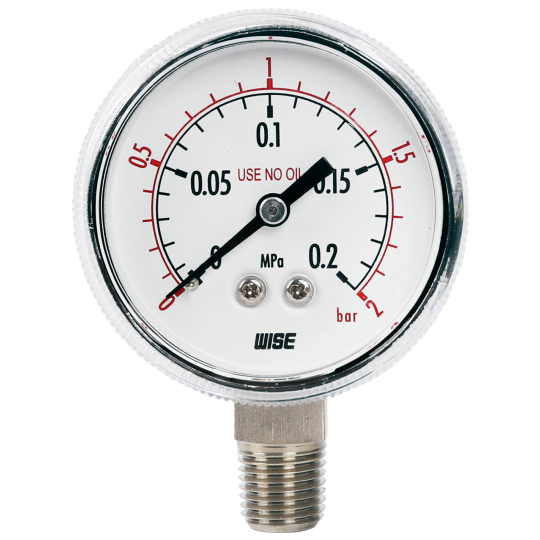

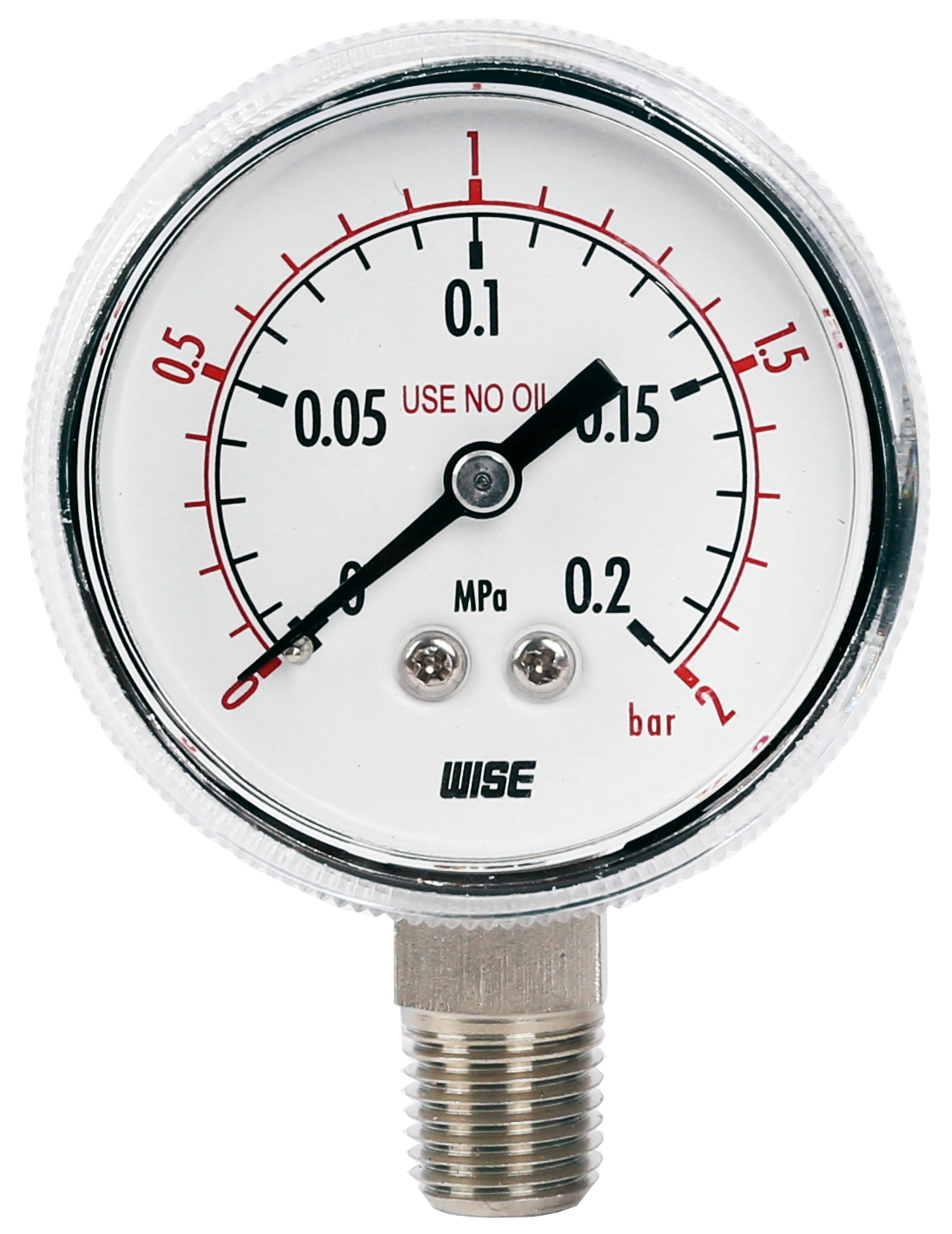

ĐỒNG HỒ ĐO ÁP SUẤT WISE P113

Nhà sản xuất: WISE/Korea

  • Liên hệ
  • 943

Nominal diameter
50 mm (2")

Accuracy
±1.6 % of full scale
Scale range (MPa, bar)
0 ~ 40 MPa
Working temperature
Ambient:  -40 ~ 65℃
Fluid: Max. 200℃
Working pressure
Steady: 75 % of full scale
Over range protection: 130 % of full scale
Temperature effect
Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale

Pressure connection
304SS

Element
Type 316L SS
<6 MPa: C-type bourdon tube
≥6 MPa: Helical type bourdon tube

Case
Nickel plated steel

Movement

Brass

Dial
White aluminium with pointer stop pin
With black/red lettering, dual pressure scale (bar/psi and MPa/bar)

Ring and window
Twist-lock polycarbonate

Pointer
Black painted aluminium alloy

Process connection
¼" NPT
