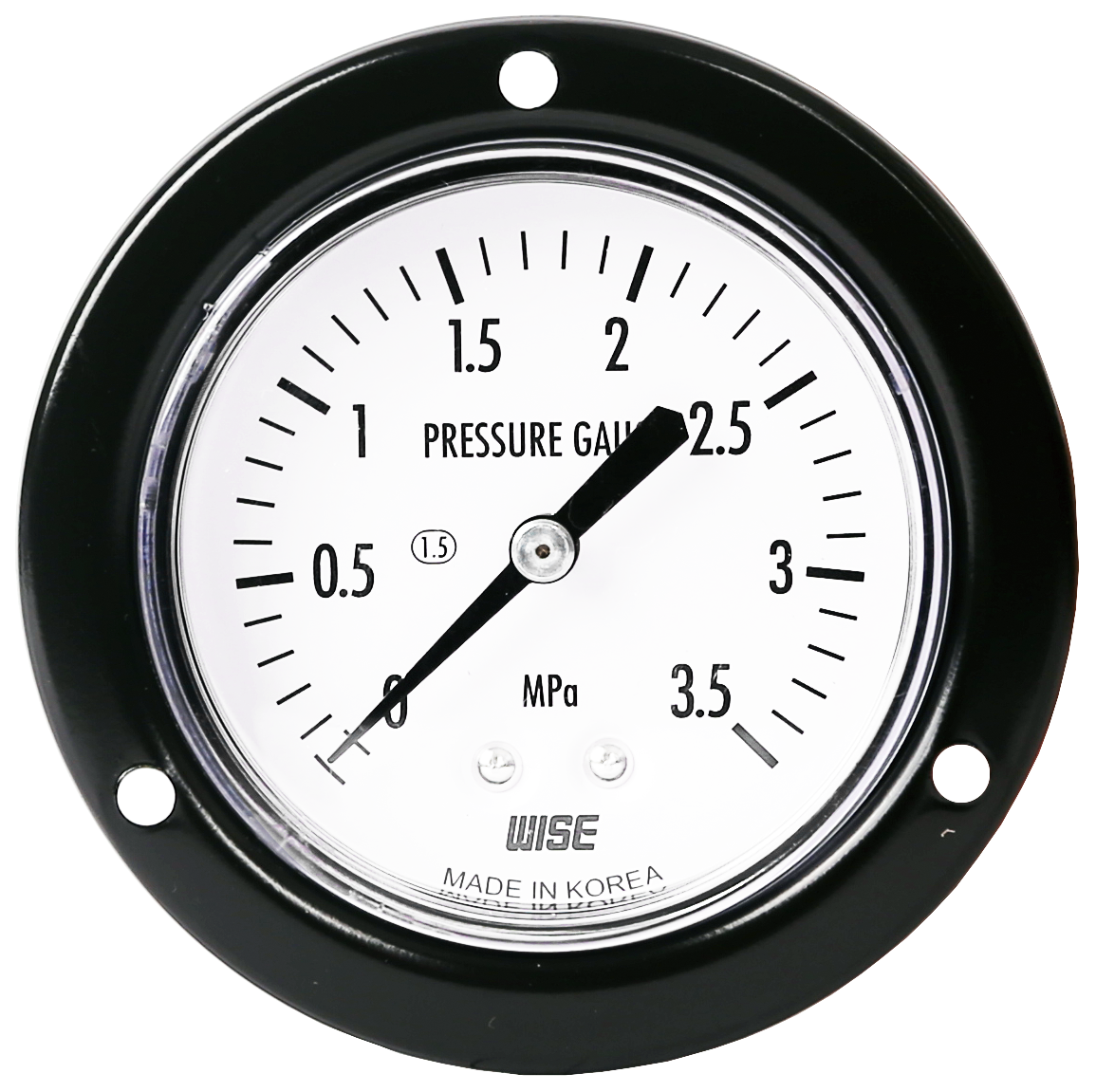

ĐỒNG HỒ ĐO ÁP SUẤT WISE P112

P112 series are designed to withstand the shock, the vibration and the pulsation which could be generated from freon gas service.

Nominal diameter: 60 and 75 mm

Accuracy: ±1.5 % of full scale

Scale range (MPa, kPa, bar)

60mm : -0.1 ~ 0.2, 0.4, 1.0, 1.5, 2.0 MPa

0 ~ 2.5, 0 ~ 3.5 MPa

75mm : -0.1 ~ 0.2, 0.4, 1.5 MPa

0 ~ 3.5 MPa

Working pressure

Steady : 75 % of full scale

Over range protection : 130 % of full scale

Working temperature

Ambient : -20 ~ 60 ℃

Fluid : Max. 60 °C

Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately

±0.4 % per 10℃ of full scale

Standard features

Pressure connection: Brass

Element: Brass

C type bourdon tube

Case: Black finished steel

Window: Polycarbonate (60 mm) Glass (Only 75 mm)

Movement: Brass

Dial: White aluminium with black graduations

Pointer: Black painted aluminium alloy

Process connection

7/16" UNF

¼" PT, NPT and PF

⅜" PT, NPT and PF (Only 75 mm)
