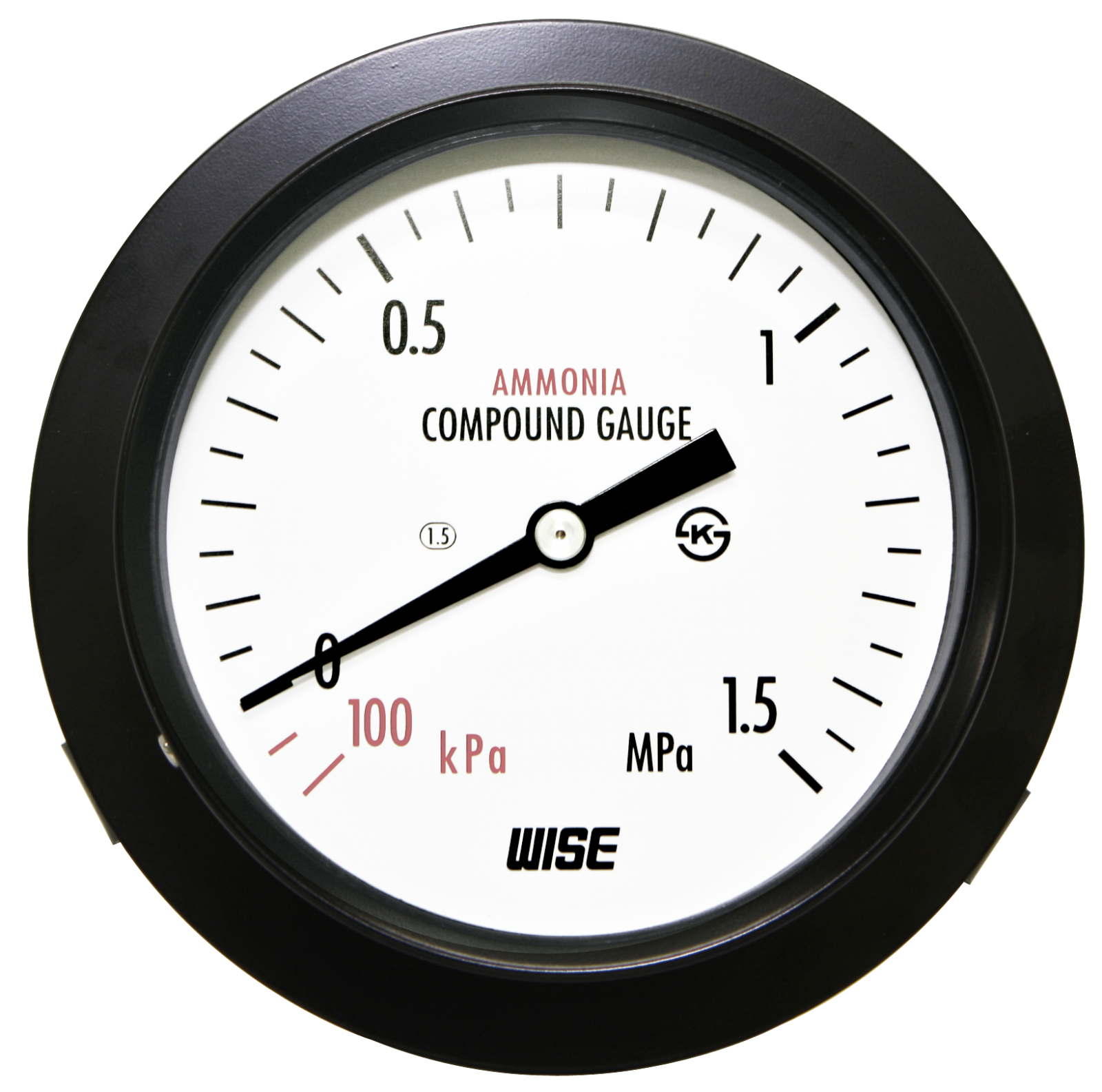

ĐỒNG HỒ ĐO ÁP SUẤT WISE P111

Nominal diameter: 60, 75 and 100 mm
Accuracy: ±1.5% of full scale
Scale range (MPa, kPa, bar): -0.1 ~ 1, 1.5, 2 MPa
Working temperature:
      Ambient: -40 ~ 65℃
Fluid: Max. 200℃
Working pressure:
      Steady: 75% of full scale
      Over range protection: 130% of full scale
Temperature effect: Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale
Pressure connection: 316SS
Element: 316SS
      C type bourdon tube
Case: Black finished steel
Cover: Black finished stee
Window: Glass
Movement: Brass
Dial: White aluminium with black graduations
Pointer: Black painted aluminium alloy
Process connection: 1/4" PT, 3/8" PT and PF
