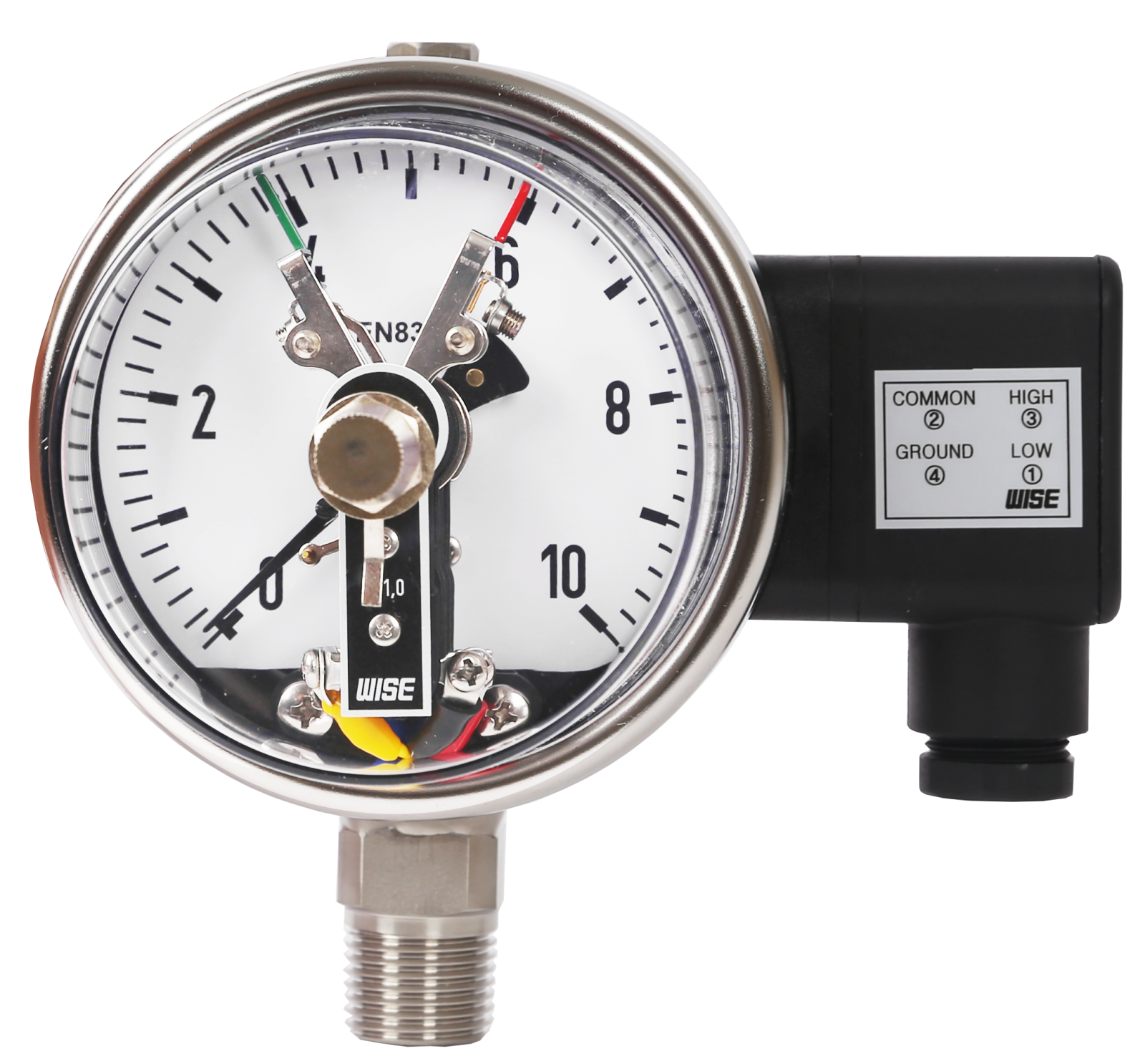

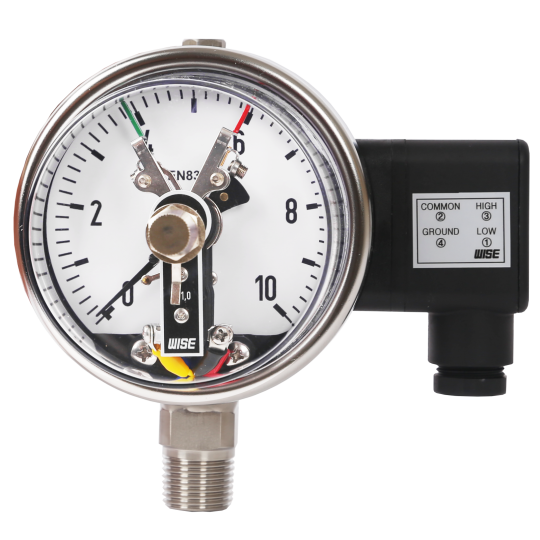

ĐỒNG HỒ ĐO ÁP SUẤT TIẾP ĐIỂM ĐIỆN WISE P510

Nhà sản xuất: WISE/Korea

  • Liên hệ
  • 1437

Nominal diameter
100 and 160 mm

Accuracy
±1.0% of full scale
Scale range (MPa, kPa, bar)
-0.1 ~ 0 to 0 ~ 200 MPa
Working pressure

Steady: 100% of full scale
Over range protection: 130% of full scale

Working temperature
Ambient: -40 ~ 65°C
Fluid: Max. 100°C

Degree of protection
EN60529/IEC529/IP67
Temperature effect
Accuracy at temperature above and below the reference temperature (20
) will be effected by approximately ±0.4% per 10 of full scale
Pressure connection
Stainless steel (316SS)

Element
Stainless steel (316SS)
<10 MPa: C type bourdon tube
≥10 MPa: Helical type bourdon tube

Case
Stainless steel (304SS)

Bezel ring
Stainless steel (304SS)
Bayonet type

Window
Polycarbonate

Movement
Stainless steel

Dial
White aluminium with black graduations

Pointer
Black painted aluminium alloy

Conduit connection
M20 x 1.5

Process connection
⅜", ½" PT, NPT and PF

Certificates
Pressure equipment directive (97/23/EC) Annex III Module H

Option
Damping movement
