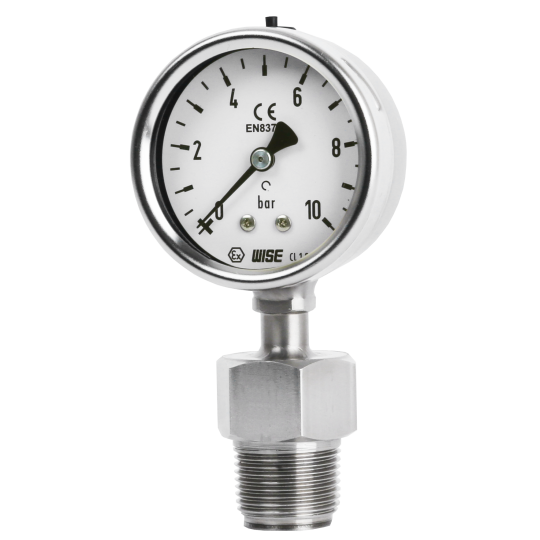

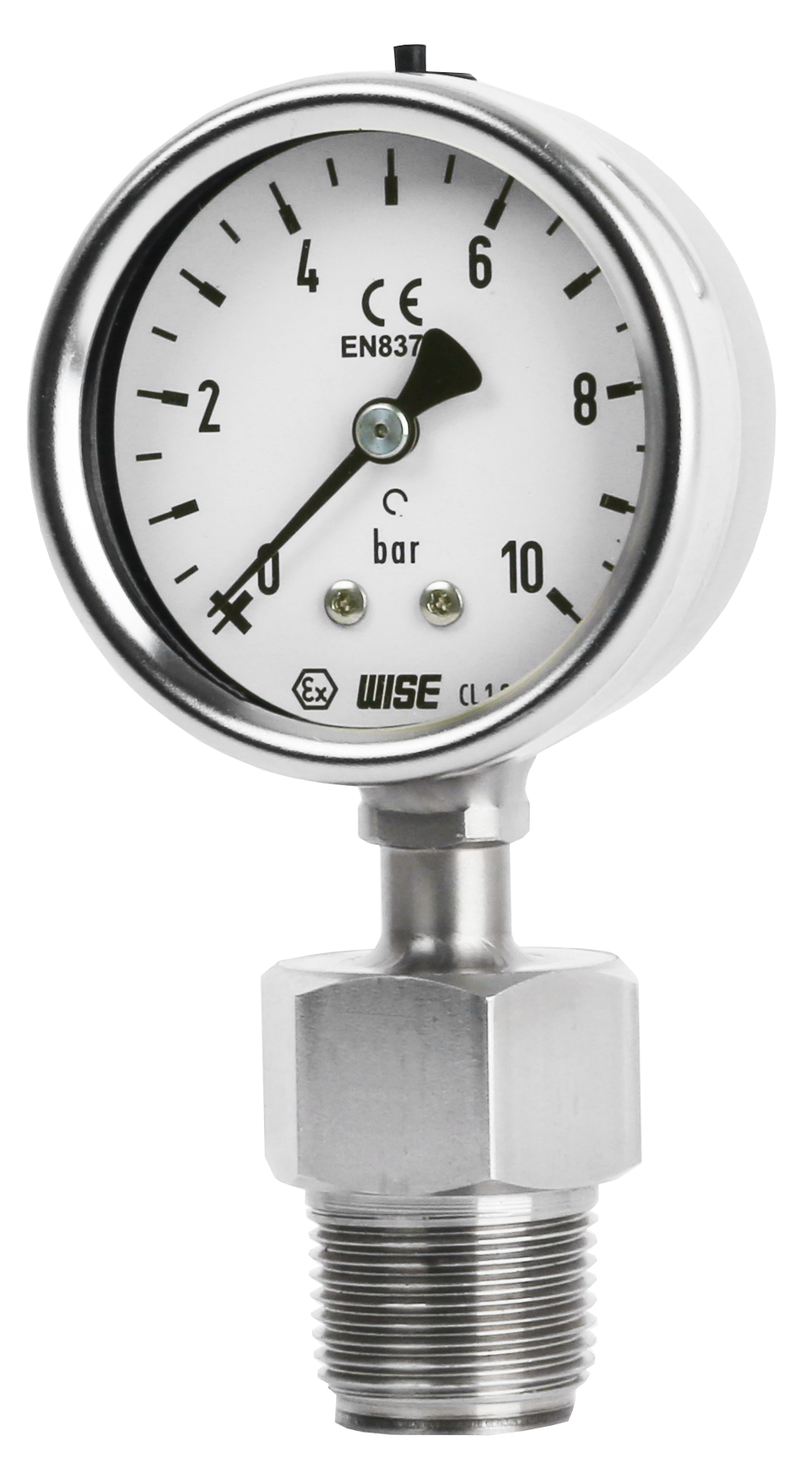

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG MÀNG WISE P757

Nominal diameter: 63, 80 and 100 mm
Accuracy:
      63 and 80 mm: ±1.6 % of full scale
      100 mm: ±1.0 % of full scale
Scale range: (MPa, kPa, bar)
Refer to pressure unit and range table
Depending on diaphragm size and process conditions
Working pressure:
      Steady: 75 % of full scale
      Over range protection: 130 % of full scale
Working temperature:
      Ambient: -20 ~ 65 °C
Fluid: Max. 100 °C
Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale
Body: Stainless steel (316SS)
Process connection:
      Stainless steel (316SS)
      Screw connection
Diaphragm: Stainless steel (316L SS)
Certificates: ATEX Ex II GD c IIC TX
