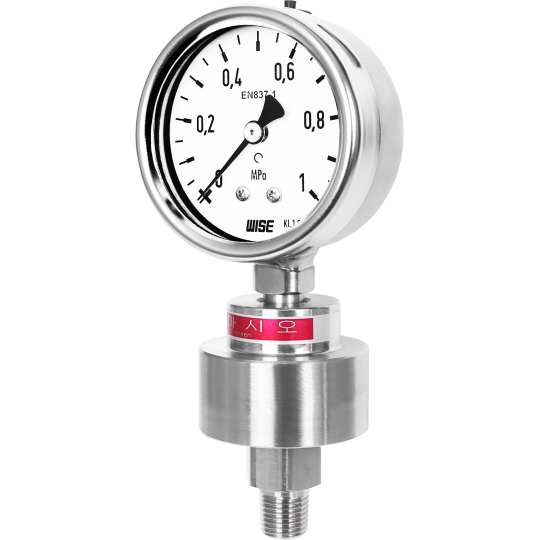

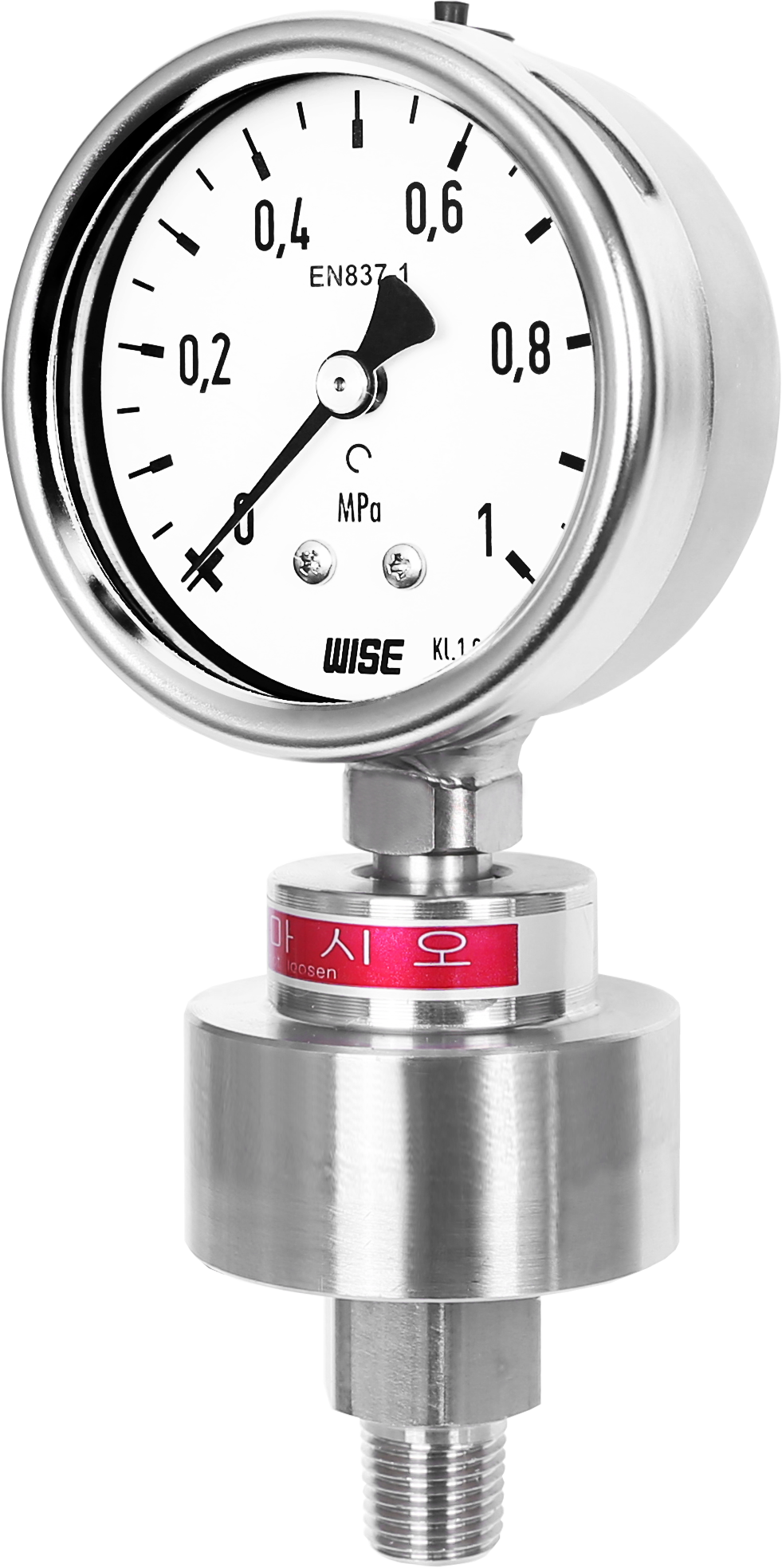

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG MÀNG WISE P701

Design: Internal diaphragm, upper and under flange welded no sealing and compact design
Accuracy:
      P2522 (63 mm) and P2523 (80 mm): ±1.6% of full scale
      P2524 (100 mm): ±1.0% of full scale
Scale range (MPa, kPa, bar):
      -0.1 ~ 0 to -0.1 ~ 2.4 Mpa
      0 ~ 0.1 to 0 ~ 25 Mpa
Filling liquid: Silicone oil
Working pressure:
      Steady: 75 % of full scale (63 and 80 mm)
      100 % of full scale (100 mm)
      Over range protection: 130 % of full scale
Working temperature:
      Ambient: -20 ~ 65 °C
Fluid: Max. 100 °C
Degree of protection: EN60529/IEC529/IP65
Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale
Pressure connection (Gauge side): Stainless steel (316SS)
Diaphragm: 316L SS, Hastelloy-C, Tantalum, Monel
Diaphragm outer diameter: 40 or 48 mm
Under flange (Process side): 316SS, 316L SS, Monel, Hastelloy-C
Process connection:
      1/4", 3/8", 1/2" PT, NPT and PF
      1/4" PT and NPT (F)
