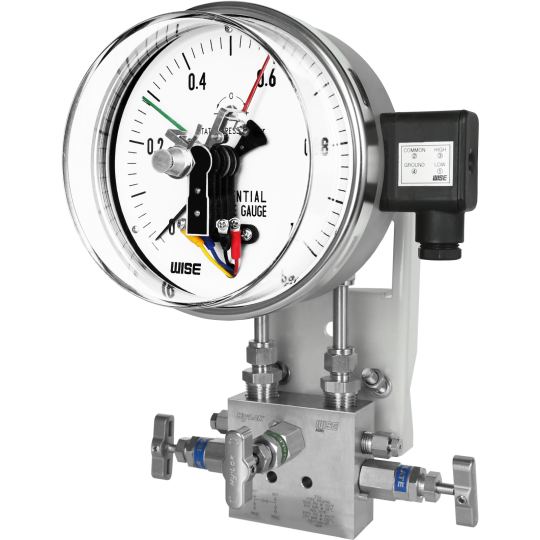

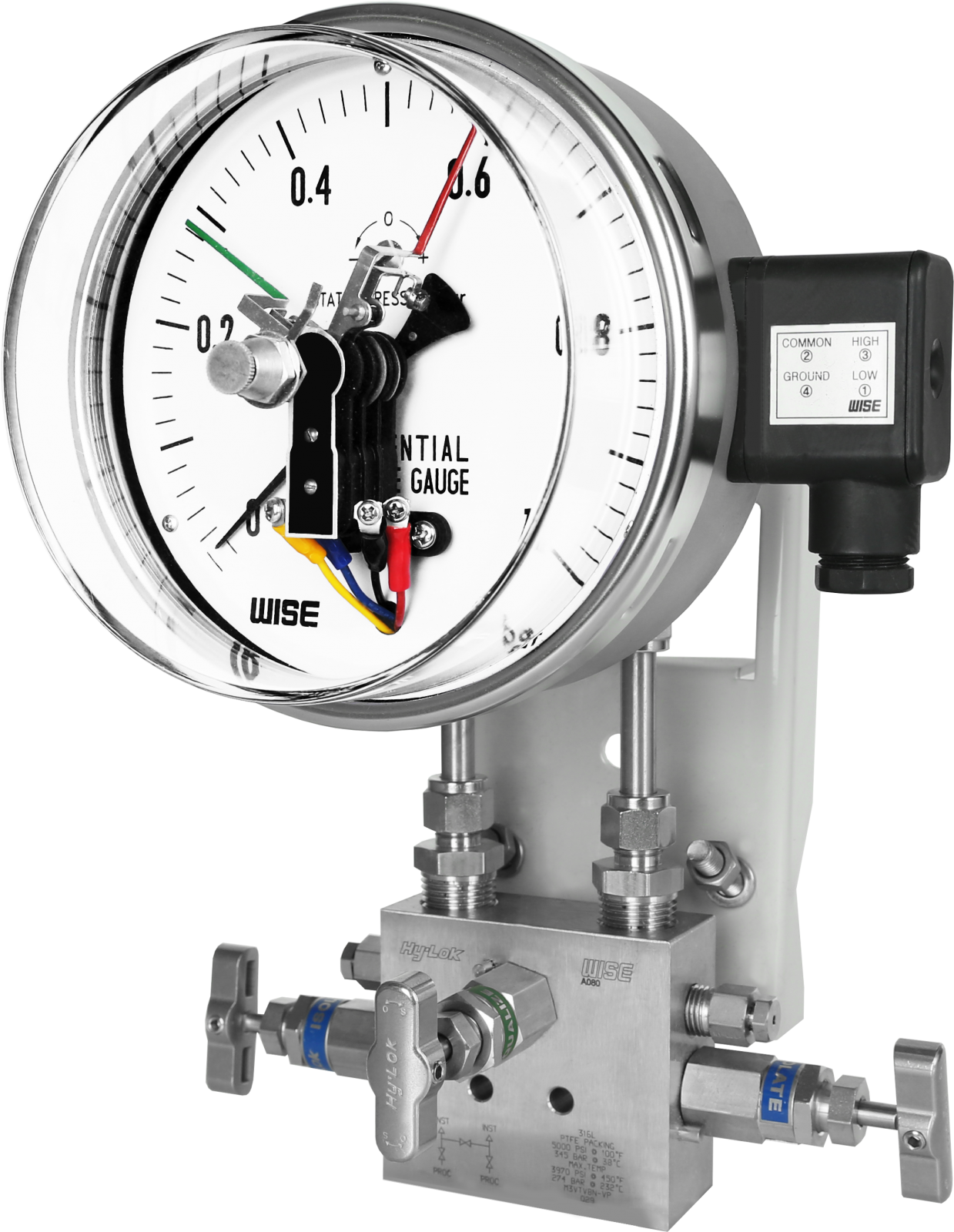

ĐỒNG HỒ ĐO ÁP SUẤT CHÊNH ÁP CÓ TIẾP ĐIỂM ĐIỆN WISE P690

P690 differential pressure gauge series are designed to measure differential pressure from 25 kPa to 2.0 MPa at static pressure up to 10 MPa and have inductive contact. P690 series are designed to control alarm for differential pressure, providing the right time to replace air and sludge filter during the process.

Nominal diameter: 160 mm

Accuracy: ±1.6 % of full scale

Scale range (MPa, kPa, bar, mbar)

0 ~ 25 kPa to 0 ~ 0.25 MPa

0 ~ 0.4 MPa to 0 ~ 2 MPa

Static pressure

Max. 10 MPa

Working temperature

Ambient : -20 ~ 65 °C

-40 ~ 65 °C (With silicone filling)

Fluid : Max. 100 °C

Degree of protection: EN60529/IEC529/IP67

Temperature effect: Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately

±0.5 % per 10 ℃ of full scale

Standard features

Pressure connection: Stainless steel (316SS)

Element:

Bellows

Stainless steel (316L SS)

Case and cover: Stainless steel (304SS) Bayonet type

Dial: White aluminium with black graduations

Window: Polycarbonate

Pointer: Black painted aluminium alloy

Contact: Inductive contact

Conduit connection: M20 x 1.5P

Process connection

¼" NPT(F)

½" NPT(F) at 3-way and 5-way manifold valve

Standard accessories:

* Mounting bracket for 2” pipe

* Mounting with silver gray finished steel

Certificates

NEPSI Ex ia IIC T6 Ga

KCS Ex ia IIC T6

Tamb = -25 ~ 56 ºC

Option

* Remote seal

* ½" (N)PT female conduit connection

* ¾" (N)PT female conduit connection

* Mounting bracket with 316SS for 2" pipe mounting

* 3-way manifold valve (316SS)

* 5-way manifold valve (316SS)

* 3-way manifold valve (Monel)

* 5-way manifold valve (Monel)
