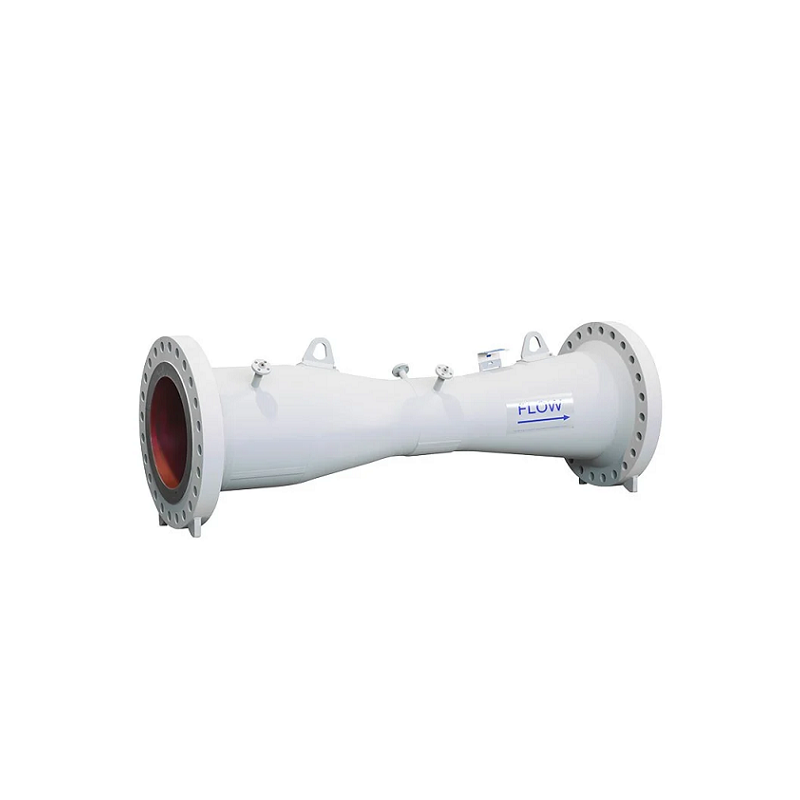

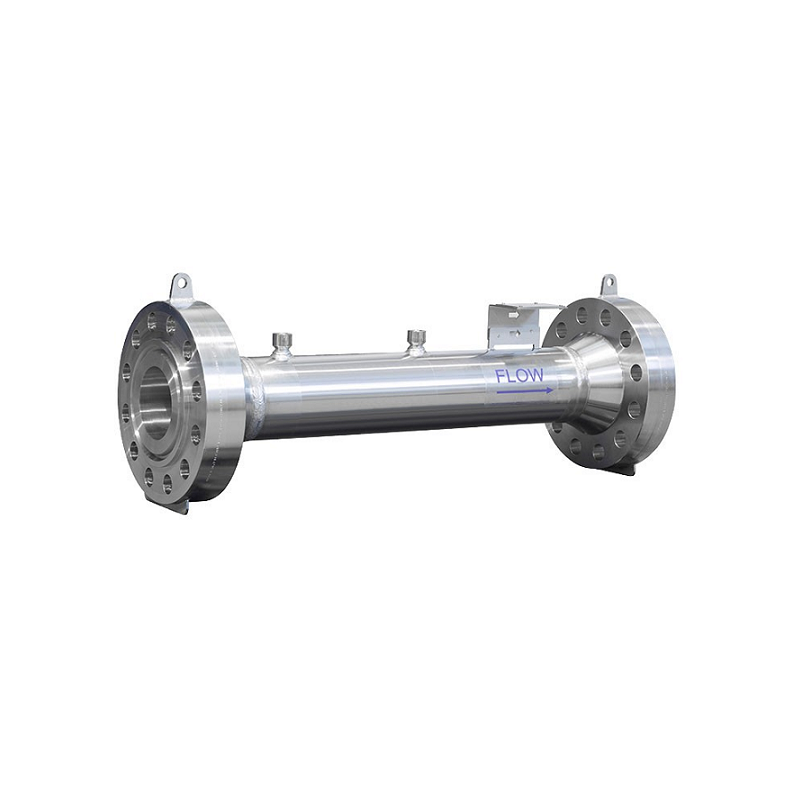

WIKA Venturi tube Models FLC-VT-BAR, FLC-VT-WS

Applications

* Power generation

* Oil production and refining

* Water treatment and distribution

* Gas processing and transmission

* Chemical and petrochemical industry

Special Features

* Suitable for liquid, gas and steam flow measurement

* Accuracy ≤ ±0.5 % of actual flow rate

* Repeatability of measurement 0.1 %

* Lowest pressure loss in the family of primary flow elements

* Calibration may be performed if required

Description

High pressure recovery and low upstream and downstream requirements
Venturi tubes are reliable, easy to use and low-maintenance Venturi tubes are particularly suitable for the measurement of clean liquids and gases. The main advantages of a Venturi tube over other differential pressure flow meters are the higher pressure recovery and the lower upstream and downstream pipe requirements. At the upstream side, the instrument consists of a gradually decreasing nozzle, through which the medium in a pipe is accelerated. The downstream side is a gradually increasing diffuser section, which enables a high pressure recovery.

Flow measurement with low differential pressures
Due to the fact that a major part of the output pressure is regained, the Venturi tube is particularly suited for measurement in systems with a low pressure differential. Thanks to the low pressure loss the cost of pumping the medium can be reduced to a minimum.
