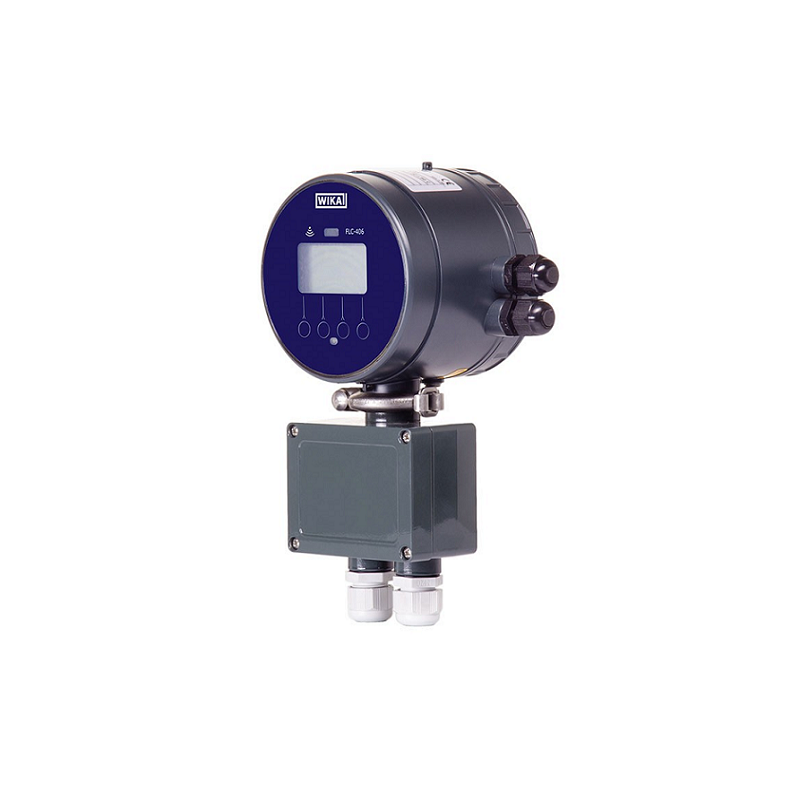

WIKA Battery-powered signal converter Model FLC-406

Applications

* Water and wastewater

* Water treatment and distribution

* Leakage detection systems

* Applications without access to the power supply network

* Water revenue and bulk metering

Special features

* Approved for custody transfer (MID MI-001, OIML R49)

* Available as a compact or separated version

* Battery-powered (standard), DC 12 ... 24 V (optional)

* Module for pressure and temperature readout available

Description

The model FLC-406 is a battery-powered signal converter which is perfectly suited for applications without access to mains supply. A battery life of up to 10 years enables maintenance-free and economical operation.

The model FLC-406 can be combined with all electromagnetic flow meters from WIKA. With the model FLC-2300 flow meters, even low flow velocities from 0.015 m/s can be measured without problems.

The integrated EEPROM memory (“electrically erasable programmable read-only memory”) ensures high data security. Up to 100,000 data sets can be saved.

With the supplied software, the model FLC-406 can communicate via IrCOM or Modbus RS-485 interface with a PC, laptop or mobile device to program the signal converter and to manage and download measured values.

A multi-level password system guarantees data access for authorised users only.
