WIKA Hybrid signal converter Model FLC-608

Applications

* Water and wastewater

* Chemical industry

* Pulp and paper industry

* Leakage detection systems

* Applications without access to the power supply network

Special features

* Power supply via power supply network, battery, power supply network and battery or solar panel

* HART^® protocol and module for pressure and temperature readout available

Description

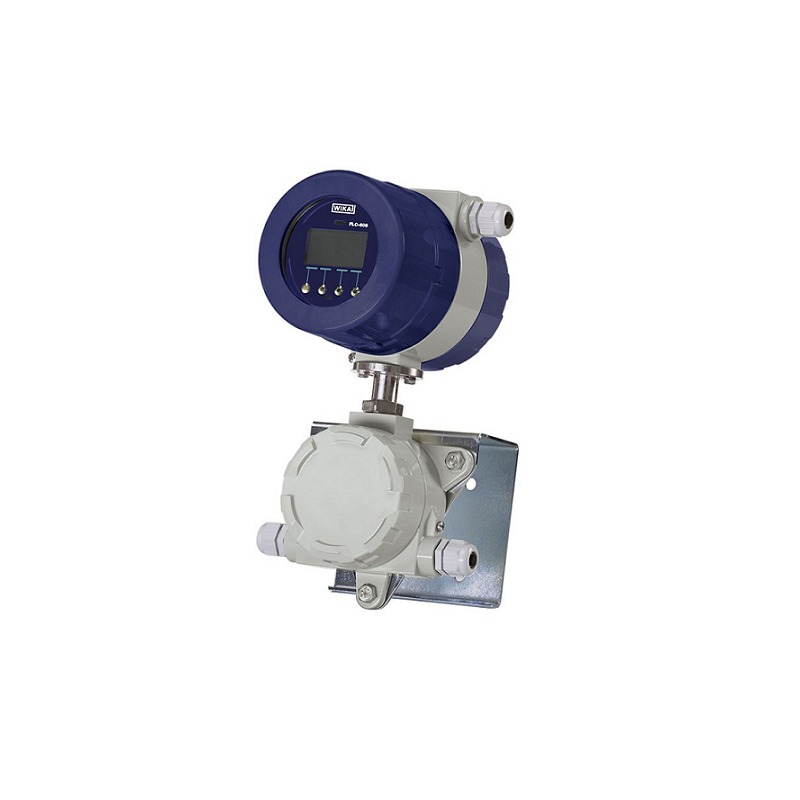

Versatile in application: The model FLC-608 hybrid signal converter is available in many versions and can also be used in remote applications that do not have access to the power supply network.

Data security: The integrated EEPROM memory (“electrically erasable programmable read-only memory”) ensures high data security. Up to 200,000 data sets can be saved. With the supplied software, the model FLC-608 can communicate via IrCOM or Modbus RS-485 interface with a PC, laptop or mobile device to program the signal converter and to manage and download measured values.

A multi-level password system guarantees data access for authorised users only.

Additional modules: With the available pressure and temperature readout modules and the optional HART^® protocol, the signal converter for electromagnetic flow meters can be used to monitor the process parameters of flow, pressure and temperature.

Recording the measured values in one instrument saves the cost of installation, programming and maintenance of further measuring instruments.
