WIKA Top-mounted level indicator Model UTN

Applications

 *Chemical, petrochemical, natural gas, offshore industries

 *Shipbuilding, machine building

 * Power generating equipment, power plants

 * Pharmaceutical, food and beverage industries, process water and drinking water treatment

Special features

* Process- and procedure-specific production

* Operating limits:

• Operating temperature: T = -60 ... +300 °C

• Operating pressure: P = Vacuum to 40 bar

* Wide variety of different process connections

* Mounting of level sensors and magnetic switches possible as an option

* Explosion-protected versions

Description

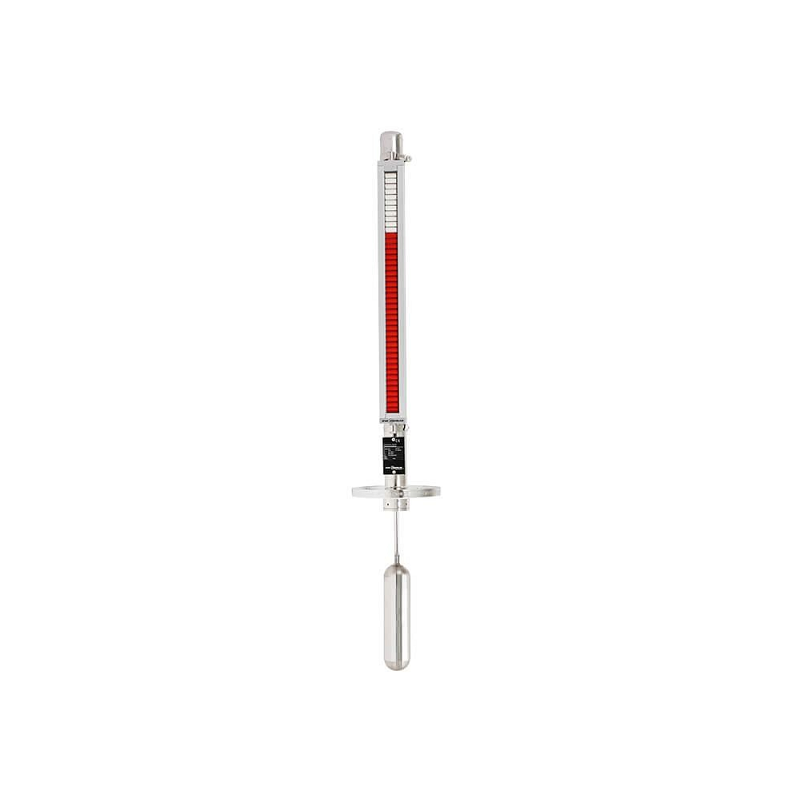

The model UTN top-mounted level indicator consists of a measuring chamber, a float with guide rod and a magnetic system. Mounting onto the vessel is made via appropriate process connections (flange, thread). The permanent magnetic system, which is connected to the float via a guide rod, transmits the liquid level measured in the vessel by the float, contact-free, to the magnetic display mounted to the outside of the measuring chamber.

In this magnetic display there are red/white plastic rollers or stainless steel flaps with bar magnets fitted at 10 mm intervals. The magnetic rollers or flaps are turned 180° through the walls of the measuring chamber. For an increasing level from white to red; for a falling level from red to white. Thus the magnetic display indicates the level of a vessel as a red column, without power supply.
