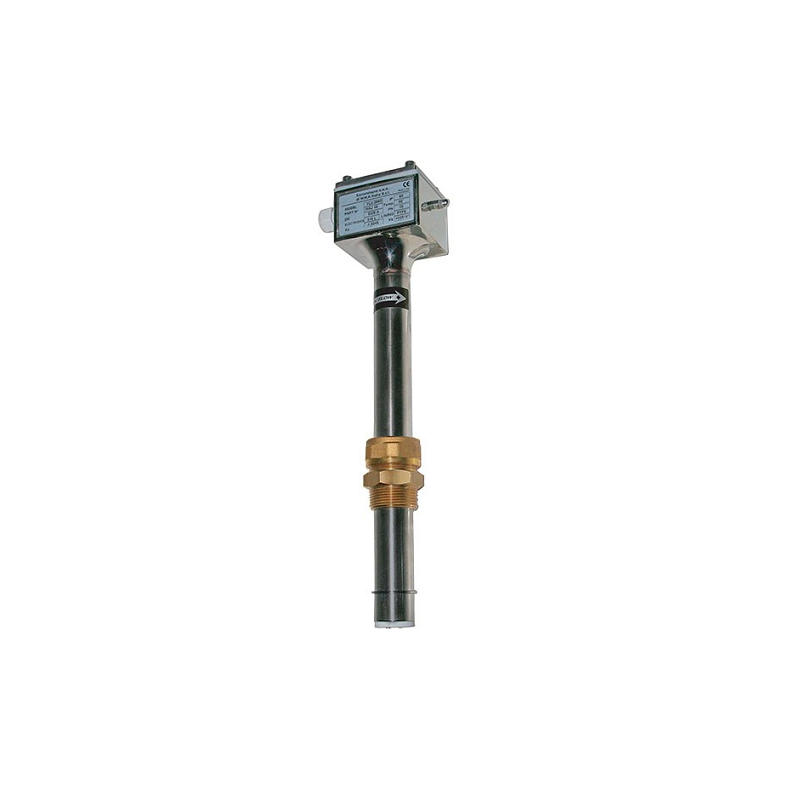

WIKA Flow meter Model FLC-2660

Applications

* Water distribution monitoring

* Leakage detection systems

* Data acquisition and analysis

Special features

* Suitable for small pipes (80 ... 500 mm)

* No moving parts

Description

The model FLC-2660 flow meter is an efficient solution when low costs and good performance are needed. It is suitable for small pipes between 80 mm and 500 mm with a maximum pressure of 10 bar.

The measuring instrument is installed using a welded brass bushing on the flow tube. The model FLC-2660 is available in different lengths in order that it can be matched to different pipe diameters, thus offering a wide range of applications.

A WIKA signal converter, either attached directly to the instrument or separated from it (e.g. model FLC-608), detects the potential difference between the electrodes, processes the signal to calculate the flow and manages communication with the external control systems.
