THIẾT BỊ ĐO MỨC API M4.01

PRODUCT SPECIFICATION

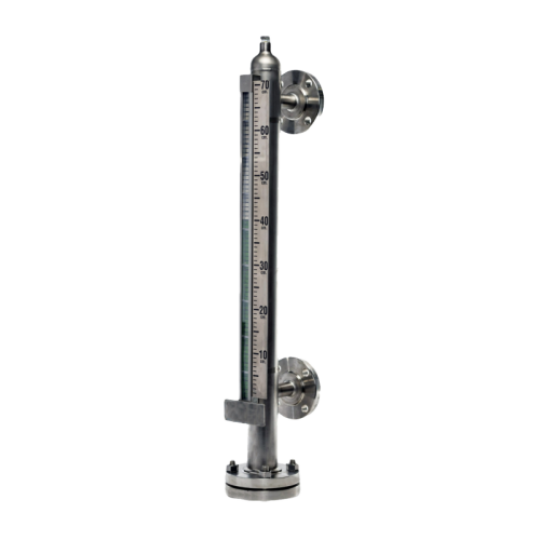

SIDE-SIDE VERSION [CODE : 1]
Mounting: Side-Side
Process connection: 1½” RF 150# as per ANSI B16.5
Vent connection: ½” NPT (F), plugged
Drain connection: ½” NPT (F), plugged
Center to Center Distance: 200 mm up to 6000 mm
TOP MOUNTING VERSION [CODE : 2]
Mounting: Top
Process connection: 1½” RF 150# as per ANSI B16.5
Vent connection: ½” NPT (F), plugged
Drain connection: ½” NPT (F), plugged
Center to Center Distance: 200 mm up to 3000 mm
TOP BOTTOM MOUNTING VERSION [CODE : 3]
Mounting: Top-Bottom
Process connection: 1½” RF 150# as per ANSI B16.5
Vent connection: ½” NPT (F), plugged
Drain connection: ½” NPT (F), plugged
Center to Center Distance: 200 mm up to 6000 mm
