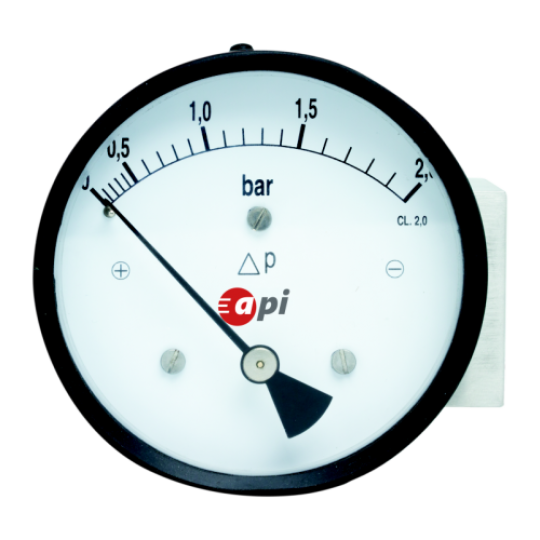

ĐỒNG HỒ ĐO CHÊNH ÁP API M2.06

PRODUCT SPECIFICATION
STANDARD VERSION [CODE: 1]
Dial size: DN63 / DN100 / DN150
Range: 0...0,075…4 bar
Mounting pattern: In-line entry / Bottom entry
Process connection: ¼" NPT (F) X 2 Nos.
Ingress protection: IP 65
Execution: Dry
Case & Ring material: SS 304 (Push fit)
Wetted parts: SS 316 body, Teflon, Ceramic Magnet & SS
spring
Dial: Aluminum, black graduation on white background
Pointer: Fix, aluminum, black powder coated
Window: Plain glass

MAIN FEATURES
Compact design
Migrated pressure chambers
Static pressure limit up to 100 bar
SUGGESTED APPLICATIONS
Filtration plants
Water applications
Duct & room pressure
Pumps & Compressors
Clean room applications
BASIC DESCRIPTION
Sensing element: Diaphragm
Accuracy: ±2.0% F. S. D. (Ascending)
Ambient temperature: -40…+65°C
Service temperature: 80°C max.
Pressure limits: Steady pressure and over pressure
up to FS value from LO to HI side
Static Pressure: 20 bar / 40 bar / 100 bar
