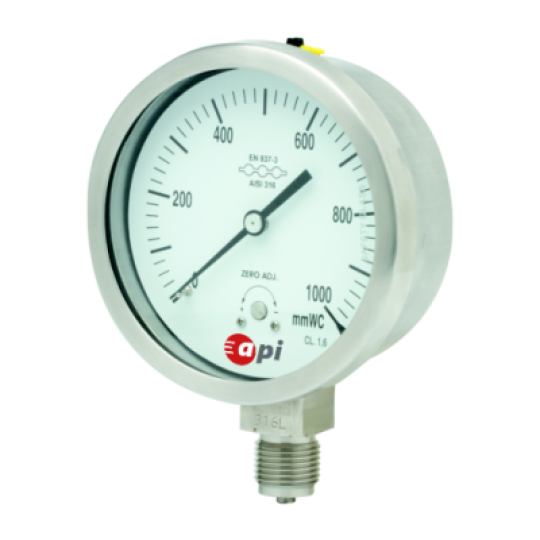

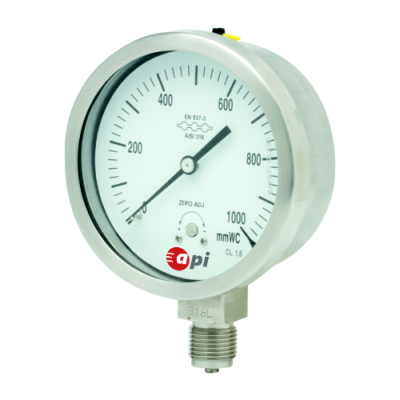

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG CAPSULE API M1.05

PRODUCT SPECIFICATION
STANDARD VERSION [CODE : 1]
Dial size: DN63 / DN100 / DN150
Range: -250...0...+6000 mmWC
Mounting pattern: Direct, Bottom connection
Process connection:½" NPT (M) /½” BSP (M)
Ingress protection: IP 54
Execution: Dry but fillable
Case & Ring material: AISI 304 SS (Bayonet type)
Capsule: AISI 316 SS
Shank: AISI 316L SS (Shank welded directly to case)
Movement mechanism: AISI 304 SS
Dial: Aluminum, black graduation on white background
Pointer: Fixed, aluminum, black powder coated with
zero adjustment on dial
Gaskets, Blow off disc & filling plug: Neoprene
Window: Shatterproof safety glass

MAIN FEATURES
Zero adjustment on dial
All SS measuring system
Socket-case, direct welded
Low pressure application (<0.6 bar)
SUGGESTED APPLICATION
Liquid & gaseous mediums
Corrosive environments
Oil & Gas applications
Chemical & Petrochemical
Food & Beverages
Nuclear power plants
BASIC DESCRIPTION
Sensing element: Bourdon Tube
(<100 bar: C - type, >100 bar: Helical)
Accuracy: ±1.6 F.S.D.
Ambient temperature: -40…+65°C
Service temperature: 120°C max
Steady pressure: Up to FS value
Fluctuating pressure: Up to 90 of FS value
Over-pressure: 1.30 x FS value ≤ 100 bar
1.15 x FS value ≥ 100 bar
Weld joints: TIG argon arc welding
