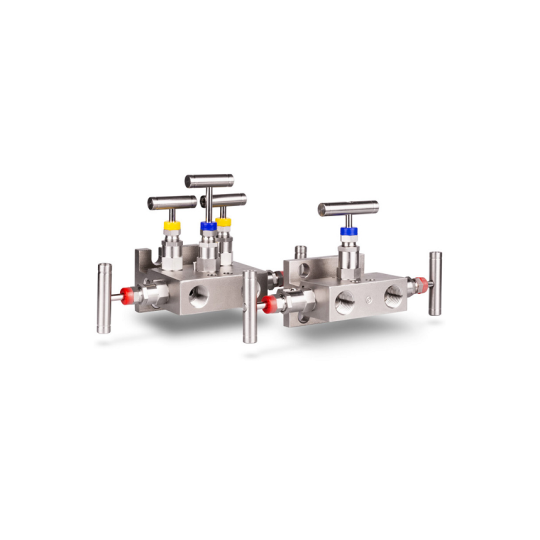

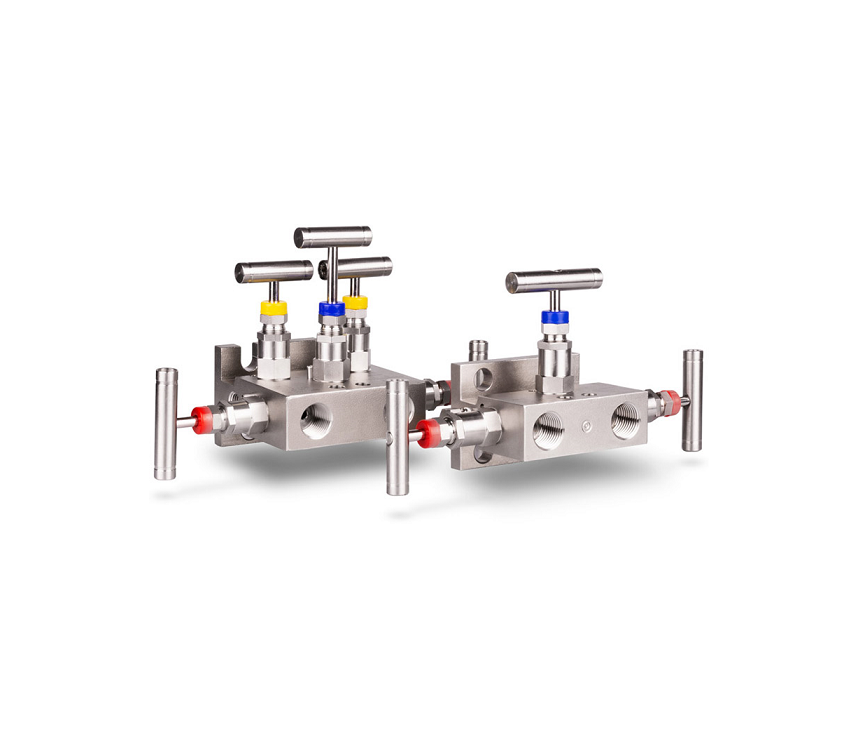

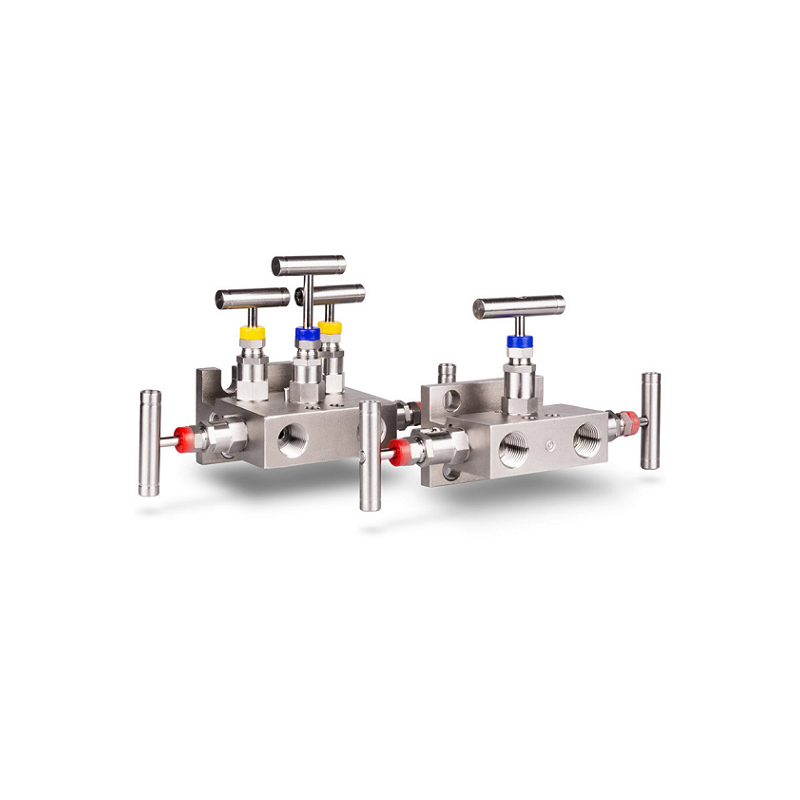

VALVE MANIFOLDS APLISENS MODEL VM-3 and VM-5

Application, construction
3-valve and 5-valve manifolds are used where relative pressure transmitters are installed. They enable essential operations to be performed on the transmitters, such as starting up a transmitter or setting the zero position in conditions of static or atmospheric pressure. The five-valve manifold also enables a calibrator to be conneced for metrological testing of the transmitter. The VM-3 and VM-5 have a modern lightweight construction. The high precision of manufacture enables individual valves to be opened and closed easily.
Technical parameters
Maximum pressure: 420 bar (according to the graph)
Pin packing PTFE or graphite
Body material: SS316
Connectors:
      to the installation – 1/2" NPT sockets
      to the transmitter – 54 mm spacing
Weight:
      VM-3 1.8 kg
      VM-5 2.54 kg
