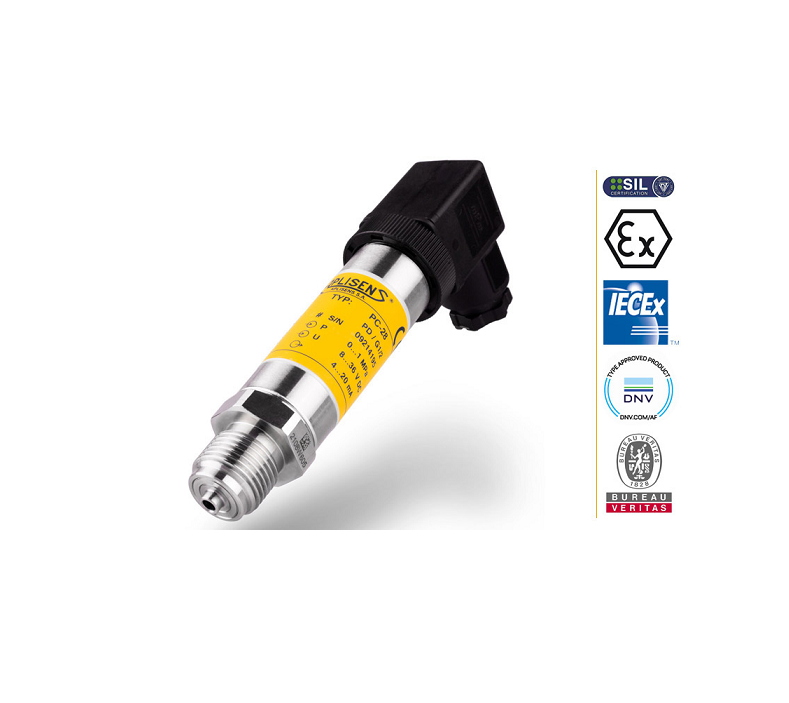

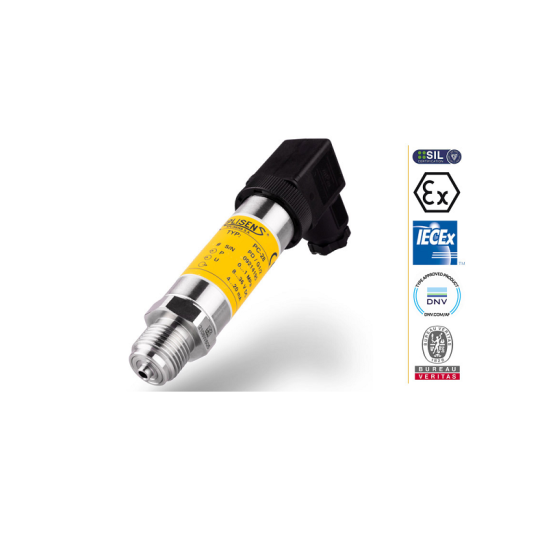

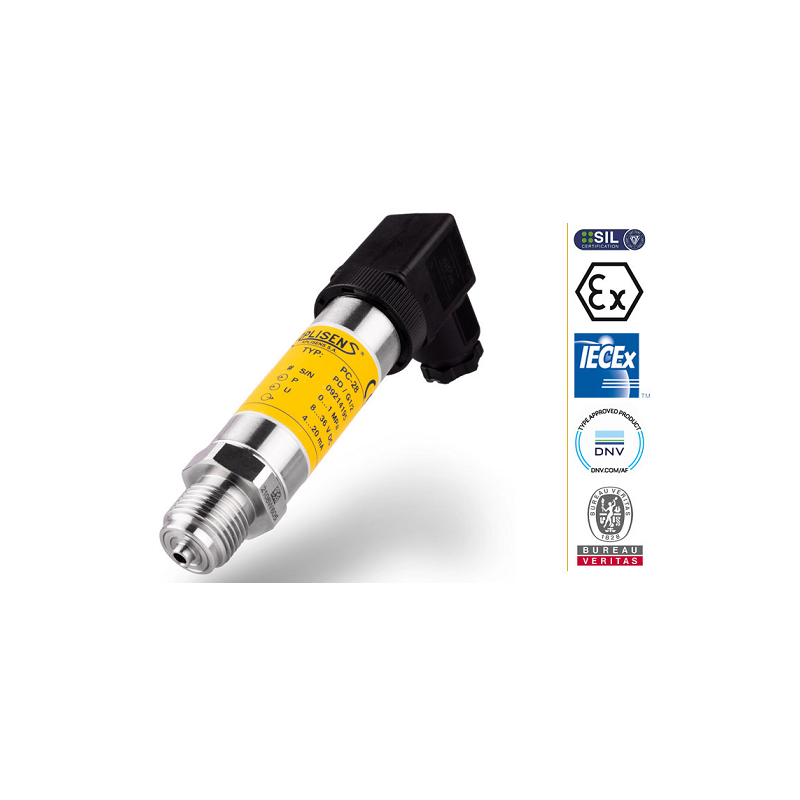

CẢM BIẾN ÁP SUẤT APLISENS MODEL PCE-28/EXD

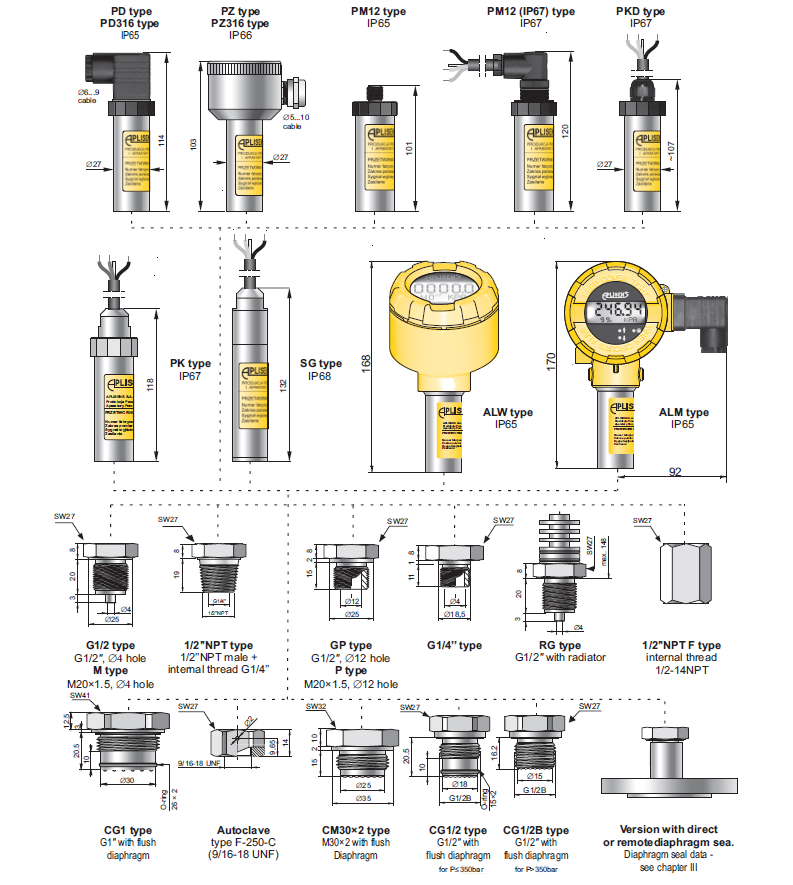

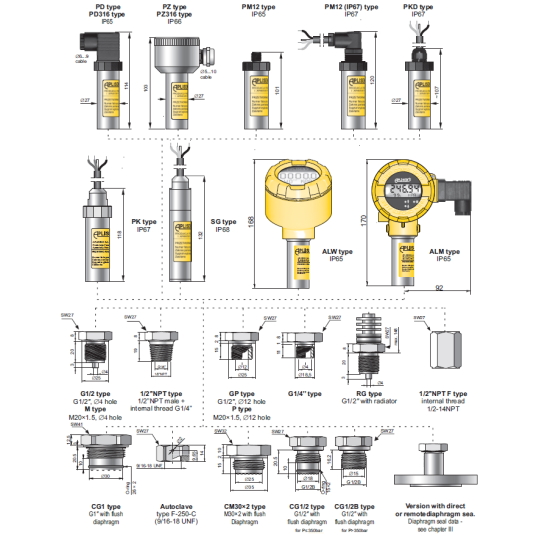

Application and construction

The PCE-28 pressure transmitter is applicable to the measurement of the pressure, underpressure and absolute pressure of gases, vapours and liquids.The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type of manometric liquid.The electronics is placed in a casing with a degree of protection from IP 66 to IP 68.

Measurements under explosion hazard: ATEX Explosion Proof version is available for taking measurements in zones under explosion hazard.

Technical data

Any range: from 0...25 mbar up to 0...1380 bar

Hysteresis, repeatability: 0,05%

Response time: < 120ms

Thermal compensation range: -10...80°C

Operating temperature range (ambient temp.):

      FL electrical connection -40...80°C*

      SGM electrical connection -40...65°C*

Medium temperature range: -40...130°C over 130°C – measurement with use an impulse line

Output signal: 4...20 mA, two wire transmission

Material of wetted parts: 316Lss, Hastelloy C 276

Material of casing: 304ss, 316Lss

Power supply: 8…30 V DC

      Version Safety: 10,5…36 V DC

Error due to supply voltage changes: 0,005%/ V

Pressure transmitter

      II 2G Ex db IIC T6/T5/T4 Gb

      II 2D Ex tb IIIC T85°C/T100°C/T120°C Db

      I M2 Ex db I Mb (only for PZ2 casing)

IECEx

      Ex db IIC T6/T5/T4 Gb

      Ex tb IIIC T85°C/T100°C/T120°C Db

      Ex db I Mb (only for PZ2 casing)
