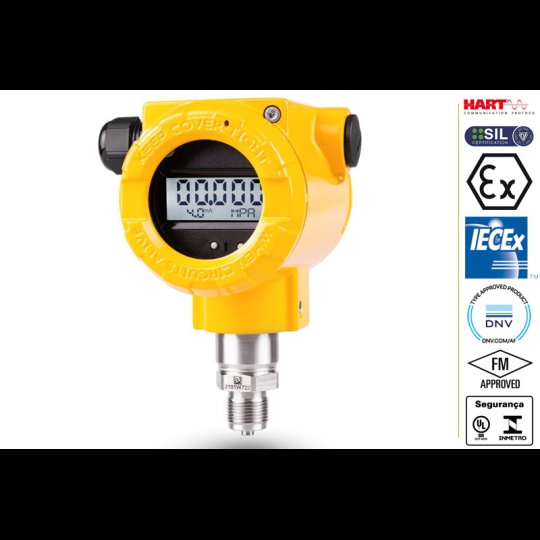

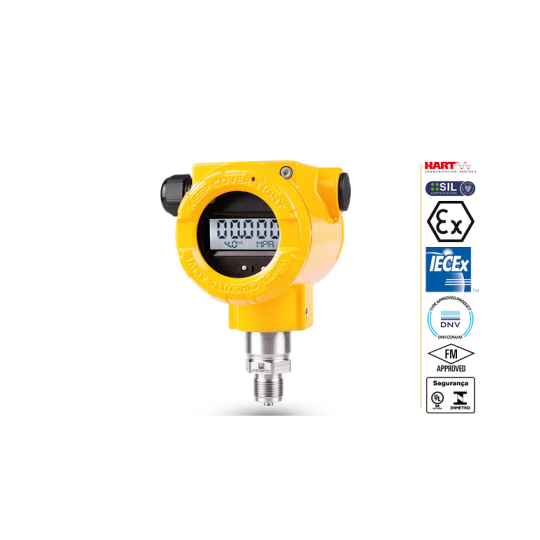

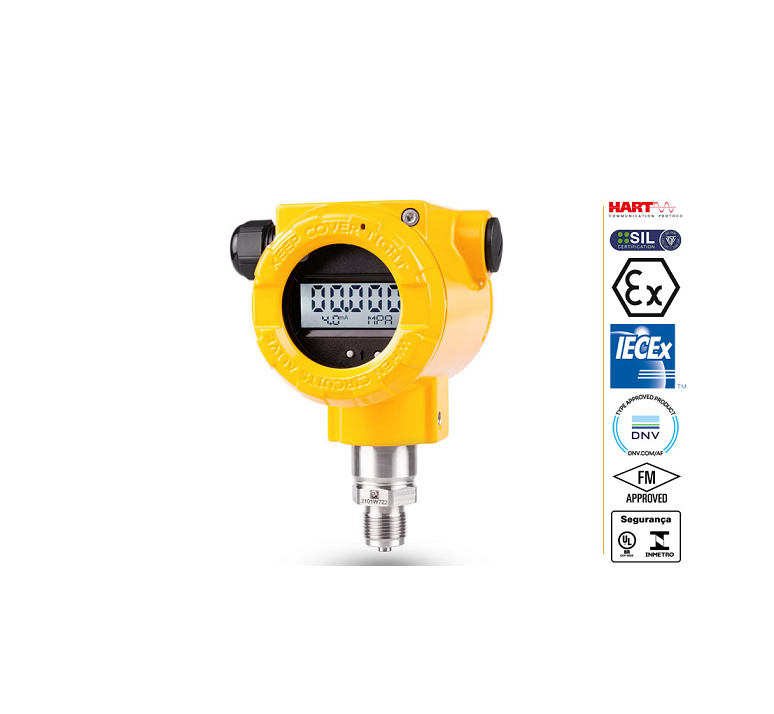

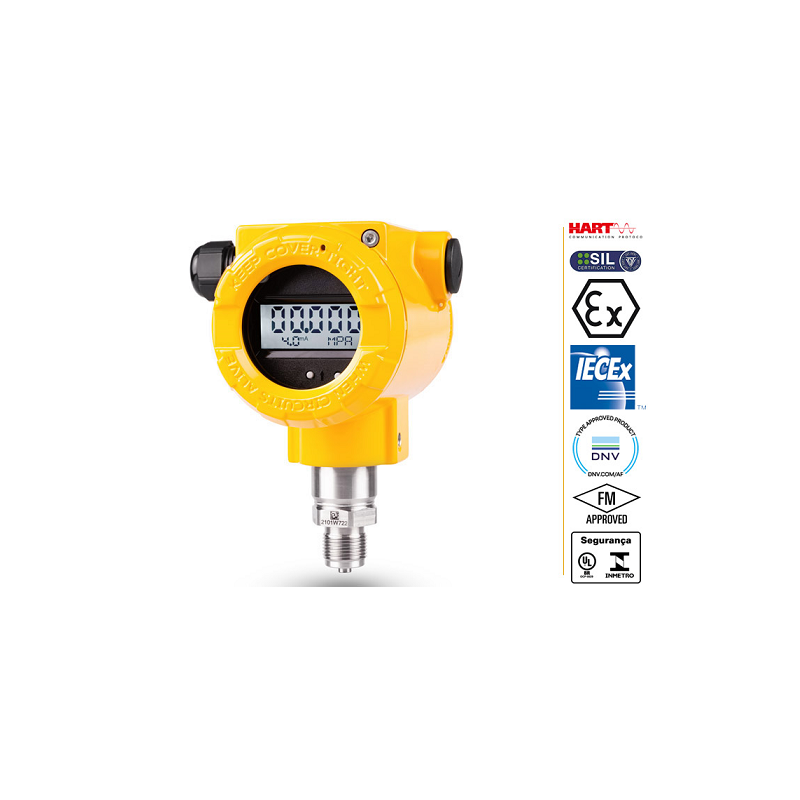

CẢM BIẾN ÁP SUẤT APLISENS MODEL APC-2000ALW

Application

Smart pressure transmitter APC-2000ALW MID is applicable to the measurement of the pressure and absolute pressure in application designed according to directive 2004/22/EC (MID), harmonized standard PN-EN12405-1:2005 + A2:2010 and

recommendation OIML R140:2007. Device subcomponent suitable for custody transfer measurement of gas with MID approval. Mechanical construction and installation of the transmitter enclosure shall comply with the transmitter APC-

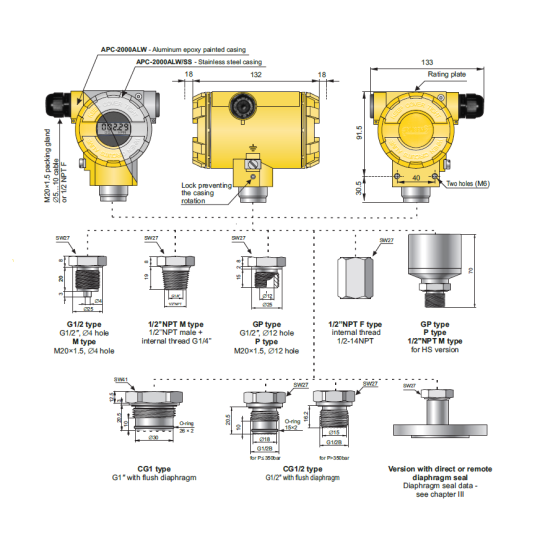

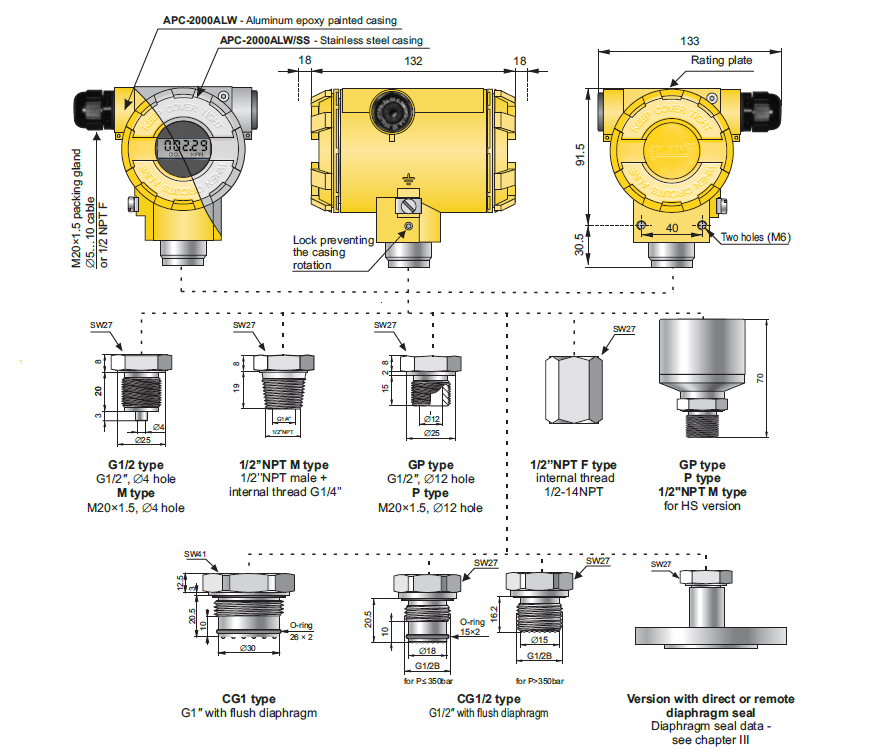

2000ALW are described on page I/ 3 of catalogue. Pressure transmitters APC-2000ALW MID are produced only with nominal ranges according to the table. Transmitter due to factory blockade of transmitter’s configuration cannot be configurable by user. Electrical connection of the transmitter is according to drawing on page I/ 3. Available are only terminals SIGNAL + and SIGNAL -.

Technical data

Accuracy Ł ±0,075% of the calibrated range

(Ł ±0,1% for range no. 19)

Special version: Ł ±0,05% of the calibrated range

(Ł ±0,04%, Ł ±0,025% on request)

Long-term stability Ł accuracy for 3 years

(for the nominal measuring range) or Ł 2 x accuracy for 5 years

HS version (ranges 3÷15): Ł accuracy for 6 years

or Ł 2 x accuracy for 10 years

Thermal error < ±0,05% (FSO) / 10°C

(0,1% for ranges no. 16÷19)

max. ±0.25% (FSO) in the whole compensation range

(0,4% for ranges no. 16÷19)

Thermal compensation range -25...80°C

Special version: -40...80°C

Additional electronic damping 0...60 s

Error due to supply voltage changes 0,002% (FSO) / V

Wetted parts and diaphragms: 316Lss, Hastelloy C 276, Au

Casing: Aluminum, 316SS

Material of window: hardened glass

Operating conditions

Operating temperature range (ambient temp.)

-40...85°C (Safety: -25...85°C)

Exia, IS version -40…80°C (Safety: -25...80°C)

Exd, XP version -40…75°C (Safety: -25...75°C)

Medium temperature range -40...120°C

Safety: -40…85°C

PED: -40…100°C over 120°C – measurement with use an impulse line or diaphragm seal
